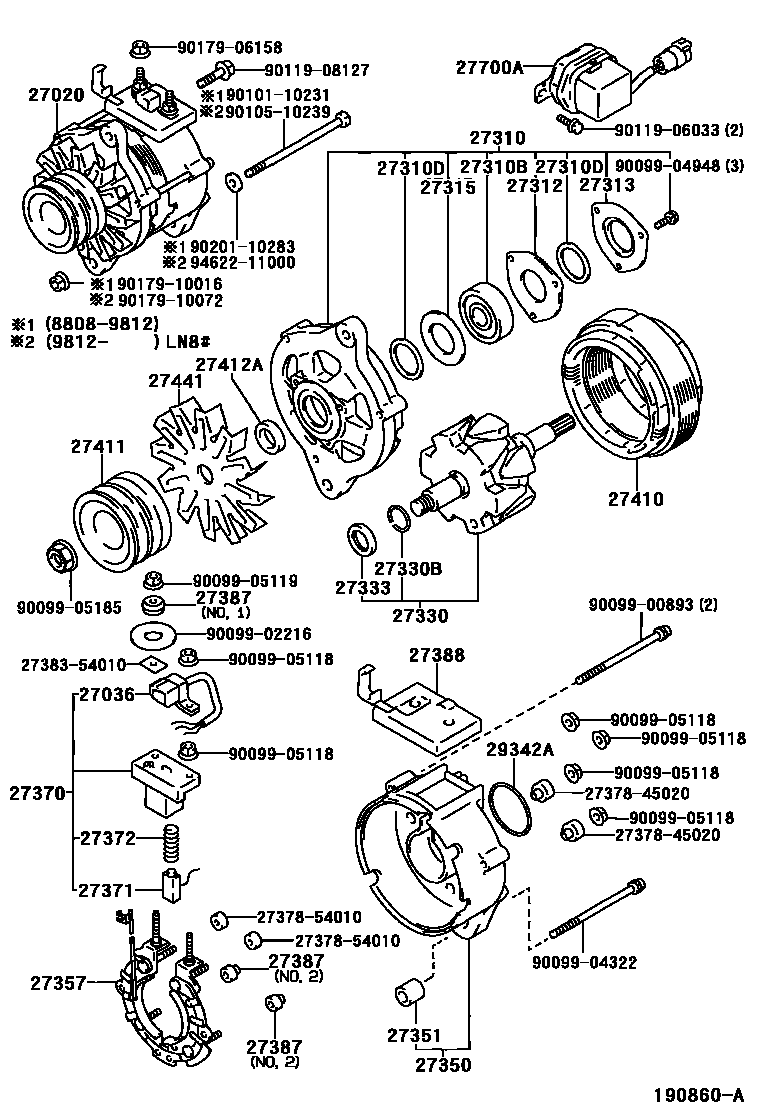

ALTERNATOR

0001 112V 40A,45A 0002 112V 40A 0004 112V 55A 0005 112V 55A 0006 112V 40A 0009 112V 45A 0010 112V 45A 0011 112V 60A 0012 112V 70A 0013 112V 55A

27020ALTERNATOR ASSY

main27020-18011i22R..RN8#,90198808-199011

12V 40A

sub27020-38120

main27020-34021i22R..RN125198907-198908

12V 55A

main27020-34022i22R..RN125198908-199308

12V 55A

main27020-35170i22R..RN8#,90199011-199408

12V 40A

sub27020-38121

main27020-54341i2L..LN8#,90198808-198908

12V 40A

main27020-54342i2L,3L..LN8#,90198908-199101

12V 40A

main27020-54343i2L,3L..LN8#..ARL,GEN,V199101-199202

12V 40A

sub27020-54344

main27020-54344i2L,3L..LN8#..ARL,GEN,V199202-200106

12V 40A

main27020-72050i2Y..YN80,85..TH199108-199308

12V 45A

main27020-72200i2Y,3Y,4Y..YN8#,92198808-199011

12V 40A

sub27020-72030

main27020-72230i2Y,3Y,4Y..YN8#,92199011-199504

12V 40A

sub27020-72260

main27060-35150i22RE..RN85199401-199909

12V 60A

main27060-35170i22R..RN8#,90199408-199909

12V 55A

main27060-54340i5L..LN200200106-200412

12V 70A

main27060-72330i2Y,3Y,4Y..YN8#,92..ARL,GEN,V199408-199909

12V 45A

main27060-75290i3RZFE..RZN200200106-200412

12V 55A

27036TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR

main27036-54250i2L,3L..LN8#..ARL,GEN,V199108-200106

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-18010i22R..RN8#,90198808-199408

main27310-34050i22R..RN125198907-199308

main27310-35120i22R#..RN8#,90199401-199909

main27310-54110i2L,3L..LN8#..ARL,GEN,V198808-199305

sub27310-54111

main27310-54520i5L..LN200200106-200412

main27310-72030i2Y,3Y,4Y..YN8#,9#198808-199504

main27310-72360i2Y,3Y,4Y..YN8#,92..ARL,GEN,V199408-199909

main27310-75240i3RZFE..RZN200200106-200412

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i22R..RN125,8#,90198808-199408

main90099-10137i2L,3L..LN8#..ARL,GEN,V198808-200106

main90099-10142i2Y..YN80,85,90..TH198808-199504

sub90099-10223

main90099-10165i5L..LN200200106-200412

main90099-10198i2Y,3Y,4Y..YN8#,92..ARL,GEN,V199408-199909

sub90099-10229

main90099-10199i22R#..RN8#,90199401-200412

27310DWASHER, FELT

main90099-02209i2L,3L..LN8#,90198808-200106

27312PLATE, RETAINER

main27312-57060i2L,3L..LN8#..ARL,GEN,V198808-200106

main27312-64130i5L..LN200200106-200412

main27312-72100i22R#..RN8#,90199401-200412

main27312-72120i2Y,3Y,4Y..YN8#,92..ARL,GEN,V199408-199909

27313COVER, ALTERNATOR FELT, INNER NO.2

main27313-57060i2L,3L..LN8#,90198808-200106

27315COVER, ALTERNATOR FELT, INNER NO.1

main27315-57060i2L,3L..LN8#,90198808-200106

27330ROTOR ASSY, ALTERNATOR

main27330-11160i2Y,3Y,4Y..YN8#,92..ARL,GEN,V199408-199909

main27330-11250i22R..RN8#,90199701-199909

main27330-26050i22R,2Y,3Y,4Y..RN8#,90,YN8#,92198808-199504

main27330-45020i2Y..YN80,85..TH199108-199308

main27330-56140i2L,3L..LN8#,90198808-199101

sub27330-54200

main27330-56141i2L,3L..LN8#,90199101-200106

main27330-63010i22R..RN125198907-199308

main27330-64190i5L..LN200200106-200412

main27330-64570i22RE..RN85199701-199909

main27330-72101i22RE..RN85199401-199701

main27330-75240i3RZFE..RZN200200106-200412

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i22R,2Y,3Y,4Y..RN8#,90,YN8#,9#198808-199504

main90099-07103i2L,3L..LN8#,90198808-200106

27333COLLAR, SPACE(FOR ALTERNATOR ROTOR)

main27333-57060i2L,3L..LN8#,90198808-200106

27350FRAME ASSY, RECTIFIER END

main27350-54190i2L,3L..LN8#,90198808-200106

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#198808-199504

main27351-56013i2L,3L..LN8#,90198808-200106

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-11160i2Y,3Y,4Y..YN8#,92..ARL,GEN,V199408-199909

main27357-13360i22R..RN8#,90199701-199909

main27357-16380i22RE..RN85199701-199909

main27357-54190i2L,3L..LN8#..ARL,GEN,V198808-200106

main27357-55080i5L..LN200200106-200412

main27357-63020i22RE..RN85199401-199701

main27357-63060i22R..RN8#,90199408-199701

main27357-67100i3RZFE..RZN200200106-200412

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-35060i22R#,2Y,3Y,4Y..RN8#,90,YN8#,92..ARL,GEN,V199401-200412

main27370-54250i2L,3L..LN8#..ARL,GEN,V198808-200106

main27370-75060i5L..LN200200106-200412

27371BRUSH, ALTERNATOR

main27371-31011i22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#198808-199504

main27371-54412i2L,3L..LN8#,90199106-200106

main27371-56070i2L,3L..LN8#,90198808-199106

sub27371-54412

main27371-70300i22R#,2Y,3Y,4Y..RN8#,90,YN8#,92..ARL,GEN,V199401-199909

27372SPRING, ALTERNATOR BRUSH

main27372-31011i2Y..YN80,85,90..TH198808-199504

main27372-56070i2L,3L..LN8#..ARL,GEN,V198808-200106

main27372-63020i22R#,2Y,3Y,4Y..RN8#,90,YN8#,92..ARL,GEN,V199401-199909

sub27372-87501

main27372-87501i3RZFE..RZN200200106

27387INSULATOR, TERMINAL

main27387-10080i2Y,3Y,4Y..YN8#,92..ARL,GEN,V199408-199708

main27387-34022i2Y..YN80,85,90..TH198908-199504

NO.2

main27387-42021i5L..LN200200106-200412

main27387-45022i22R..RN125,8#,90198808-199308

main27387-45110i2Y..YN80,85,90..TH198808-199504

NO.1

main27387-54010i2L,3L..LN8#,90198808-200106

NO.2

main27387-54310i2L,3L..LN8#..ARL,GEN,V198808-200106

NO.1

main27387-70170i22RE..RN85199401-199709

main27387-70171i3RZFE..RZN200200106-200412

27388COVER, ALTERNATOR BRUSH

main27388-42010i5L..LN200200106-200412

main27388-54341i2L..LN8#,90198808-198908

main27388-54342i2L,3L..LN8#..ARL,GEN,V198908-200106

27410STATOR ASSY, ALTERNATOR

main27410-38120i2Y..YN80,85,90..TH198808-199504

main27410-43040i22R..RN125198907-199308

main27410-54190i2L,3L..LN8#,90198808-199808

sub27410-54340

main27410-54340i2L,3L..LN8#199808-200106

27411PULLEY, ALTERNATOR

main27411-16150i3RZFE..RZN200200106

main27411-31042i22R..RN125,8#,90198808-199408

main27411-35062i22RE..RN85199401-199909

main27411-54350i2L,3L..LN8#..ARL,GEN,V198808-200106

main27411-72040i2Y..YN80,85,90..TH198808-199504

main27411-72120i2Y,3Y,4Y..YN8#,92..ARL,GEN,V199408-199909

27412COLLAR, SPACER(FOR ALTERNATOR PULLEY)

main27412-44030i22R..RN125,8#,90198808-199408

sub27412-44031

27412ACOLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)

main27412-16030i2Y..YN80,85,90..TH198808-199504

main27412-31040i22R..RN125,8#,90198808-199408

main27412-35100i22R#..RN8#,90199401-199909

main27412-57060i2L,3L..LN8#,90198808-200106

27441FAN, ALTERNATOR

main27441-34030i22R,2Y,3Y,4Y..RN125,8#,90,YN8#,9#198808-199504

main27441-56090i2L,3L..LN8#,90198808-200106

27700AREGULATOR ASSY, GENERATOR

main27700-35040i22RE..RN85199401-199909

main27700-50030i5L,3RZFE..LN200,RZN200200106-200412

main27700-54090i3L..LN86199805-200106

sub27700-72030

main27700-63010i2Y..YN85..GEN,TH;2L,3L,2Y,4Y..LN8#,9#,YN80,9#199207-199909

main27700-66030i3Y..YN86;2Y,3Y..YN81,85..ARL,V199408-199708

main27700-66040i22R..RN8#,90199408-199909

sub27700-75020

main27700-72030i22R,2L,3L,2Y,3Y,4Y..LN8#,90,RN125,8#,90,YN8#,92198808-199207

sub27700-63010

29342APACKING, VACUUM PUMP

main90099-14055i2L,3L..LN8#,90198808-200106

2737845020INSULATOR, ALTERNATOR, NO.1

main27378-45020

2737854010INSULATOR, ALTERNATOR, NO.1

main27378-54010

2738354010WASHER, ALTERNATER TERMINAL INSULATOR, NO.1

main27383-54010

9009900893

main90099-00893

9009902216

main90099-02216

9009904322

main90099-04322

9009904948

main90099-04948

9009905118

main90099-05118

9009905119

main90099-05119

9009905185

main90099-05185

9010110231

main90101-10231

9010510239

main90105-10239

9011906033

main90119-06033

9011908127

main90119-08127

9017906158

main90179-06158

9017910016

main90179-10016

9017910072

main90179-10072

9020110283

main90201-10283

9462211000

main94622-11000
