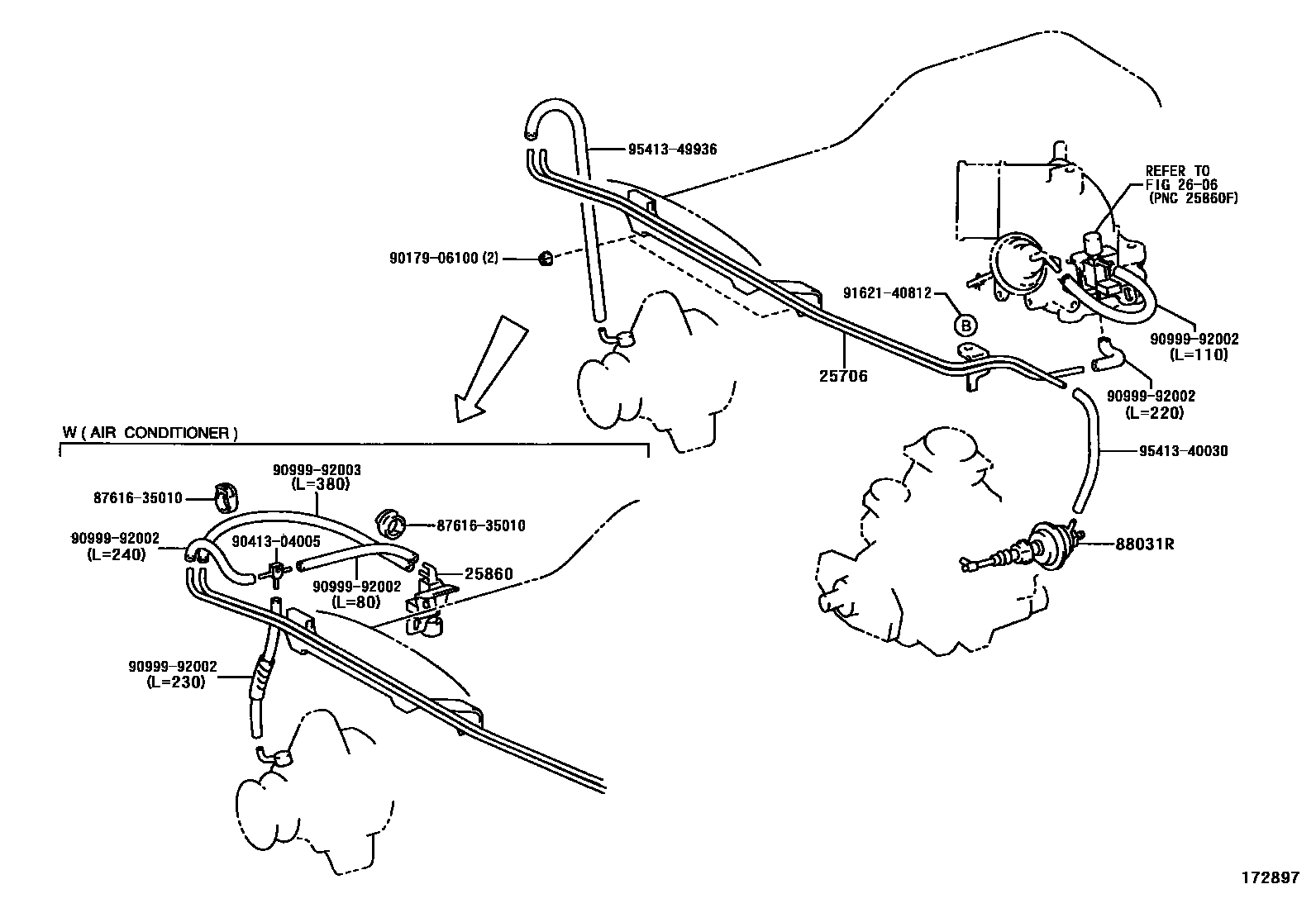

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0017 1 0018 1 0019 1 0020 1

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-54041i5L..LN200200106-200412

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-54330i5L..LN200..TW1200106

main25860-73040i2Y,4Y..YN80,85,92..GEN,TH199108-199401

main25860-75240i3RZFE..RZN200200106

2606VENTURI

→ Go to FIG 26-06

88031RACTUATOR SET, IDLE-UP

main88031-35130iLN200..TW1200106-200407

main88031-35131iLN200..TW1200407

8761635010CLAMP, COOLING UNIT CASE

main87616-35010

9017906100

main90179-06100

9041304005

main90413-04005

9099992002

main90999-92002

9099992003

main90999-92003

9162140812

main91621-40812

9541340030

main95413-40030

9541349936

main95413-49936

12 parts on this diagram · 18 diagrams in section
