V-BELT

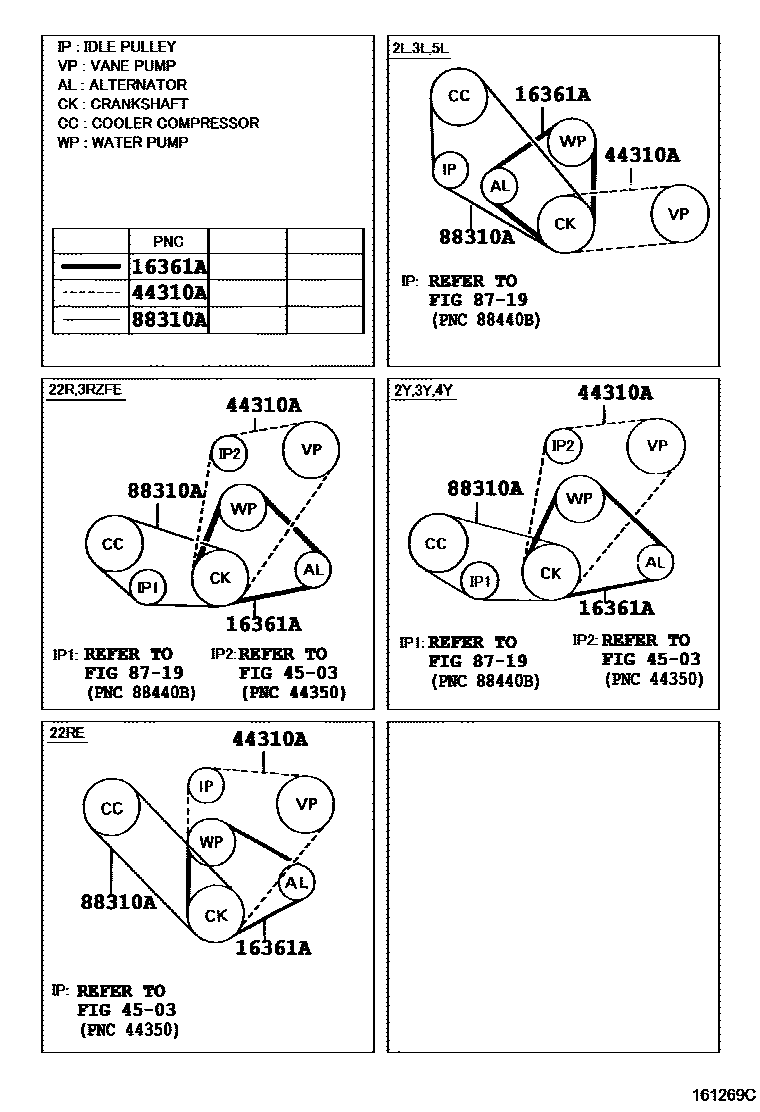

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02209i198808-199604

main90916-02211i200106-200412

main90916-02336i200106-200412

main99331-10870i198808-199909

main99364-50830i198808-199011

main99364-70830i199011-199402

main99364-80830i199408-199504

main99365-80820i199408-199909

44310ABELT, V(FOR VANE PUMP)

main99332-00830i199608-199909

main99332-01040i199108-199503

main99332-01055i199508-199608

main99332-10865i199511-199708

L=865,BRAZIL SPEC

main99332-11110i199511-199909

main99332-11120i199503-199511

main99332-60865i198808-199108

BANDO

main99364-81100i200106

L=1100

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00860i198808-199108

main99332-00870i199001-199108

main99332-01260i199008-199108

L=1260

main99332-01265i198808-199008

L=1265

main99332-10855i199408-199909

L=855

main99332-10860i199108-199708

L=860

main99332-10865i198808-199008

main99332-10870i198808-199108

L=870

main99332-11205i199408-199510

W(POWER STEERING & TACHO METER) & BRAZIL SPEC; W(TACHO METER) & BRAZIL SPEC

main99332-11260i199510-199909

main99332-11265i198808-198906

5 parts on this diagram · 1 diagram in section
