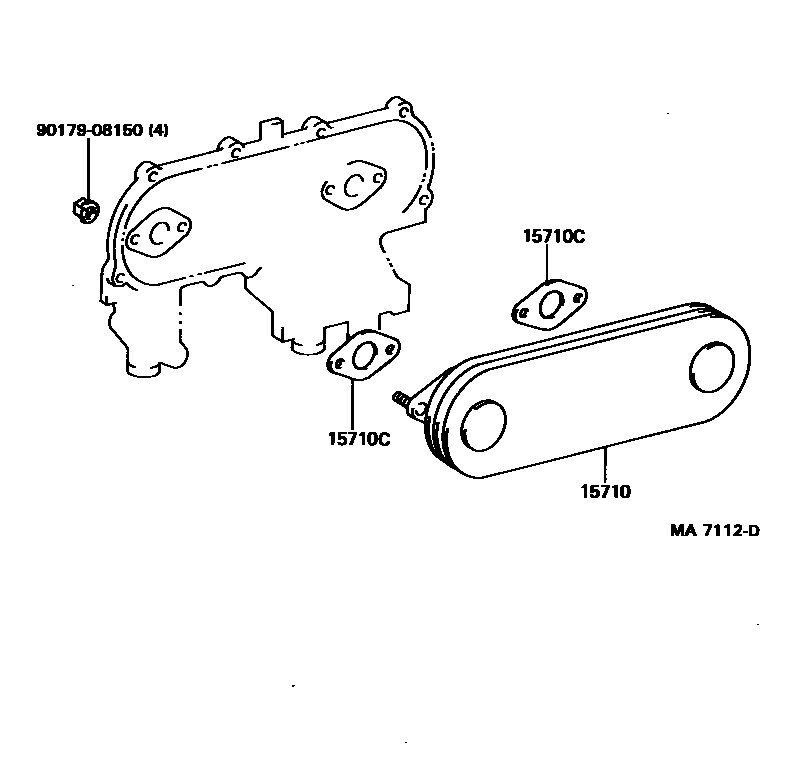

ENGINE OIL COOLER

0001 1 0002 1

15710COOLER ASSY, OIL

main15710-54030i2L..LN80198808-198908

main15710-54050i2L..LN85,90198808-198908

main15710-75011i3RZFE..RZN200200106-200412

15710CGASKET(FOR OIL COOLER)

main15785-54010×2i2L,3L..LN8#,9#198808-200106

9017908150

main90179-08150

3 parts on this diagram · 2 diagrams in section
