CYLINDER HEAD

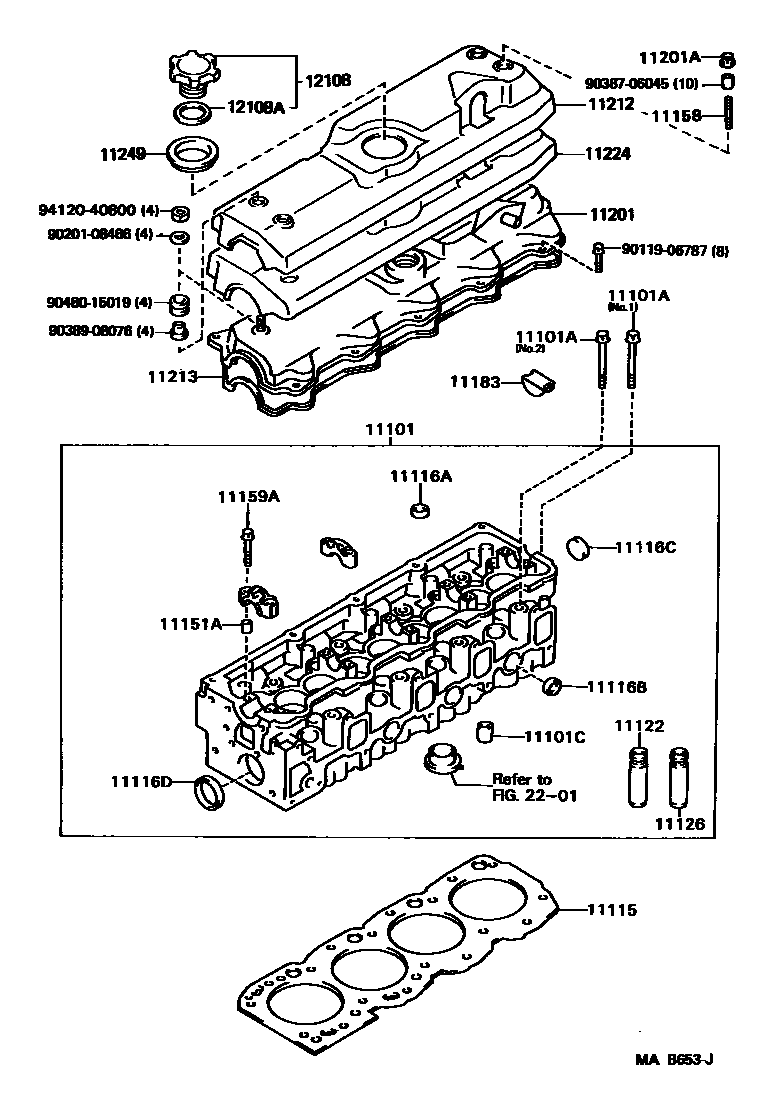

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11101HEAD SUB-ASSY, CYLINDER

main11101-35050i22R..RN90..ARL198808-199708

main11101-35060i22RE..RN85198808-199909

sub11101-35080

main11101-35080i22R..RN8#,90..V199401-199607

OMAN SPEC

main11101-35080i22R..RN8#;22R..RN90..V199607-199909

main11101-54110i2L..LN80,85,90198808-199206

sub11101-54111

main11101-54111i2L..LN80,85,90199206-199909

main11101-54130i3L..LN81,86199008-199206

sub11101-54131

main11101-54131i3L..LN81,86,91199206-200106

main11101-54150i5L..LN200200106-200412

main11101-71010i2Y..YN80,85198808-199212

main11101-71011i2Y..YN80,85,90199212-199909

main11101-73020i3Y,4Y..YN81,86,87,92198808-199212

main11101-73021i3Y,4Y..YN81,86,92199212-199708

main11101-79276i3RZFE..RZN200200106

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12056i2Y,3Y,4Y..YN8#,9#198808-199909

main90105-12092i22R#..RN125,8#,90198808-199909

main90910-02080i5L..LN200198808-200412

NO.1

main90910-02081i2L,3L..LN8#,9#198808-200412

NO.2

main90910-02091i3RZFE..RZN200200106-200412

sub90910-02187

11101CTUBE(FOR CYLINDER HEAD)

main90440-15003i2L,3L..LN8#,9#198808-200412

11115GASKET, CYLINDER HEAD

main11115-35020i22R..RN125,8#..V198808-199102

sub11115-35021

main11115-35021i22R..RN90..V;22R..RN125,8#199102-199310

sub11115-35022

main11115-35022i22R..RN8#;22R..RN90..V199310-199909

main11115-35060i22RE..RN85;22R..RN90..ARL198808-199909

main11115-54070-B0i3L..LN81,86199008-199111

MARK B,MARK B,REFER R/M

sub11115-54070

sub11115-54071

main11115-54070-D0i3L..LN81,86199008-199111

MARK D,MARK D,REFER R/M

sub11115-54070

sub11115-54071

main11115-54070-F0i3L..LN81,86199008-199111

MARK F,MARK F,REFER R/M

sub11115-54070

sub11115-54071

main11115-54071-B0i3L..LN81,86199111-199207

MARK B,MARK B,REFER R/M

sub11115-54072

main11115-54071-D0i3L..LN81,86199111-199207

MARK D,MARK D,REFER R/M

sub11115-54072

main11115-54071-F0i3L..LN81,86199111-199207

MARK F,MARK F,REFER R/M

sub11115-54072

main11115-54072-B0i3L..LN81,86199207-199603

MARK B,MARK B,REFER R/M

sub11115-54073

main11115-54072-D0i3L..LN81,86199207-199603

MARK D,MARK D,REFER R/M

sub11115-54073

main11115-54072-F0i3L..LN81,86199207-199603

MARK F,MARK F,REFER R/M

sub11115-54073

main11115-54073-B0i3L..LN81,86,91199603-200106

MARK B,MARK B,REFER R/M

main11115-54073-D0i3L..LN81,86,91199603-200106

MARK D,MARK D,REFER R/M

main11115-54073-F0i3L..LN81,86,91199603-200106

MARK F,MARK F,REFER R/M

main11115-54080-B0i2L..LN8#,90198808-198908

MARK B,MARK B,REFER R/M

sub11115-54081

main11115-54080-D0i2L..LN8#,90198808-198908

MARK D,MARK D,REFER R/M

sub11115-54081

main11115-54080-F0i2L..LN8#,90198808-198908

MARK F,MARK F,REFER R/M

sub11115-54081

main11115-54081-B0i2L..LN80,85,90198908-199111

MARK B,MARK B,REFER R/M

sub11115-54082

main11115-54081-D0i2L..LN80,85,90198908-199111

MARK D,MARK D,REFER R/M

sub11115-54082

main11115-54081-F0i2L..LN80,85,90198908-199111

MARK F,MARK F,REFER R/M

sub11115-54082

main11115-54082-B0i2L..LN80,85,90199111-199204

MARK B,MARK B,REFER R/M

sub11115-54083

main11115-54082-D0i2L..LN80,85,90199111-199204

MARK D,MARK D,REFER R/M

sub11115-54083

main11115-54082-F0i2L..LN80,85,90199111-199204

MARK F,MARK F,REFER R/M

sub11115-54083

main11115-54083-B0i2L..LN80,85,90199204-199508

MARK B,MARK B,REFER R/M

sub11115-54084

main11115-54083-D0i2L..LN80,85,90199204-199508

MARK D,MARK D,REFER R/M

sub11115-54084

main11115-54083-F0i2L..LN80,85,90199204-199508

MARK F,MARK F,REFER R/M

sub11115-54084

main11115-54084-B0i2L..LN80,85,90199508-199909

MARK B,MARK B,REFER R/M

main11115-54084-D0i2L..LN80,85,90199508-199909

MARK D,MARK D,REFER R/M

main11115-54084-F0i2L..LN80,85,90199508-199909

MARK F,MARK F,REFER R/M

main11115-54121-B0i5L..LN200200106-200112

MARK B,MARK B,REFER R/M

sub11115-54130

main11115-54121-D0i5L..LN200200106-200112

MARK D,MARK D,REFER R/M

sub11115-54130

main11115-54121-F0i5L..LN200200106-200112

MARK F,MARK F,REFER R/M

sub11115-54130

main11115-54130-B0i5L..LN200200112-200412

MARK B,MARK B,REFER R/M

sub11115-54130

main11115-54130-D0i5L..LN200200112-200412

MARK D,MARK D,REFER R/M

sub11115-54130

main11115-54130-F0i5L..LN200200112-200412

MARK F,MARK F,REFER R/M

sub11115-54130

main11115-71011i2Y,3Y..YN80,81,85,86198808-199008

sub11115-73040

main11115-73010i4Y..YN87,92198808-199008

sub11115-73030

main11115-73030i4Y..YN87,92199008-199708

main11115-73040i2Y,3Y..YN80,81,85,86199008-199308

sub11115-73041

main11115-73041i2Y,3Y..YN8#,90199308-199708

main11115-73050i2Y..YN80,85199511-199909

main11115-75031i3RZFE..RZN200200106-200412

11116APLUG, TIGHT, NO.1

main90331-08004i2L..LN8#,90198808-198907

main96411-62800i3RZFE..RZN200200106-200412

11116BPLUG, TIGHT, NO.2

main96411-42500i2L,3L..LN8#,9#198808-199805

main96411-62500i2L,3L..LN8#,9#199305-200412

11116CPLUG, TIGHT, NO.3

main96411-43000i2L,3L..LN8#,9#198808-199805

main96411-63000i2L,3L..LN8#,90199305-200412

11116DPLUG, TIGHT, NO.4

main96411-44500i2L,3L..LN8#,90198808-199805

main96411-64500i2L,3L..LN8#,90199305-200412

11122BUSH, INTAKE VALVE GUIDE

main11122-16010i3RZFE..RZN200200106-200401

STD

sub11122-16020

main11122-35020i22R#..RN125,8#,90198808-199909

STD

main11122-54020i5L..LN200198808-200412

STD

sub11122-17020

main11122-71020i2Y,3Y,4Y..YN8#,9#198808-199909

STD

main11123-16010i3RZFE..RZN200200106-200401

O/S 0.05

main11123-16020i3RZFE..RZN200200401

O/S 0.05

main11123-35020i22R#..RN125,8#,90198808-199909

O/S 0.05

main11123-54020i2L,3L..LN8#,9#198808-200412

O/S 0.05

sub11123-17020

main11123-71020i2Y,3Y,4Y..YN8#,9#198808-199909

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-38021i22R#..RN125,8#,90198808-199909

STD

main11122-54020i2L,3L..LN8#,9#198808-200412

STD

sub11122-17020

main11123-16020i3RZFE..RZN200200401

O/S 0.05

main11123-38021i22R#..RN125,8#,90198808-199909

O/S 0.05

main11123-54020i2L,3L..LN8#,9#198808-200412

O/S 0.05

sub11123-17020

main11126-50050i3RZFE..RZN200200106

STD

main11126-71020i2Y,3Y,4Y..YN8#,9#198808-199909

STD

main11127-50050i3RZFE..RZN200200106-200401

O/S 0.05

main11127-71020i2Y,3Y,4Y..YN8#,9#198808-199909

O/S 0.05

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-10006i3RZFE..RZN200200106-200412

L=7,OD=10

main90253-11021i3L..LN81,86198808-200412

L=8,OD=11

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main90116-06089i2L,3L..LN8#,90198808-199505

S=9 & 9,L=26

main92122-80616i2L,3L..LN8#,9#199505-200412

S=9 & 9,L=25

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90105-08166i2L,3L..LN8#,9#198808-200412

main90119-07009i3RZFE..RZN200200106-200412

11183PLUG, SEMICIRCULAR

main11183-38010i22R#..RN125,8#,90198808-199909

main11183-50010i3RZFE..RZN200200106-200412

main11183-54020i2L,3L..LN8#,9#198808-200412

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-35031i22R..RN125,8#,90198808-199208

sub11201-35032

main11201-35032i22R#..RN125,8#,90199208-199909

main11201-71011i2Y,3Y,4Y..YN8#,9#199208-199512

sub11201-71012

main11201-71012i2Y,3Y,4Y..YN8#,92199512-199909

main11201-75020i3RZFE..RZN200200106-200412

main11201-79035i2Y,3Y,4Y..YN8#,92198808-199208

sub11201-71011

sub11213-71020

sub90210-09001

main11210-54031i3L..LN86..ARL199208-199704

sub11210-54032

main11210-54032i3L..LN86..ARL199704-199708

main11210-54040i2L,3L..LN8#,90198808-199203

sub11210-54041

main11210-54041i2L,3L..LN8#,9#..GEN,TH,V199203-199704

sub11210-54042

main11210-54042i5L..LN200199704-200412

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08007i2Y,3Y,4Y..YN8#,9#198808-199909

main90176-08041i22R#..RN125,8#,90198808-199909

main90179-06171i2L,3L..LN8#,90198808-199505

main90179-06319i2L,3L..LN8#,9#199505-200412

11212COVER, CYLINDER HEAD, NO.2

main11212-54030i3L..LN86..ARL199208-199708

11213GASKET, CYLINDER HEAD COVER

main11213-35010i22R#..RN125,8#,90198808-199909

main11213-54050i2L,3L..LN8#,9#198808-200412

main11213-71020i2Y,3Y,4Y..YN8#,9#198808-199909

main11213-75030i3RZFE..RZN200200106-200412

11224SILENCER, CYLINDER HEAD COVER

main11224-54030i3L..LN86..ARL199208-199708

11249GROMMET, CYLINDER HEAD COVER

main11249-54020i3L..LN86..ARL199208-199309

12108CAP SUB-ASSY, OIL FILLER

main12180-13030i22R..RN125,8#,90198808-199003

sub12180-55010

main12180-61010i2Y,3Y,4Y..YN8#,92198808-199003

sub12180-70020

main12180-62010i22R..RN125,8#,90199003-199107

sub12180-62011

main12180-62011i22R..RN125,8#,90199107-199312

sub12180-65011

main12180-65011i22R#..RN8#,90199312-200412

main12180-70020i2L,3L..LN8#,9#198808-200312

main12180-73010i2Y,3Y,4Y..YN8#,92199011-199103

sub12180-73011

main12180-73011i2Y,3Y,4Y..YN8#,9#199103-200412

main12180-75010i2Y,3Y,4Y..YN8#,92199003-199011

sub12180-73011

12108AGASKET(FOR OIL FILLER CAP)

main12195-70010i2L,3L..LN8#,9#198808-200312

main12195-71020i2Y,3Y,4Y..YN8#,92198808-199003

main12195-73010i2Y,3Y,4Y..YN8#,9#199011-200412

main90430-37140i22R#..RN125,8#,90198808-200412

2201

9011906787

main90119-06787

9020108466

main90201-08466

9038706045

main90387-06045

9038908076

main90389-08076

9048015019

main90480-15019

9412040800

main94120-40800

29 parts on this diagram · 6 diagrams in section
