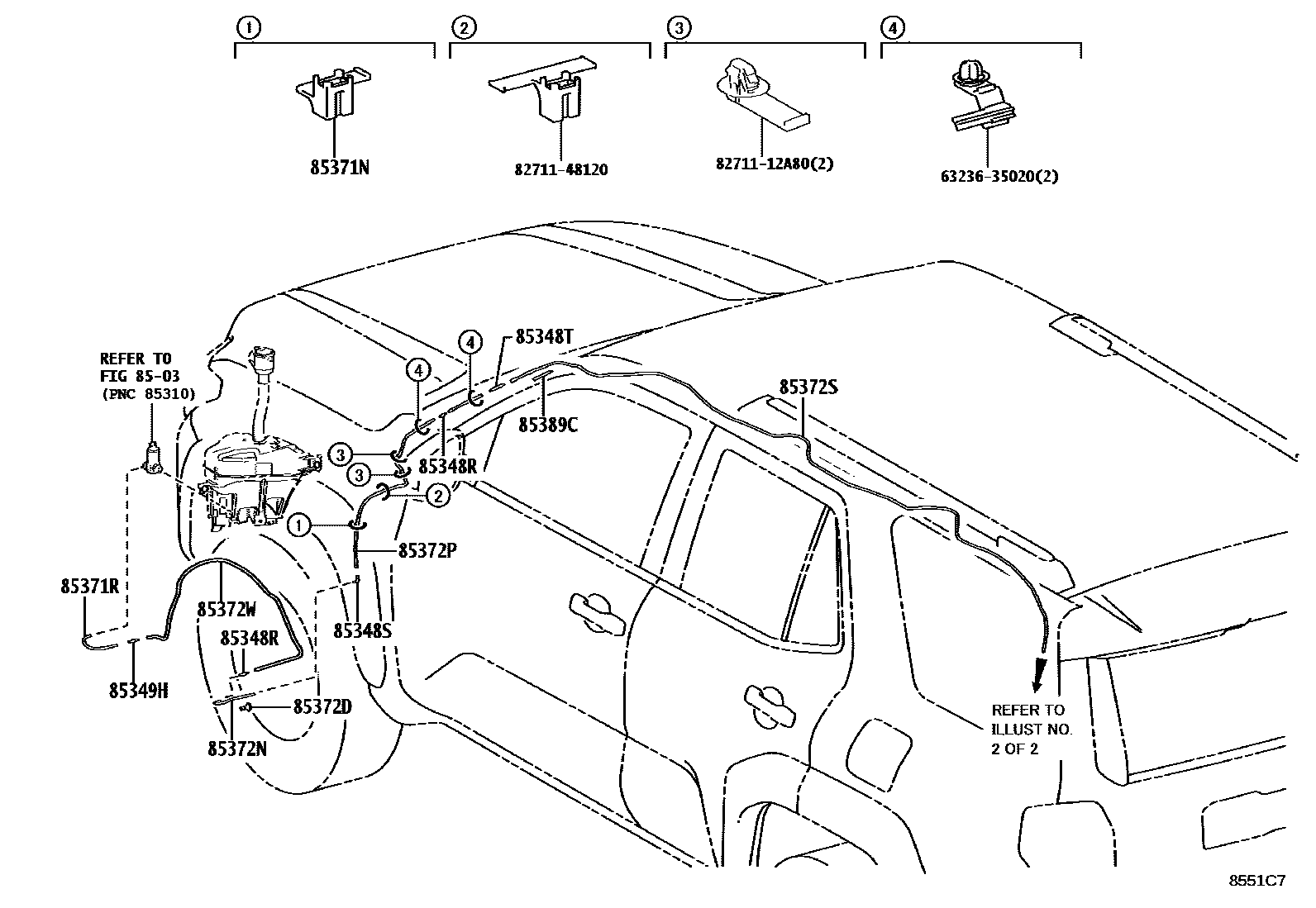

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×2i202412

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200i202412

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-32150i202412

85349HJOINT, REAR WASHER HOSE, NO.3

main85349-89122i202412

85371NCLAMP, REAR WASHER HOSE

main85371-60080i202412

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080i202412

L=1450(*H,L=150)

85372DGROMMET, REAR WASHER HOSE

main85379-12850i202412

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62263i202412

L=1000(*H,L=200); L=1000(*H,L=200),LIMITED PACKAGE&TOWING PACKAGE&MOON ROOF-WITH; L=1000(*H,L=200),TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&TOWING PACKAGE; L=1000(*H,L=200),TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&TOWING PACKAGE

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-62263i202412

L=1000(*H,L=760); L=1000(*H,L=760),LIMITED PACKAGE&TOWING PACKAGE&MOON ROOF-WITH; L=1000(*H,L=760),TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&TOWING PACKAGE; L=1000(*H,L=760),TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&TOWING PACKAGE

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90099-62264i202412

L=3200(*H,L=2900); L=3200(*H,L=2900),LIMITED PACKAGE&TOWING PACKAGE&MOON ROOF-WITH; L=3200(*H,L=2900),TRD OFFROAD PACKAGE&TRD PREMIUM PACKAGE&TOWING PACKAGE; L=3200(*H,L=2900),TRD SPORT PACKAGE&TRD PREMIUM PACKAGE&TOWING PACKAGE

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90099-62082i202412

L=2000(*H,L=1260)

85389CPROTECTOR, WASHER

main85389-50170i202412

6323635020CLAMP, SLIDING ROOF OR REMOVABLE ROOF DRAIN HOSE

main63236-35020

8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12A80

8271148120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48120

16 parts on this diagram · 2 diagrams in section
