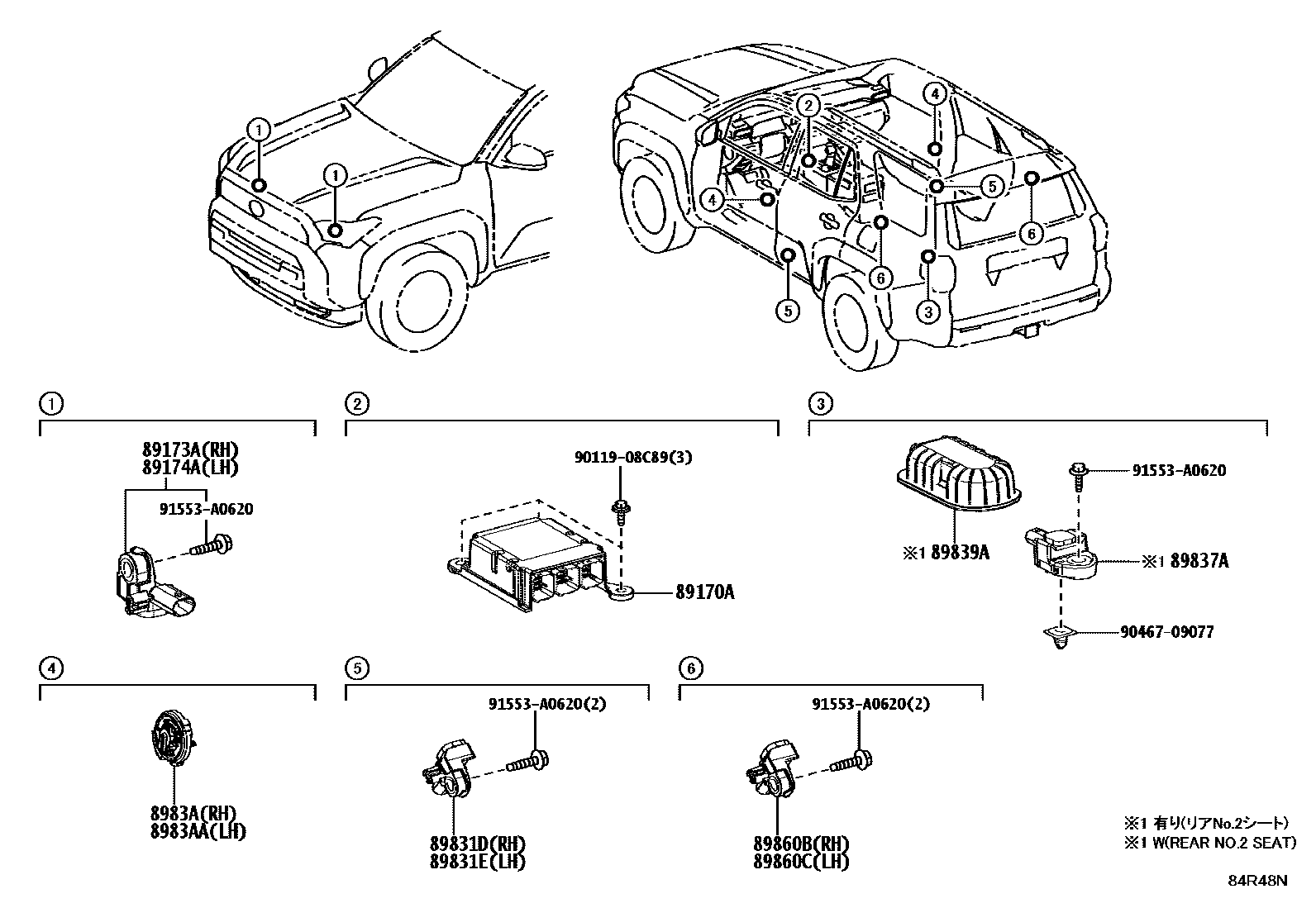

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89831DSENSOR, FLOOR SIDE AIRBAG, RH
89831ESENSOR, FLOOR SIDE AIRBAG, LH
89837ASENSOR, REAR FLOOR SIDE AIRBAG
REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR
REAR NO.2 SEAT-WITH(FOR GASOLINE MODEL)
8983ASENSOR, SIDE AIRBAG PRESSURE, RH
8983AASENSOR, SIDE AIRBAG PRESSURE, LH
89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2
89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2
9011908C89
main90119-08C89
9046709077
main90467-09077
91553A0620
main91553-A0620
14 parts on this diagram · 1 diagram in section
