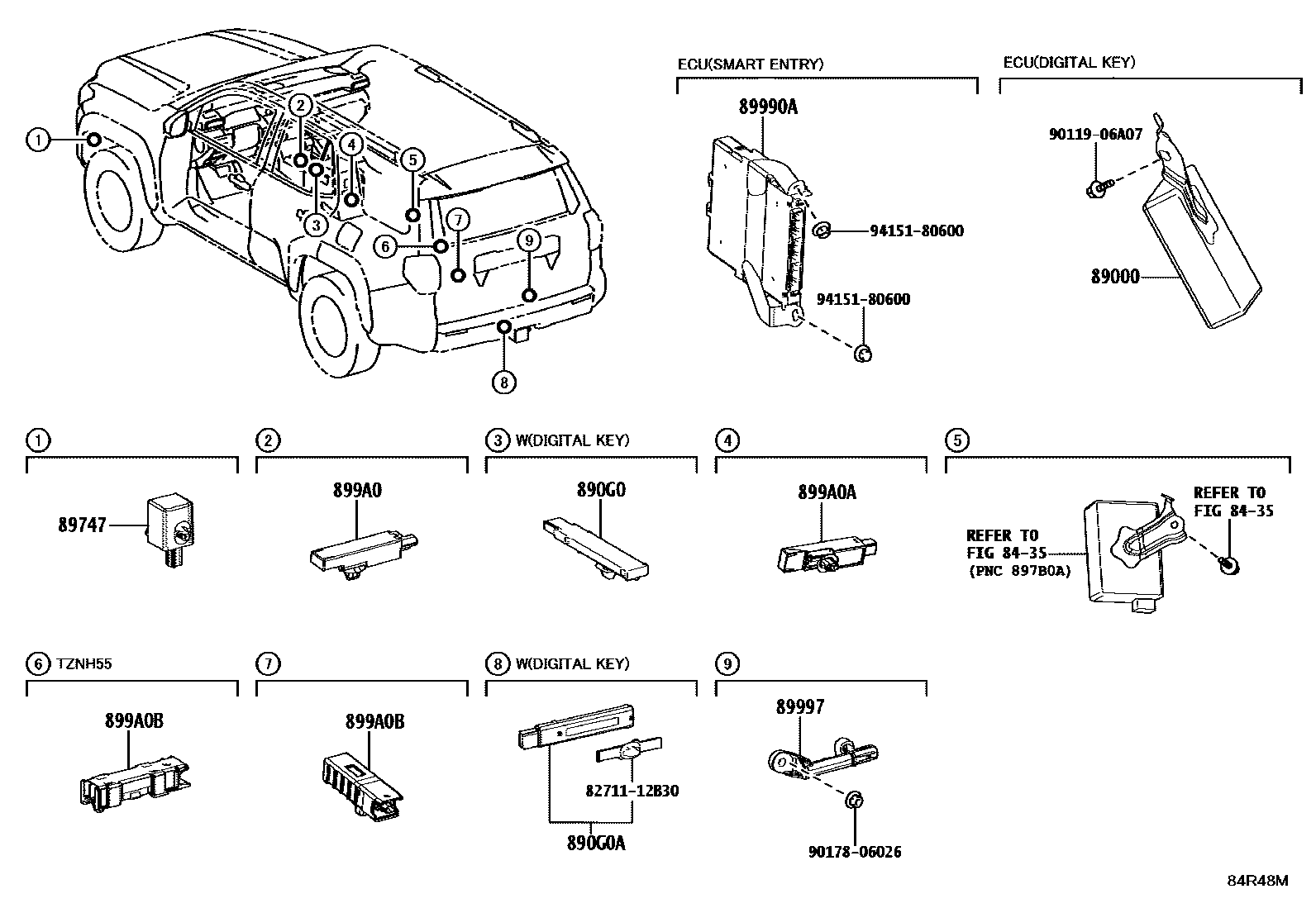

WIRELESS DOOR LOCK

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89000COMPUTER ASSY, DIGITAL KEY

main89000-35021iTZNA5#202412

DIGITAL KEY-WITH

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-35010iTZNA5#202412

DIGITAL KEY-WITH

890G0ARECEIVER ASSY, BLE DOOR DIGITAL KEY, NO.2

main890G0-V1010iTZNA5#202412

DIGITAL KEY-WITH

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iTZNA5#202412-202502

DIGITAL KEY-WITH

89990ACOMPUTER ASSY, SMART KEY

main899H0-35050iTZNA5#202412

LUGGAGE & BACK DOOR-WITH(HANDS FREE POWER BACK DOOR)

89997ANTENNA, ELECTRICAL KEY

main89997-30100iTZNA5#202412-202502

DIGITAL KEY-WITH

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-42020iTZNA5#202412-202502

DIGITAL KEY-WITH

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12130iTZNA5#202412-202502

DIGITAL KEY-WITH

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-60070iTZNA5#202412-202502

DIGITAL KEY-WITH

8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12B30

9011906A07

main90119-06A07

9017806026

main90178-06026

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
