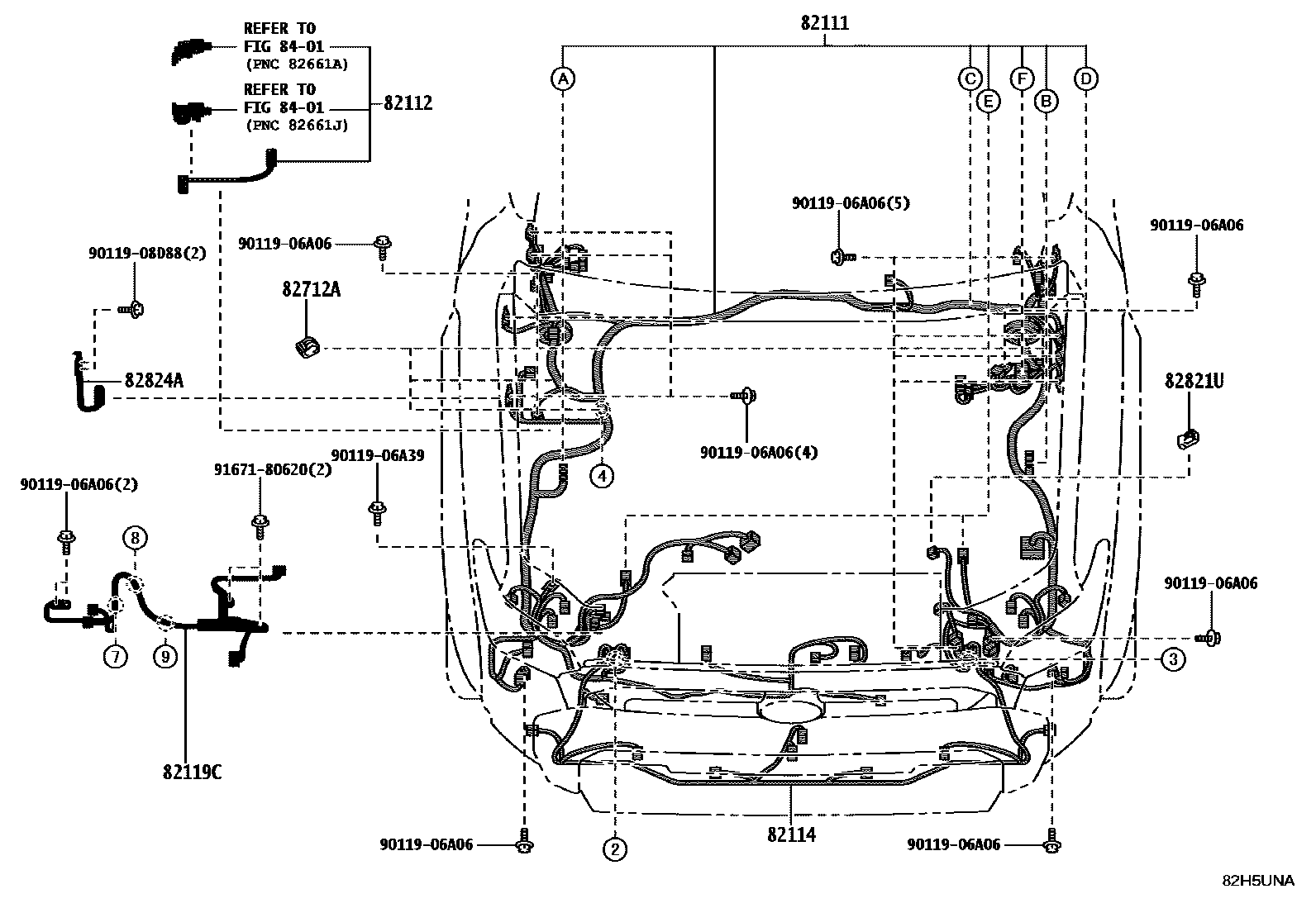

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
TRD SPORT PACKAGE&AUDIO-PREMIUM 14INCH
LIMITED PACKAGE&AUDIO-PREMIUM 14INCH
LIMITED PACKAGE&AUDIO-PREMIUM 14INCH
ARUBA SPEC&LIMITED PACKAGE&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD; BELIZE SPEC&LIMITED PACKAGE&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD; CURACAO SPEC&LIMITED PACKAGE&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD; HAITI SPEC&LIMITED PACKAGE&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD; LATIN AMERICA SPEC&LIMITED PACKAGE&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD; ST.MARTIN SPEC&LIMITED PACKAGE&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD
TRD OFFROAD PACKAGE&AUDIO-PREMIUM 14INCH; TRD SPORT PACKAGE&AUDIO-PREMIUM 14INCH
82112WIRE, ENGINE ROOM, NO.2
LIMITED PACKAGE&AC INVERTER OUTPUT-120V/400W
AC INVERTER OUTPUT-120V/400W; LIMITED PACKAGE&LOW FUEL CONSUMPTION ITEM-STOP & START SYSTEM, CHARGING CONTROL&ACINVERTER OUTPUT-120V/400W
82114WIRE, ENGINE ROOM, NO.4
ARUBA SPEC&LIMITED PACKAGE&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD&PERIPHERAL MONITORCAMERA-BACK MONITOR; BELIZE SPEC&LIMITED PACKAGE&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD&PERIPHERAL MONITOR CAMERA-BACK MONITOR; CHILE SPEC&LIMITED PACKAGE&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD&PERIPHERAL MONITORCAMERA-BACK MONITOR; CURACAO SPEC&LIMITED PACKAGE&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD&PERIPHERAL MONITOR CAMERA-BACK MONITOR; HAITI SPEC&LIMITED PACKAGE&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD&PERIPHERAL MONITORCAMERA-BACK MONITOR; LATIN AMERICA SPEC&LIMITED PACKAGE&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD&PERIPHERALMONITOR CAMERA-BACK MONITOR; ST.MARTIN SPEC&LIMITED PACKAGE&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD&PERIPHERAL MONITOR CAMERA-BACK MONITOR; TRD OFFROAD PACKAGE; TRD SPORT PACKAGE
LIMITED PACKAGE&AUDIO-PREMIUM 14INCH&PERIPHERAL MONITOR CAMERA-PANORAMIC VIEW MONITOR; TRD OFFROAD PACKAGE&AUDIO-PREMIUM 14INCH&PERIPHERAL MONITOR CAMERA-MULTI-TELLAIN MONITOR; TRD SPORT PACKAGE&AUDIO-PREMIUM 14INCH&PERIPHERAL MONITOR CAMERA-PANORAMIC VIEW MONITOR
82119CWIRE, ENGINE ROOM, NO.5
LIMITED PACKAGE
CHILE SPEC&LIMITED PACKAGE
82712ASUPPORT, WIRING HARNESS
82821UCOVER, CONNECTOR
ARUBA SPEC&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD; CHILE SPEC&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD; CURACAO SPEC&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD; HAITI SPEC&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD; LATIN AMERICA SPEC&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD; ST.MARTIN SPEC&AUDIO-DISPLAY AUDIO 8INCH WITHOUT CD
82824CONNECTOR, WIRING HARNESS
AC INVERTER OUTPUT-120V/400W
82824ACONNECTOR, WIRING HARNESS
LIMITED PACKAGE&LOW FUEL CONSUMPTION ITEM-STOP & START SYSTEM, CHARGING CONTROL&ACINVERTER OUTPUT-120V/400W
8401SWITCH & RELAY & COMPUTER
9011906A06
main90119-06A06
9011906A39
main90119-06A39
9011908D88
main90119-08D88
9167180620
main91671-80620
13 parts on this diagram · 11 diagrams in section
