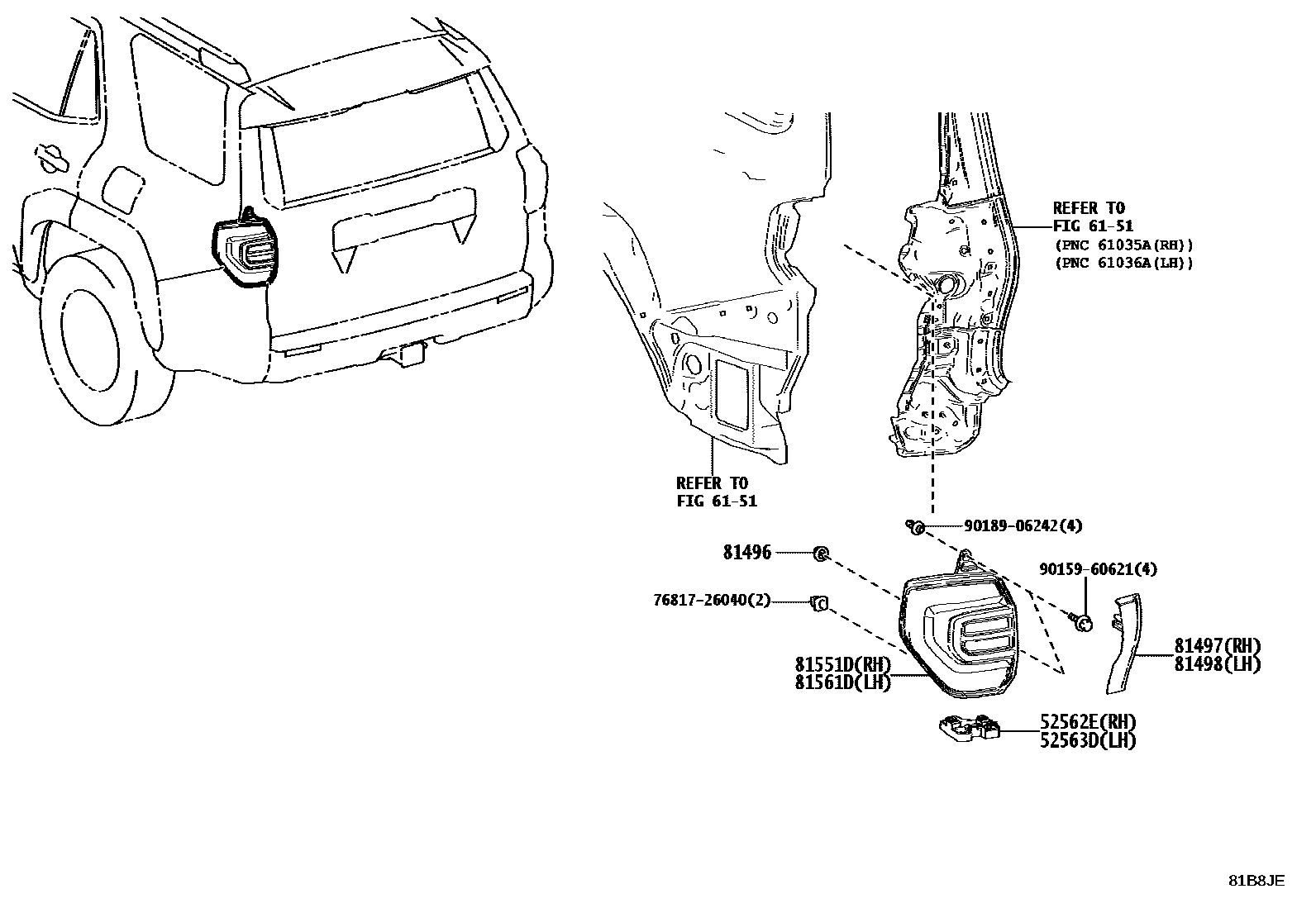

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-35050iTZNA5#202412

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-35050iTZNA5#202412

6151SIDE MEMBER

→ Go to FIG 61-51

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iTZNA5#202412

81497COVER, REAR COMBINATION LAMP, RH

main81497-35010iTZNA5#202412

81498COVER, REAR COMBINATION LAMP, LH

main81498-35010iTZNA5#202412

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-35410iTZNA5#202412

main81551-35420iTZNA5#202412

TRD SPORT PACKAGE

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-35410iTZNA5#202412

main81561-35420iTZNA5#202412

TRD SPORT PACKAGE

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9015960621

main90159-60621

9018906242

main90189-06242

11 parts on this diagram · 1 diagram in section
