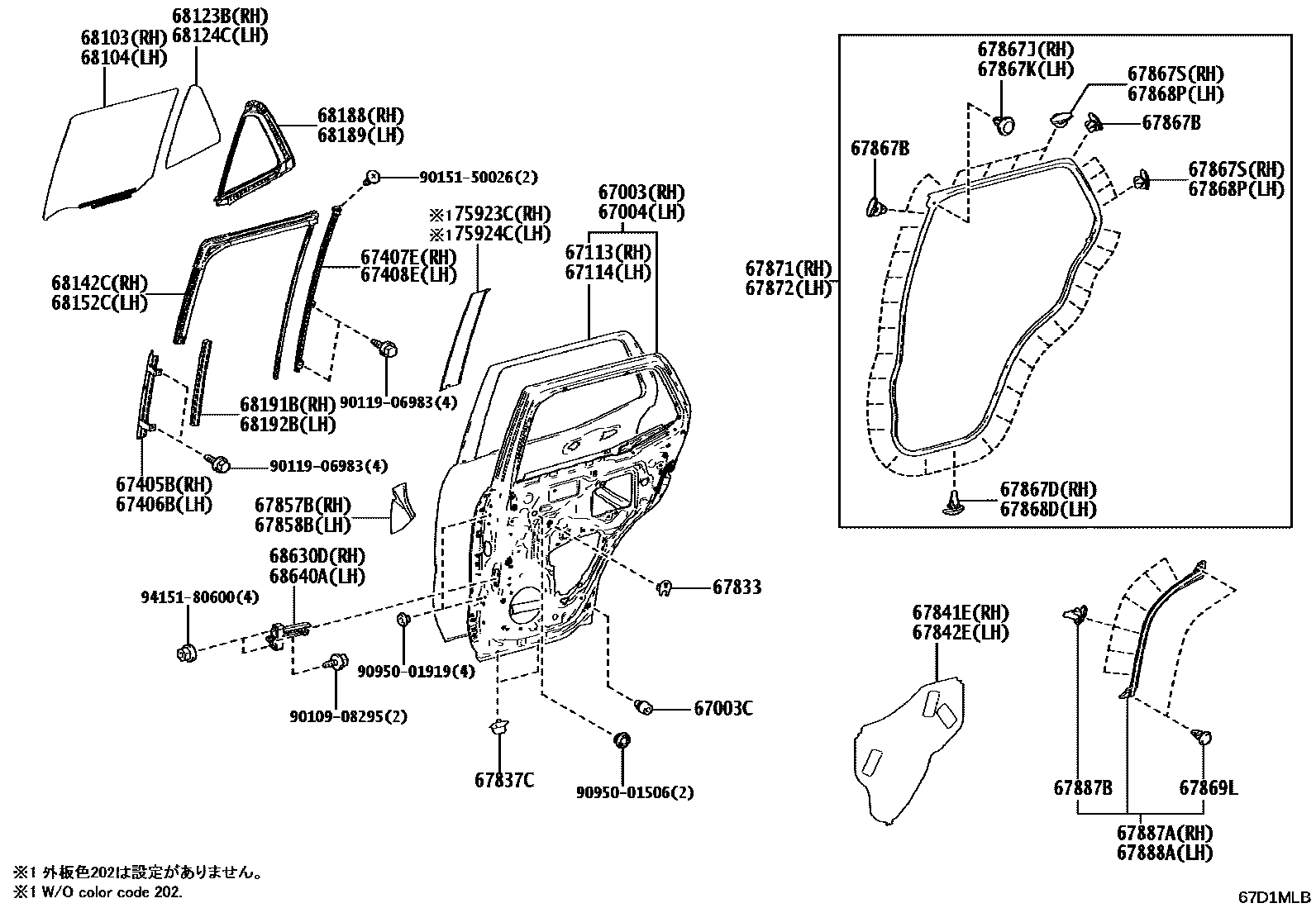

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67833COVER, REAR DOOR SERVICE HOLE
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
STEP & STEP COVER-FIXED RUNNING BOARD
67858BPROTECTOR, REAR DOOR PANEL, LH
STEP & STEP COVER-FIXED RUNNING BOARD
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)
67867KCLIP, DOOR WEATHERSTRIP, LH(FOR REAR DOOR)
67867SRETAINER, REAR DOOR WEATHERSTRIP, NO.2, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67868PRETAINER, DOOR WEATHERSTRIP, NO.1 LH
BLUE
GREEN
67869LCLIP, REAR DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67887AWEATHERSTRIP, REAR DOOR, NO.2 RH
67887BCLIP(FOR REAR DOOR WEATHERSTRIP)
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124CGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68191BRUN, REAR DOOR GLASS, NO.2 RH
68192BRUN, REAR DOOR GLASS, NO.2 LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75923CTAPE, BLACK OUT, NO.2 RH
75924CTAPE, BLACK OUT, NO.2 LH
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9095001506
main90950-01506
9095001919
main90950-01919
9415180600
main94151-80600
48 parts on this diagram · 2 diagrams in section
