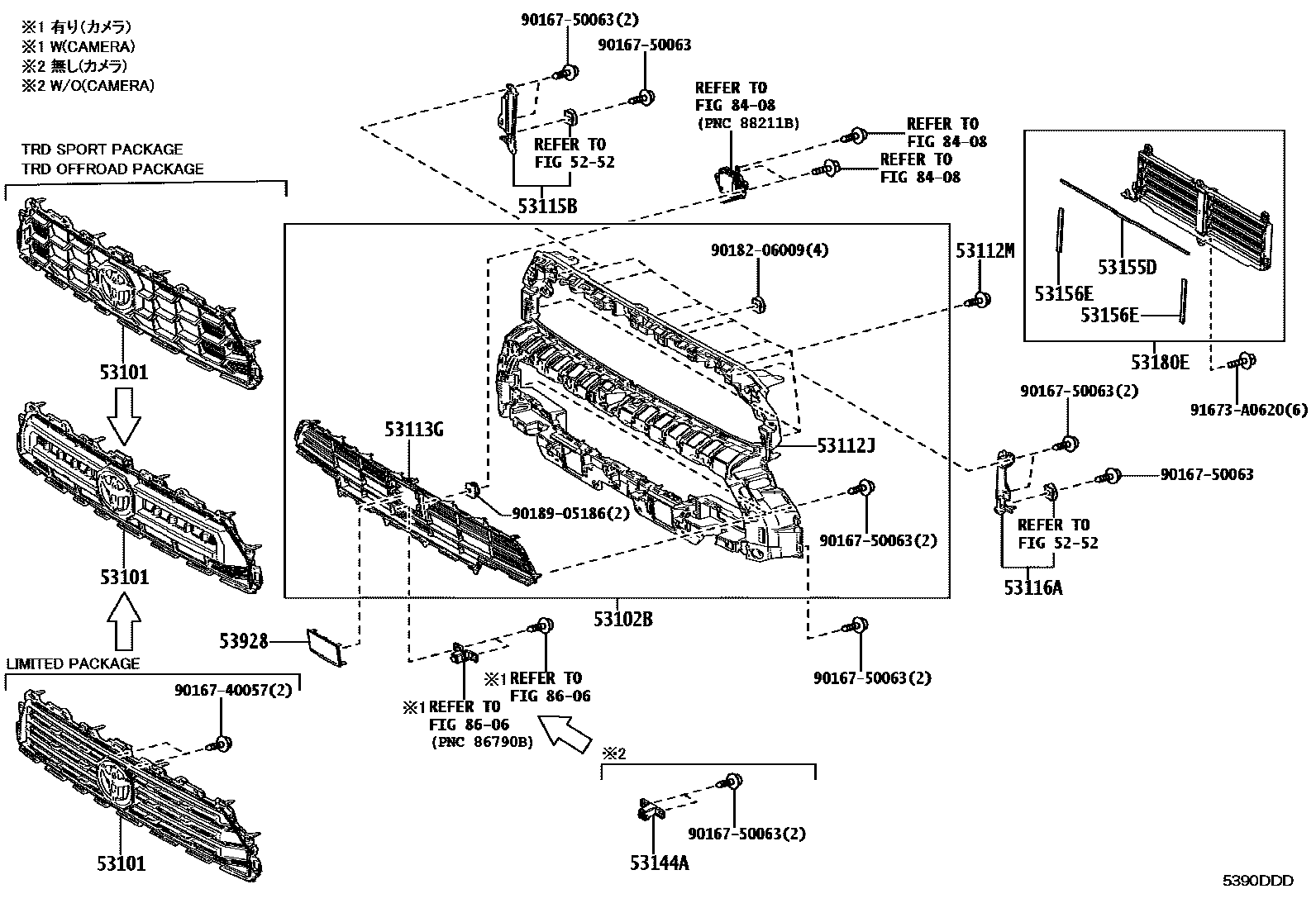

RADIATOR GRILLE

5252

53101GRILLE SUB-ASSY, RADIATOR

main53101-35120iTZNA5#202412

NO PAINT REQ.

53102BGRILLE SUB-ASSY, RADIATOR, LOWER

main53102-35040iTZNA5#202412

53112JGRILLE, RADIATOR, LOWER NO.1

main53112-35120iTZNA5#202412

53112MSCREW, NO.3(FOR RADIATOR GRILLE LOWER)

main90167-50063iTZNA5#202412

53113GGRILLE, RADIATOR, LOWER NO.2

main53113-35010iTZNA5#202412

53115BBRACKET, RADIATOR GRILLE

main53115-35070iTZNA5#202412

53116ABRACKET, RADIATOR GRILLE, LH

main53116-35060iTZNA5#202412

53144AGARNISH, RADIATOR GRILLE, NO.4

main53144-35010iTZNA5#202412

53155DSEAL, RADIATOR GRILLE, NO.1

main53155-60080iTZNA5#202412

53156ESEAL, RADIATOR GRILLE, NO.2

main53156-60080iTZNA5#202412

53180ESHUTTER ASSY, RADIATOR

main53180-60051iTZNA5#202412

53928GARNISH, FRONT PANEL, CENTER

main53928-35010iTZNA5#202412

8408

8606

9016740057

main90167-40057

9016750063

main90167-50063

9018206009

main90182-06009

9018905186

main90189-05186

91673A0620

main91673-A0620

20 parts on this diagram · 1 diagram in section
