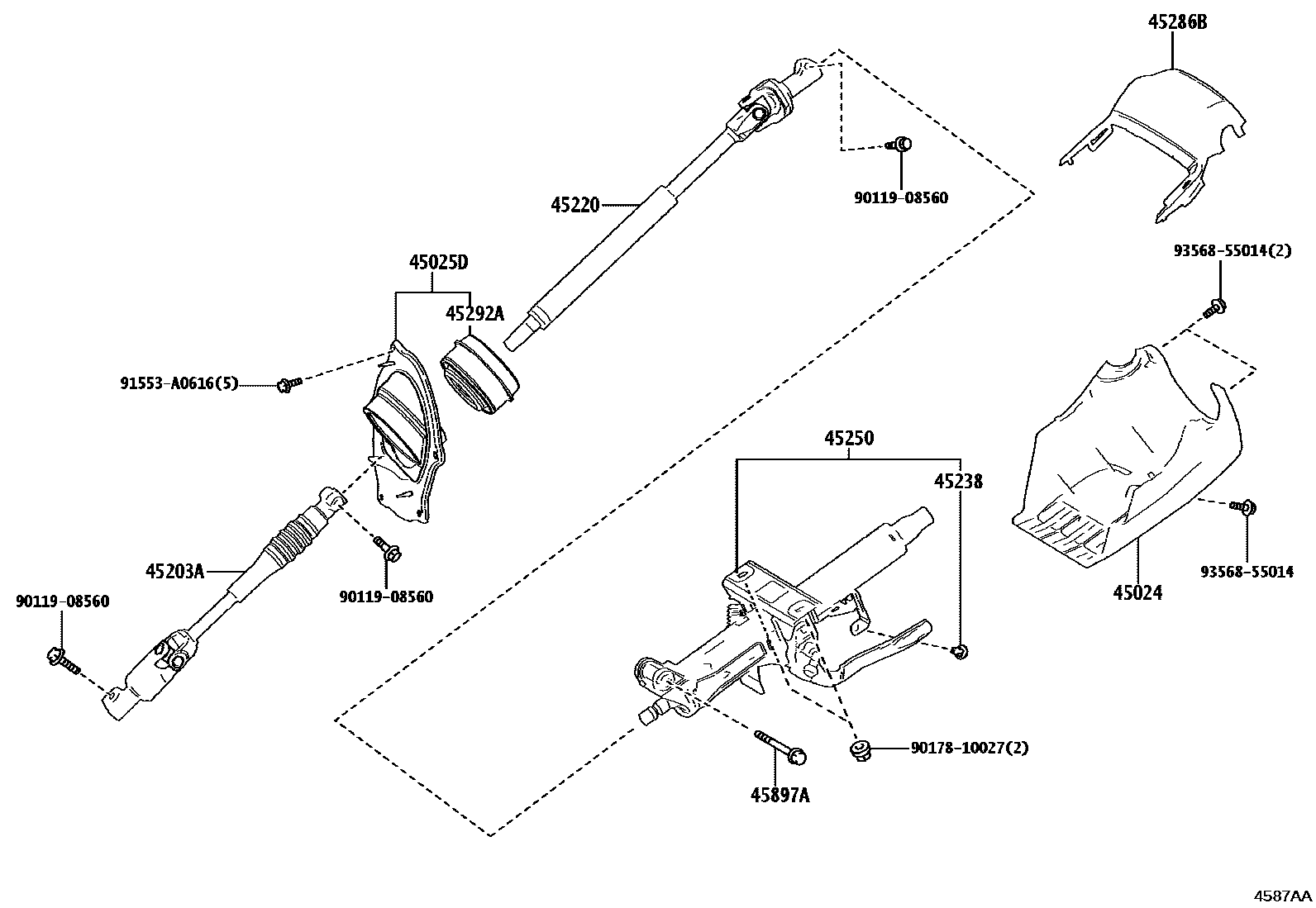

STEERING COLUMN & SHAFT

0001 1MANUAL TILT & TELESCOPIC 0002 1POWER TILT & TELESCOPIC

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-30140-C0iTZNA5#202412

BLACK,TRIM1#,2#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-35410iTZNA5#202412

45203ASHAFT, STEERING INTERMEDIATE, NO.2

main45203-60300iTZNA5#202412

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-35210iTZNA5#202412

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iTZNA5#202412

45250COLUMN ASSY, STEERING

main45250-33D20iTZNA5#202412

45286BCOVER, STEERING COLUMN, UPR

main45286-30A80-C0iTZNA5#202412

BLACK,TRIM1#,2#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-35150iTZNA5#202412

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iTZNA5#202412

9011908560

main90119-08560

9017810027

main90178-10027

91553A0616

main91553-A0616

9356855014

main93568-55014

13 parts on this diagram · 2 diagrams in section
