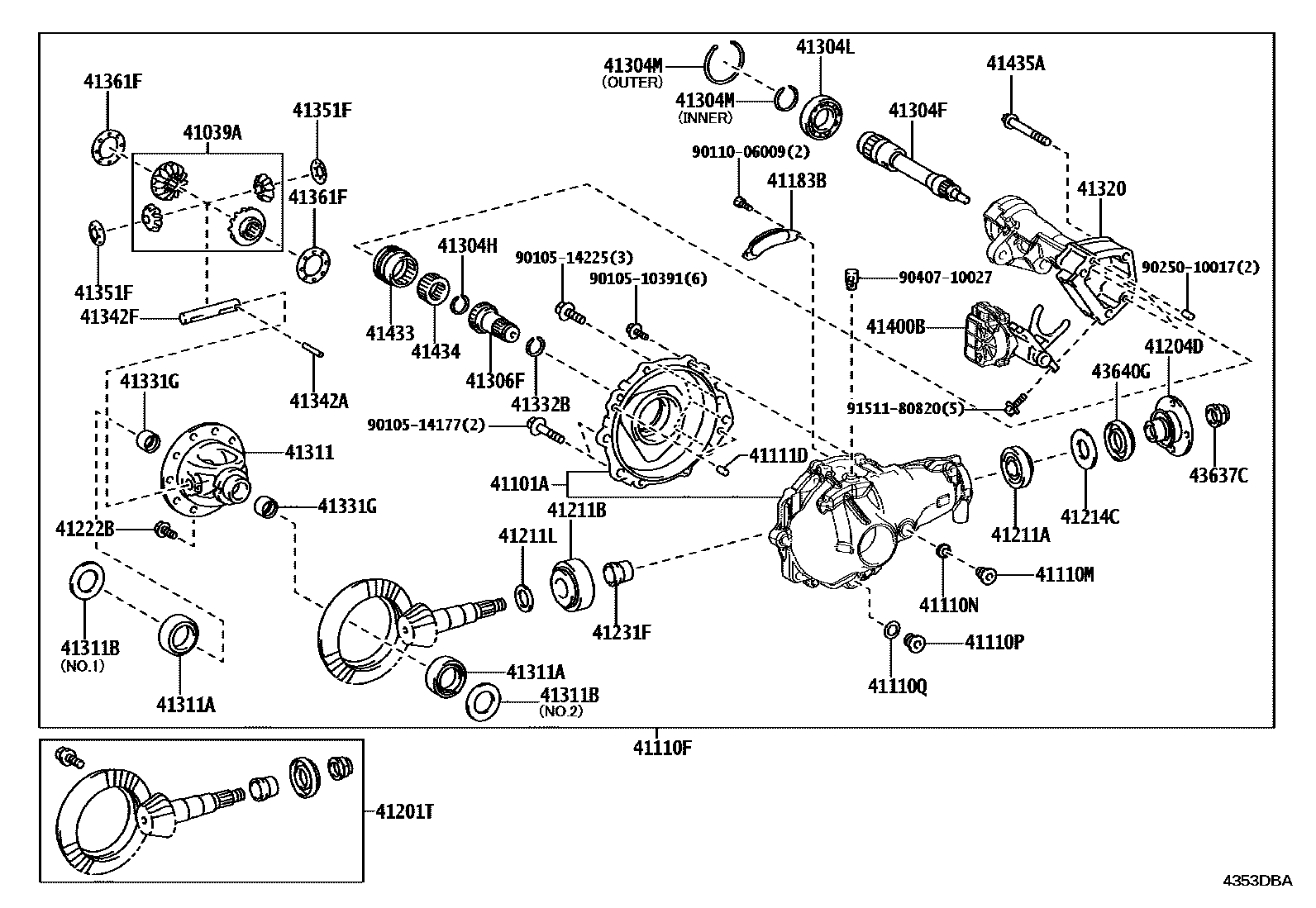

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
*FGR=43:12=3.583
41110MPLUG, FRONT DIFFERENTIAL FILLER
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
41183BDEFLECTOR, FRONT DIFFERENTIAL SIDE BEARING RETAINER
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=43:12=3.583
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41211LSHIM (FOR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70
OD=47,T=1.73
OD=47,T=1.76
OD=47,T=1.79
OD=47,T=1.82
OD=47,T=1.85
OD=47,T=1.88
OD=47,T=1.91
OD=47,T=1.94
OD=47,T=1.97
OD=47,T=2.00
OD=47,T=2.03
OD=47,T=2.06
OD=47,T=2.09
OD=47,T=2.12
OD=47,T=2.15
OD=47,T=2.18
OD=47,T=2.21
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
INNER
OUTER
41306FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR INTER
41311CASE, FRONT DIFFERENTIAL
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=1.60,NO.2:REFER ILLUST.
T=1.66,NO.2:REFER ILLUST.
T=1.72,NO.2:REFER ILLUST.
T=1.78,NO.2:REFER ILLUST.
T=1.84,NO.2:REFER ILLUST.
T=1.90,NO.2:REFER ILLUST.
T=1.96,NO.2:REFER ILLUST.
T=2.02,NO.2:REFER ILLUST.
T=2.08,NO.2:REFER ILLUST.
T=2.14,NO.2:REFER ILLUST.
T=1.60,NO.1:REFER ILLUST.
T=1.66,NO.1:REFER ILLUST.
T=1.72,NO.1:REFER ILLUST.
T=1.78,NO.1:REFER ILLUST.
T=1.84,NO.1:REFER ILLUST.
T=1.90,NO.1:REFER ILLUST.
T=1.96,NO.1:REFER ILLUST.
T=2.02,NO.1:REFER ILLUST.
T=2.08,NO.1:REFER ILLUST.
T=2.14,NO.1:REFER ILLUST.
T=1.58,NO.2:REFER ILLUST.
T=1.62,NO.2:REFER ILLUST.
T=1.64,NO.2:REFER ILLUST.
T=1.68,NO.2:REFER ILLUST.
T=1.70,NO.2:REFER ILLUST.
T=1.74,NO.2:REFER ILLUST.
T=1.76,NO.2:REFER ILLUST.
T=1.80,NO.2:REFER ILLUST.
T=1.82,NO.2:REFER ILLUST.
T=1.86,NO.2:REFER ILLUST.
T=1.88,NO.2:REFER ILLUST.
T=1.92,NO.2:REFER ILLUST.
T=1.94,NO.2:REFER ILLUST.
T=1.98,NO.2:REFER ILLUST.
T=2.00,NO.2:REFER ILLUST.
T=2.04,NO.2:REFER ILLUST.
T=2.06,NO.2:REFER ILLUST.
T=2.10,NO.2:REFER ILLUST.
T=2.12,NO.2:REFER ILLUST.
T=2.16,NO.2:REFER ILLUST.
T=1.58,NO.1:REFER ILLUST.
T=1.62,NO.1:REFER ILLUST.
T=1.64,NO.1:REFER ILLUST.
T=1.68,NO.1:REFER ILLUST.
T=1.70,NO.1:REFER ILLUST.
T=1.74,NO.1:REFER ILLUST.
T=1.76,NO.1:REFER ILLUST.
T=1.80,NO.1:REFER ILLUST.
T=1.82,NO.1:REFER ILLUST.
T=1.86,NO.1:REFER ILLUST.
T=1.88,NO.1:REFER ILLUST.
T=1.92,NO.1:REFER ILLUST.
T=1.94,NO.1:REFER ILLUST.
T=1.98,NO.1:REFER ILLUST.
T=2.00,NO.1:REFER ILLUST.
T=2.04,NO.1:REFER ILLUST.
T=2.06,NO.1:REFER ILLUST.
T=2.10,NO.1:REFER ILLUST.
T=2.12,NO.1:REFER ILLUST.
T=2.16,NO.1:REFER ILLUST.
T=1.44,NO.1:REFER ILLUST.
T=1.46,NO.1:REFER ILLUST.
T=1.48,NO.1:REFER ILLUST.
T=1.50,NO.1:REFER ILLUST.
T=1.52,NO.1:REFER ILLUST.
T=1.54,NO.1:REFER ILLUST.
T=1.56,NO.1:REFER ILLUST.
T=2.18,NO.2:REFER ILLUST.
T=2.20,NO.2:REFER ILLUST.
T=2.22,NO.2:REFER ILLUST.
T=2.24,NO.2:REFER ILLUST.
T=2.26,NO.2:REFER ILLUST.
T=2.28,NO.2:REFER ILLUST.
T=2.30,NO.2:REFER ILLUST.
41320TUBE ASSY, FRONT DIFFERENTIAL
41331GBEARING, NEEDLE ROLLER(FOR FRONT DIFFERENTIAL SIDE GEAR)
41332BRING, HOLE SNAP (FOR DIFF SIDE GEAR INTERMEDDIATE SHAFT)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
T=1.90
41400BACTUATOR ASSY, DIFFERENTIAL MOTOR
41433SLEEVE, DIFFERENTIAL CLUTCH
41434HUB, DIFFERENTIAL CLUTCH
41435ABOLT (FOR DIFFERENTIAL CLUTCH CASE SETTING)
*12-1.25PX78-30
43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)
43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)
9010510391
main90105-10391
9010514177
main90105-14177
9010514225
main90105-14225
9011006009
main90110-06009
9025010017
main90250-10017
9040710027
main90407-10027
9151180820
main91511-80820
45 parts on this diagram · 2 diagrams in section
