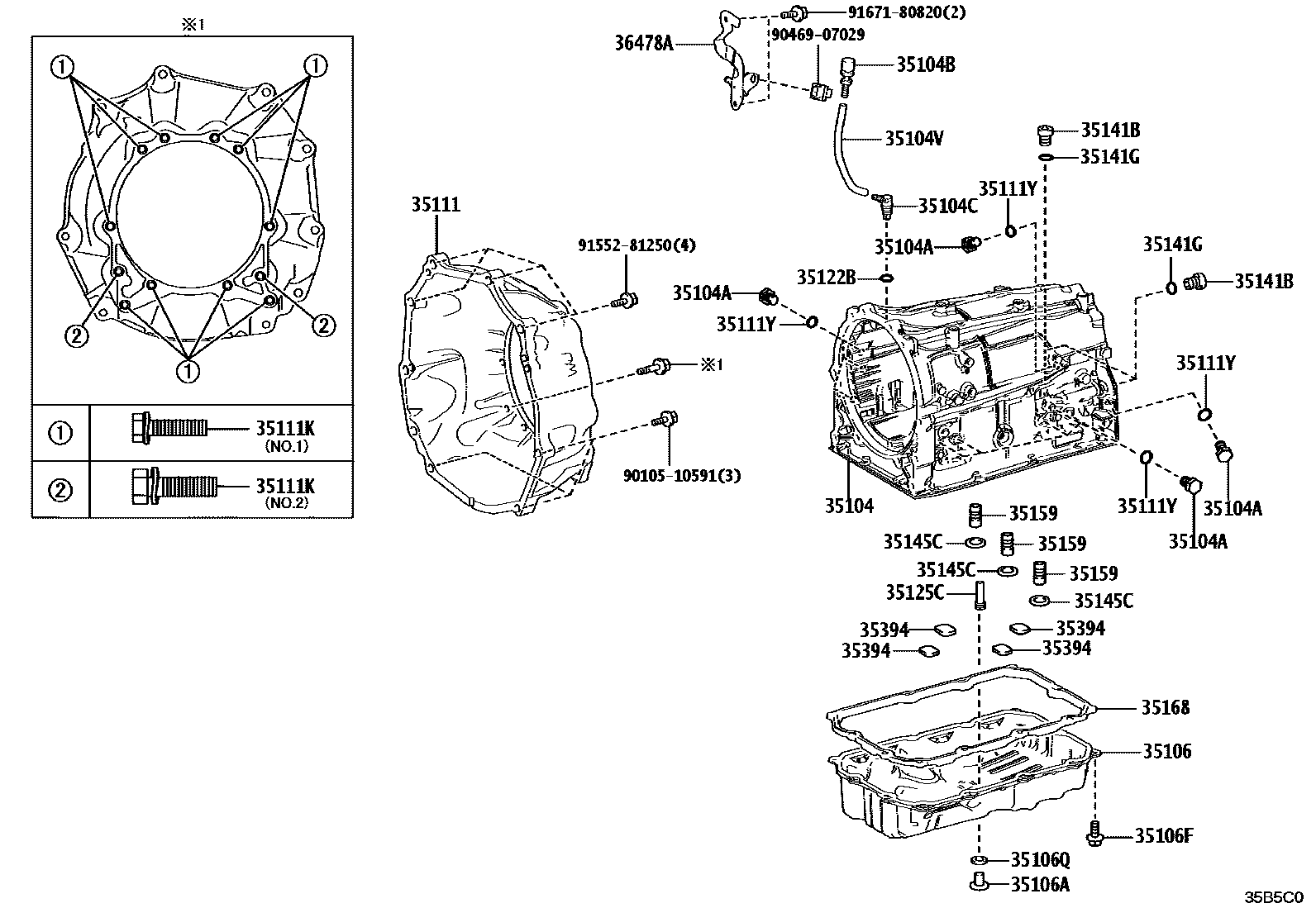

TRANSMISSION CASE & OIL PAN (ATM)

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-60320iTZNA5#202412

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001×10iTZNA5#202412

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03211iTZNA5#202412

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03220iTZNA5#202412

35104VHOSE (FOR BREATHER PLUG)

main35121-60050iTZNA5#202412

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-60260iTZNA5#202412

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iTZNA5#202412

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06A02×12iTZNA5#202412

35106QPLUG (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90430-12008iTZNA5#202412

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-60280iTZNA5#202412

35111KBOLT (FOR TRANSMISSION HOUSING & CASE SETTING)

main90119-10232×10iTZNA5#202412

*10-1.5PX35-30,NO.1:REFER ILLUST.

main90119-12502×2iTZNA5#202412

*12-1.75PX38-30,NO.2:REFER ILLUST.

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×10iTZNA5#202412

35122BRING, O (FOR AUTOMATIC TRANSAXLE BREATHER TUBE UNION)

main90301-08015iTZNA5#202412

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-60260iTZNA5#202412

35141BPLUG (FOR AUTOMATIC TRANSMISSION CASE)

main90341-14011×3iTZNA5#202412

35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-11030×3iTZNA5#202412

35145CGASKET, TRANSAXLE CASE

main35145-60020×3iTZNA5#202412

35159GASKET, BRAKE DRUM

main35159-60050×3iTZNA5#202412

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-60050iTZNA5#202412

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iTZNA5#202412

36478ABRACKET, TRANSMISSION BREATHER

main36478-60150iTZNA5#202412

9010510591

main90105-10591

9046907029

main90469-07029

9155281250

main91552-81250

9167180820

main91671-80820

25 parts on this diagram · 1 diagram in section
