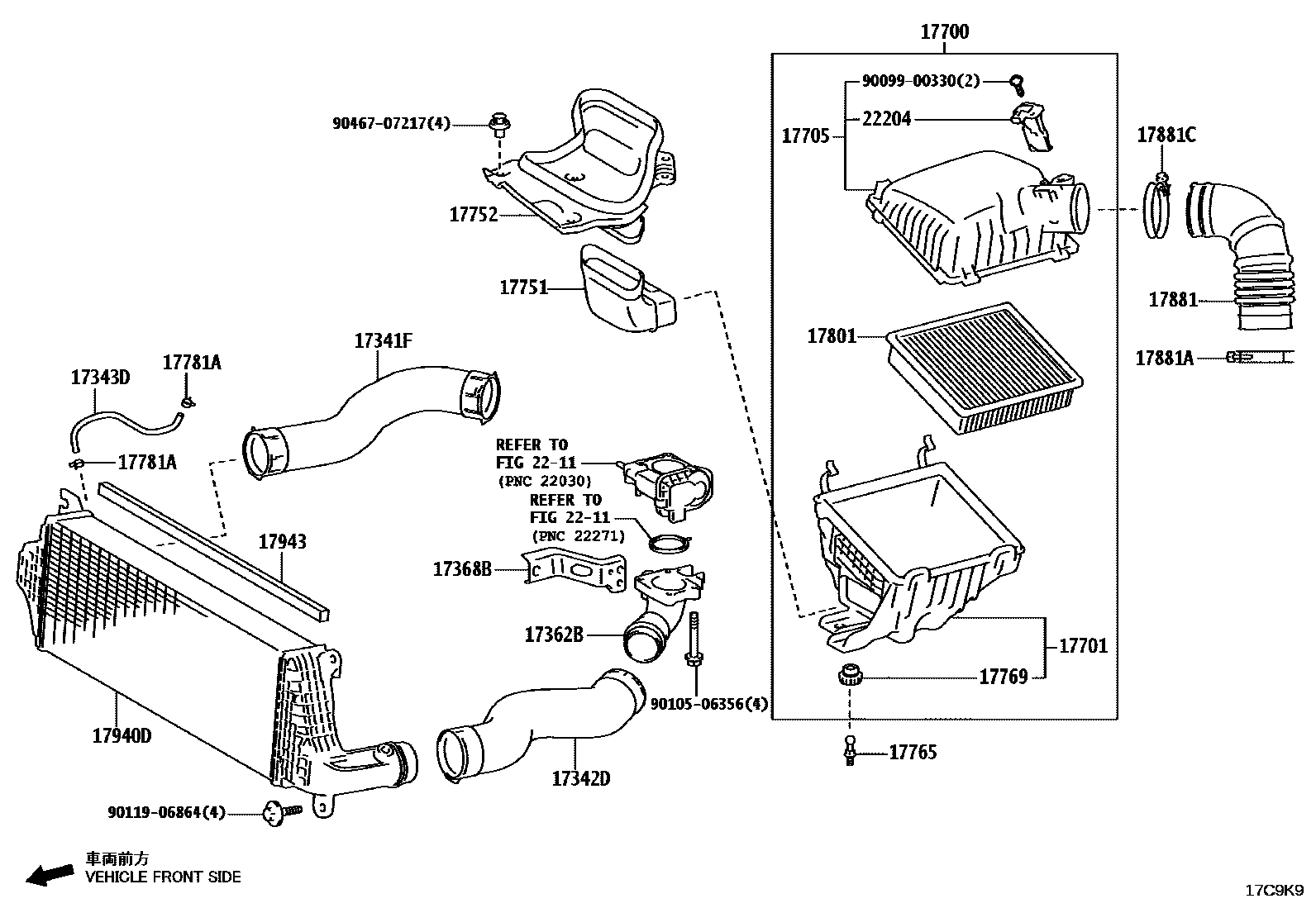

AIR CLEANER

17341FHOSE, AIR, NO.1

main17341-25010iT24..TZNA5#202412

17342DHOSE, AIR, NO.2

main17342-25040iT24..TZNA5#202412

17343DHOSE, AIR, NO.3

main17343-25010iT24..TZNA5#202412

17362BTUBE, AIR, NO.2

main17030-25021iT24..TZNA5#202412

17368BSUPPORT, AIR TUBE

main17368-25030iT24..TZNA5#202412

17700CLEANER ASSY, AIR

main17700-25260iT24..TZNA5#202412

17701CASE SUB-ASSY, AIR CLEANER

main17701-25140iT24..TZNA5#202412

17705CAP SUB-ASSY, AIR CLEANER

main17705-25120iT24..TZNA5#202412

17751INLET, AIR CLEANER, NO.1

main17751-25090iT24..TZNA5#202412

17752INLET, AIR CLEANER, NO.2

main17752-25040iT24..TZNA5#202412

17765STAY, AIR CLEANER, NO.1

main17765-25010iT24..TZNA5#202412

17769SUPPORT, AIR CLEANER

main17769-25030iT24..TZNA5#202412

17781ACLAMP, HOSE

main96133-40701iT24..TZNA5#202412

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31131iT24..TZNA5#202412

17881HOSE, AIR CLEANER, NO.1

main17881-25090iT24..TZNA5#202412

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800iT24..TZNA5#202412

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10830iT24..TZNA5#202412

17940DINTERCOOLER ASSY

main17940-25020iT24..TZNA5#202412

17943PROTECTOR, INTERCOOLER

main17943-25010iT24..TZNA5#202412

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-24010iT24..TZNA5#202412

9009900330

main90099-00330

9010506356

main90105-06356

9011906864

main90119-06864

9046707217

main90467-07217

25 parts on this diagram · 1 diagram in section
