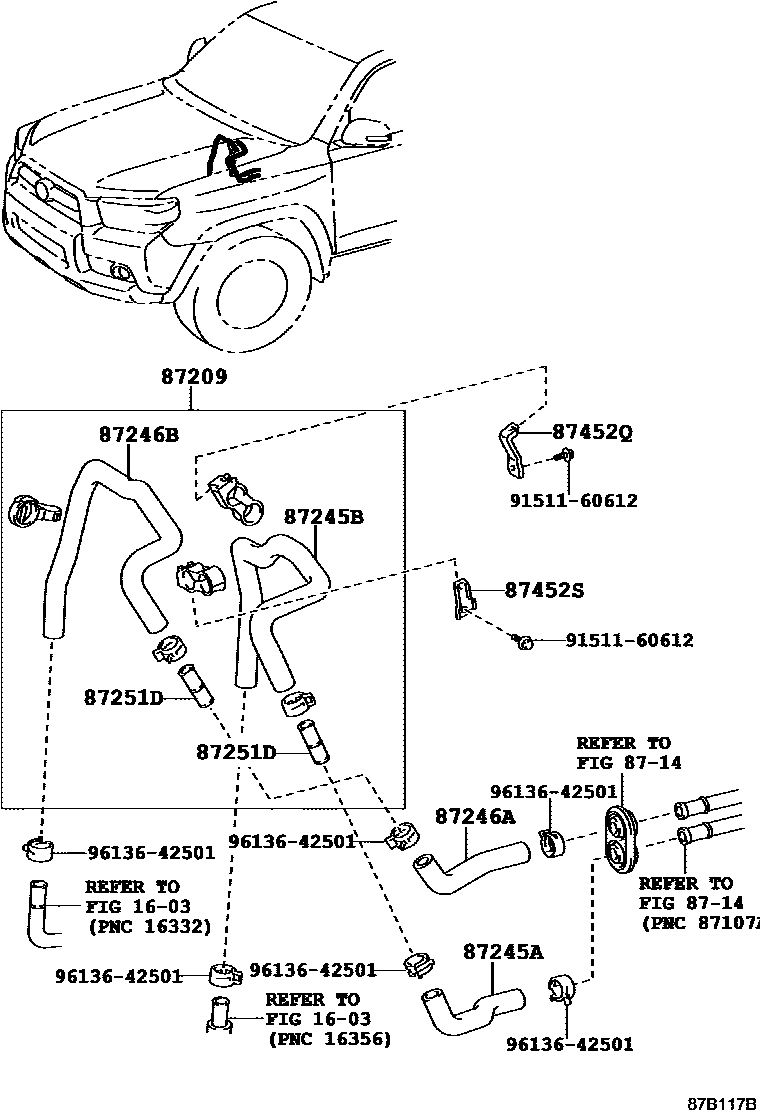

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87209HOSE SUB-ASSY, WATER

main87209-60D00iGRN28#200908-201308

main87209-60G60iGRN28#201908

87245AHOSE, HEATER WATER, INLET A

main87245-60D50iGRN28#200908-201308

main87245-60D90iTRN28#200911-201108

main87245-60L00iGRN28#201908

87245BHOSE, HEATER WATER, INLET B

main87245-60G00iGRN28#201308-201505

main87245-60L30iGRN28#201908

87246AHOSE, HEATER WATER, OUTLET A

main87245-60D40iGRN28#200908-201308

main87245-60D80iTRN28#200911-201108

main87245-60K90iGRN28#201505-201908

87246BHOSE, HEATER WATER, OUTLET B

main87245-60G10iGRN28#200908-201308

main87245-60L40iGRN28#201505-201908

87251DJOINT, WATER, NO.1

main87251-35020×2iGRN28#200908-201308

87452QBRACKET, HEATER, NO.1

main87452-60040iGRN28#200908-201308

87452SBRACKET, HEATER, NO.2

main87121-60120iGRN28#201505-201908

main87452-60050iGRN28#200908-201308

9151160612

main91511-60612

9613642501

main96136-42501

12 parts on this diagram · 2 diagrams in section
