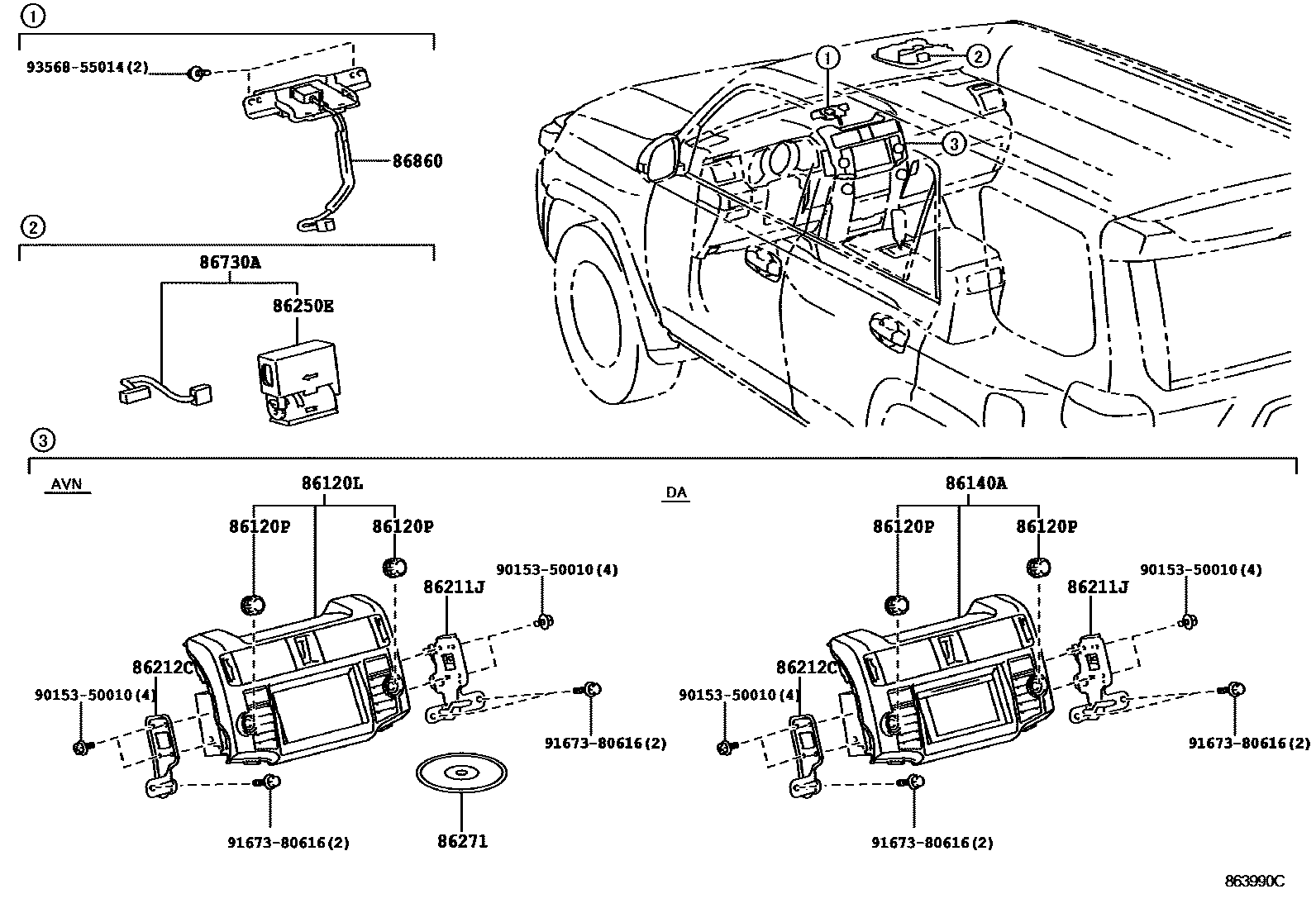

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1

86120LRECEIVER ASSY, NAVIGATION

86120PKNOB, NAVIGATION RECEIVER SWITCH

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-35120iGRN28#201308-201408

PIONEER,ID=P10544

main86140-35180iGRN28#202108

PIONEER

main86140-35190iGRN28#201408-201508

PIONEER,ID=P10544

main86140-35290iGRN28#201508-201808

PIONEER,ID=P11135

main86140-35291iGRN28#201808-201907

PIONEER,ID=P11813

main86140-35320iGRN28#201908-202108

PANASONIC

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-35110iGRN28#201308-201408

main86211-35120iGRN28#201408-201907

main86211-35140iGRN28#201908

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-35110iGRN28#201308-201408

main86212-35120iGRN28#201408-201907

main86212-35140iGRN28#201908

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52030iGRN28#201308-201908

86271DISC, DISC PLAYER

main86271-35010

main86271-73011

main86271-35011

main86271-35012

main86271-73012

main86271-73013

main86271-35013

main86271-35014

main86271-73014

main86271-35015

main86271-35020

main86271-35021

86730AMICROPHONE ASSY, TELEPHONE

main86730-75020iGRN28#201308-201908

86860ANTENNA ASSY, NAVIGATION

main86860-35090iGRN28#201308-201908

CANADA SPEC

main86860-35090iGRN28#201308-201908

HAWAII SPEC

main86860-35090iGRN28#201308-201908

PUERTO RICO SPEC

main86860-35090iGRN28#201308-201908

USA POSSESSION SPEC

main868A0-35010iGRN28#201908

9015350010

main90153-50010

9167380616

main91673-80616

9356855014

main93568-55014

12 parts on this diagram · 3 diagrams in section
