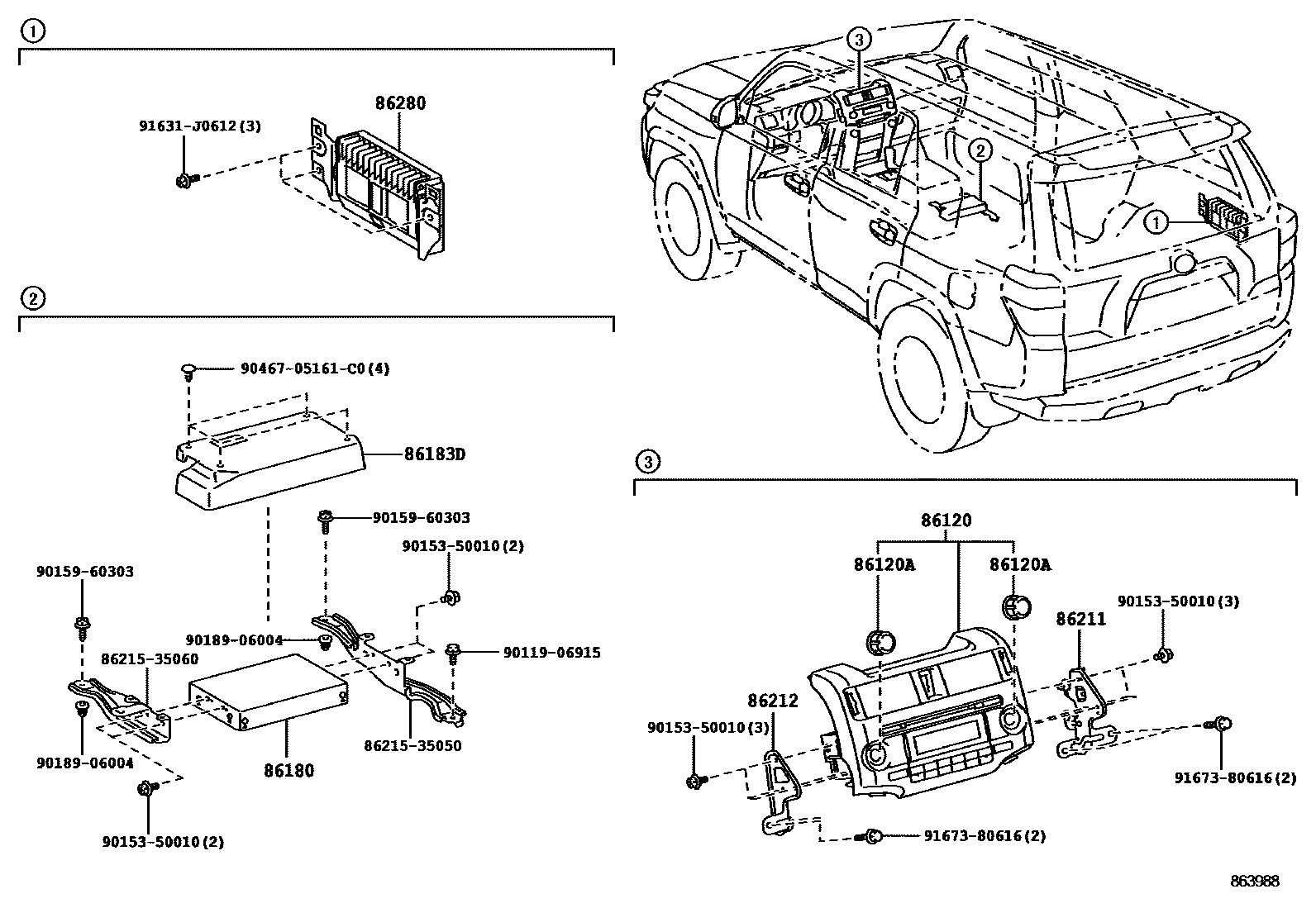

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1AUX & USB & ECU 0005 1CONDENSER 0006 1I-POD/VTR CABLE

86120RECEIVER ASSY, RADIO

main86120-35370iTRN28#200908-201308

FUJITSU TEN,ID=11853

86120AKNOB, RADIO RECEIVER SWITCH

main90010-22071iTRN28#200908-201308

86180TUNER ASSY, STEREO COMPONENT

main86180-50300

main86180-50310

86183DCOVER, AUDIO AMPLIFIER

86211BRACKET, RADIO, NO.1

main86211-35070iGRN28#200908-201308

86212BRACKET, RADIO, NO.2

main86212-35070iTRN28#200908-201308

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-35090

main86280-35100

main86280-35110

main86280-0W650

main86280-0WC30

8621535050BRACKET, RADIO, NO.5

main86215-35050

8621535060BRACKET, RADIO, NO.5

main86215-35060

9011906915

main90119-06915

9015350010

main90153-50010

9015960303

main90159-60303

9018906004

main90189-06004

9046705161C0

main90467-05161C0

91631J0612

main91631-J0612

9167380616

main91673-80616

16 parts on this diagram · 6 diagrams in section
