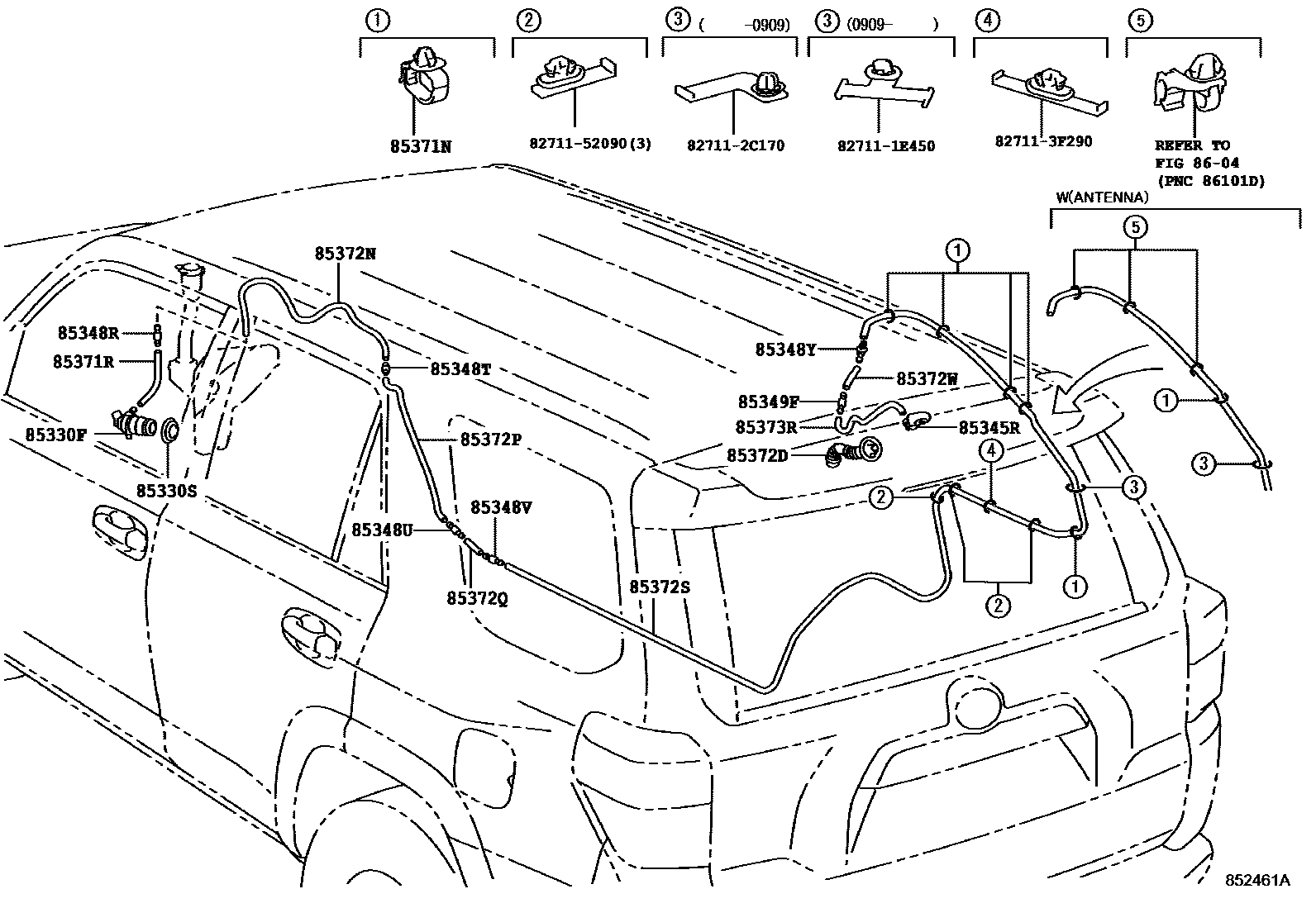

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85371NCLAMP, REAR WASHER HOSE
AUDIO-AVN+JBL&MAYDAY SYSTEM-WITH; AUDIO-JBL&MAYDAY SYSTEM-WITH
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=240); L=1450(*H,L=240),CANADA SPEC
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=1100)
L=1100
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1800(*H,L=520)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1450(*H,L=50),AUDIO-AVN+JBL&MAYDAY SYSTEM-WITH; L=1450(*H,L=50),AUDIO-JBL&MAYDAY SYSTEM-WITH
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=4300,AUDIO-AVN+JBL&MAYDAY SYSTEM-WITH; L=4300,AUDIO-JBL&MAYDAY SYSTEM-WITH
L=4195,HAWAII SPEC&SR5 PACKAGE&AUDIO-AVN & 8SPEAKER; L=4195,HAWAII SPEC&TRAIL PACKAGE(TRD OFF ROAD)&AUDIO-AVN & 8SPEAKER; L=4195,PUERTO RICO SPEC&SR5 PACKAGE&AUDIO-AVN & 8SPEAKER; L=4195,PUERTO RICO SPEC&TRAIL PACKAGE(TRD OFF ROAD)&AUDIO-AVN & 8SPEAKER; L=4195,SR5 PACKAGE&AUDIO-AVN & 8SPEAKER; L=4195,TRAIL PACKAGE(TRD OFF ROAD)&AUDIO-AVN & 8SPEAKER
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=1450(*H,L=50),AUDIO-AVN+JBL&MAYDAY SYSTEM-WITH; L=1450(*H,L=50),AUDIO-JBL&MAYDAY SYSTEM-WITH
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=240),AUDIO-AVN+JBL&MAYDAY SYSTEM-WITH; L=1450(*H,L=240),AUDIO-JBL&MAYDAY SYSTEM-WITH
8604ANTENNA
827111E450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E450
827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C170
827113F290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F290
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
23 parts on this diagram · 1 diagram in section
