REAR WIPER

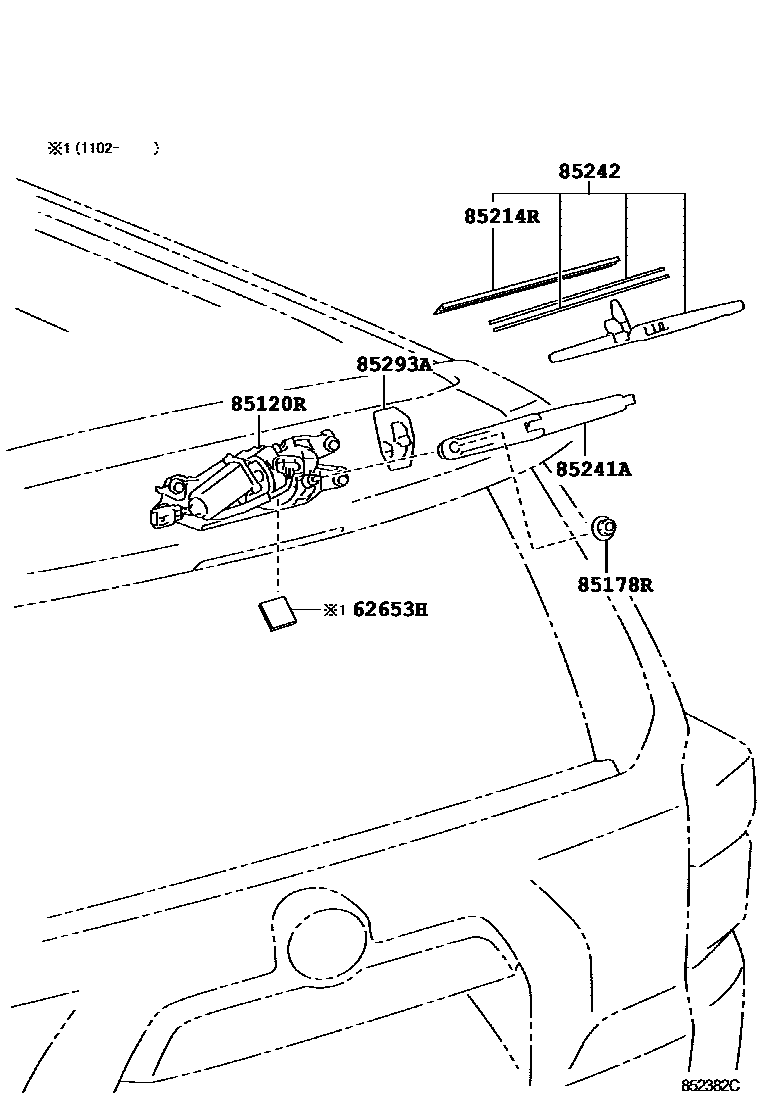

Parts diagram

62653HPACKING

main62653-35010i201102-201108

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85130-35100i200908-201102

main85130-35101i201102-201108

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06178i200908-201108

main90179-06205i202403

85214RRUBBER, REAR WIPER

main85214-42040i200908-201108

85241AARM, REAR WIPER

main85241-35060i200908-201108

85242BLADE, RR WIPER

main85242-35050i200908-201108

85293ASTOPPER,REAR WIPER

main85293-35040i200908-201108

7 parts on this diagram · 1 diagram in section
