SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE 0003 1TRANSMISSION 0004 1TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM RELAY BLOCK 0008 1COWL 0009 1COWL 0010 1COWL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL(1/2) 0013 1INSTRUMENT PANEL(2/2) 0014 1INSTRUMENT PANEL(2/2) 0015 1STEERING 0016 1STEERING 0017 1SEAT 0018 1DOOR & ROOF 0019 1FLOOR & BACK DOOR

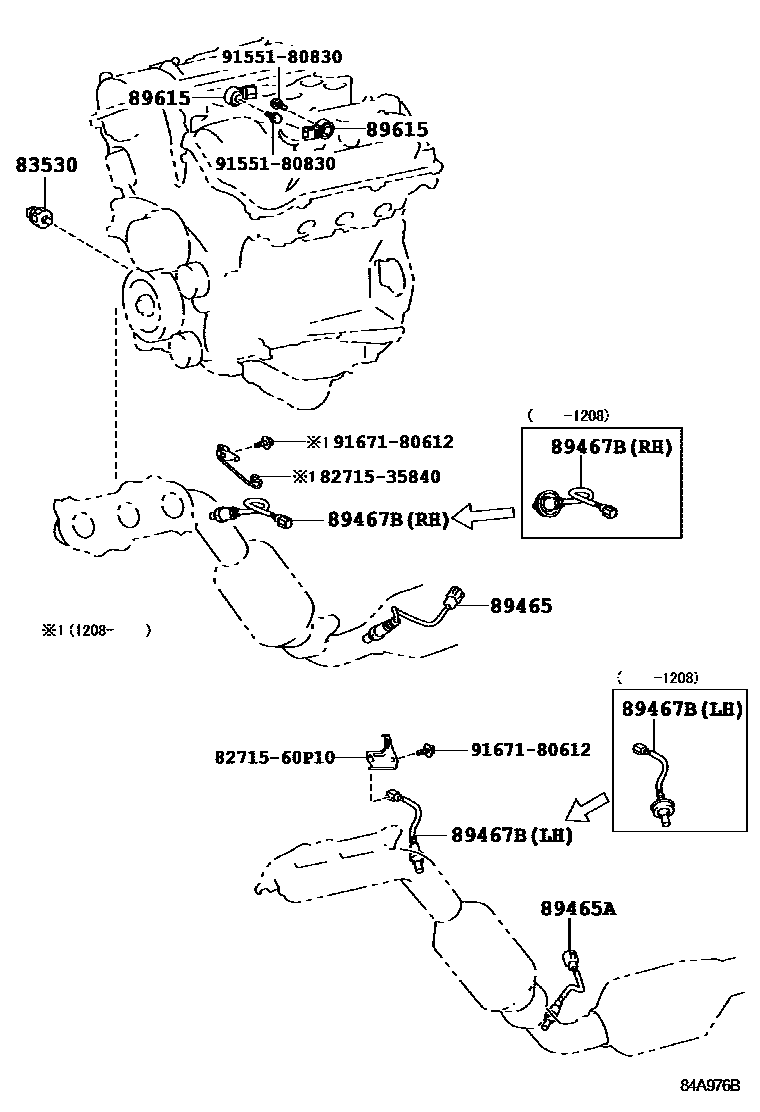

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iTRN28#200911-201108

main83530-60020iGRN28#200908-201908

89465SENSOR, OXYGEN

main89465-35780iGRN28#201208-201908

main89465-35800iGRN28#201908

main89465-50200iTRN280200911-201108

main89465-60430iGRN28#200908-201208

main89465-60440iTRN285201008-201108

89465ASENSOR, OXYGEN NO.2

main89465-35770iGRN28#201208-201908

main89465-35790iGRN28#201908

main89465-60320iGRN28#200908-201208

89467BSENSOR, AIR FUEL RATIO

main89467-35120iGRN28#201408-201908

LH

main89467-35130iGRN28#201408-201908

RH

main89467-52110iGRN28#201208-201408

LH

main89467-60050iTRN28#200911-201108

sub89467-60110

main89467-60060iGRN28#200908-201208

RH & LH

main89467-60100iGRN28#201208-201408

RH

89615SENSOR, KNOCK CONTROL

main89615-20090iGRN28#200908-201908

8271535840BRACKET,WIRING HARNESS CLAMP

main82715-35840

8271560P10BRACKET,WIRING HARNESS CLAMP

main82715-60P10

9155180830

main91551-80830

9167180612

main91671-80612

9 parts on this diagram · 19 diagrams in section
