WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1INSTRUMENT PANEL & CONSOLE BO0005 1DOOR 0006 1FLOOR,FRAME & ROOF 0007 1FLOOR,FRAME & ROOF 0008 1SEAT 0009 1CLAMP & BRACKET 0010 1CLAMP & BRACKET 0011 1CONNECTOR 1/3 0012 1CONNECTOR 2/3 0013 1CONNECTOR 3/3

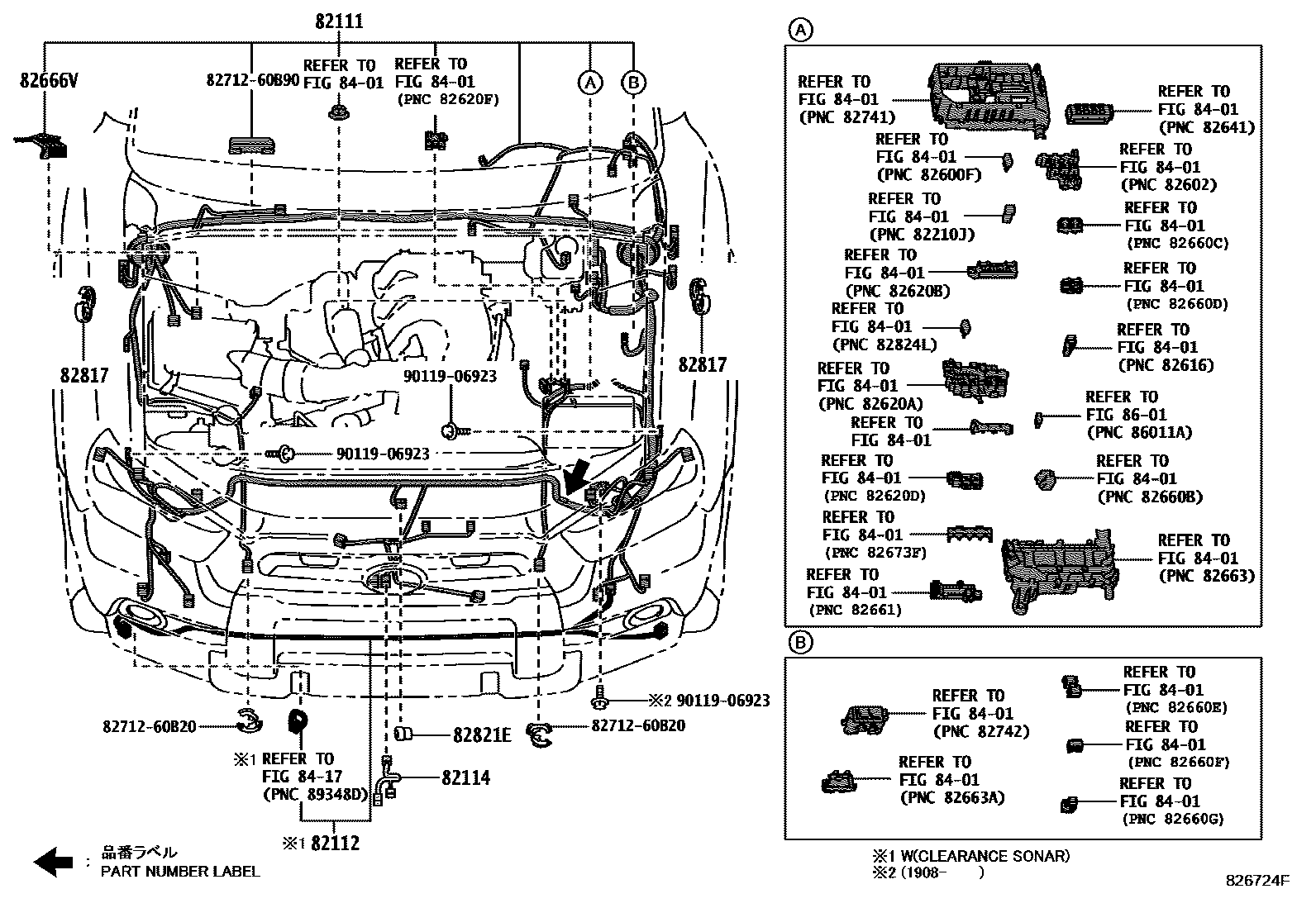

82111WIRE, ENGINE ROOM MAIN

main82111-35E30iGRN28#200908-201008

main82111-35G00iTRN280200911-201008

main82111-35K00iGRN28#201008-201110

main82111-35K60iTRN28#201008-201108

main82111-35L00iGRN285201908-202008

main82111-35L01iGRN285202008-202108

main82111-35L10iGRN280201508-201808

main82111-35L11iGRN280201808-201903

main82111-35L12iGRN280201904-201908

main82111-35L40iGRN280201908-202008

main82111-35L41iGRN280202008-202108

main82111-35M00iGRN28#201110-201208

main82111-35P00iGRN28#201208-201308

main82111-35P91iGRN285202108-202111

main82111-35P92iGRN285202111

main82111-35Q10iGRN28#201308-201508

main82111-35Q91iGRN280202108-202111

main82111-35Q92iGRN280202111

main82111-35R10iGRN285201508-201808

main82111-35R11iGRN285201808-201903

main82111-35R12iGRN285201904-201908

82112WIRE, ENGINE ROOM, NO.2

main82112-35090iGRN28#202008

82114WIRE, ENGINE ROOM, NO.4

main82114-35010

82666VHOLDER, CONNECTOR NO.15

main82666-35490iGRN28#201508-201908

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-32840iTRN28#200908-201908

82821ECOVER, CONNECTOR

main82821-35130iTRN28#200908-201908

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8271260B20CLAMP, WIRING HARNESS

main82712-60B20

8271260B90CLAMP, WIRING HARNESS

main82712-60B90

9011906923

main90119-06923

12 parts on this diagram · 13 diagrams in section
