MOULDING

51007BRACKET SUB-ASSY, SIDE STEP, NO.2

main51795-35080×2i200908-201308

LIMITED PACKAGE

51793EBRACKET SUB-ASSY, SIDE STEP, NO.1

main51793-35070×2i200908-201308

APPEARANCE PACKAGE(SR5)

51797BBRACKET SUB-ASSY, SIDE STEP, NO.3

main51797-35100×2i200908-201308

LIMITED PACKAGE

5353

5752

5851

61429REINFORCEMENT, ROCKER PANEL, NO.6

main51007-35010i200908-201308

LIMITED PACKAGE,RH

main51008-35010i201908-202108

NIGHTSHADE EDITION,LH

65333STAY, FLOOR SIDE SILL

main51783-35030i200908-201308

LIMITED PACKAGE,RH

main51784-35030i202108

TRD SPORT SPECIAL EDITION,LH

67857LPROTECTOR, REAR DOOR PANEL, RH

main67857-35050supersedes 67857-35060i201308-201908

LIMITED PACKAGE

67858EPROTECTOR, REAR DOOR PANEL, LH

main67858-35040supersedes 67858-35060i200908-201108

APPEARANCE PACKAGE(SR5)

75392ARETAINER, OUTSIDE MOULDING, NO.1

main75392-35200×14i202108-202310

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD

main75392-35220×14i202311

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD

75393RETAINER, OUTSIDE MOULDING, NO.2

main75393-35090i200908-201108

main75393-35091i202005

75394ARETAINER, OUTSIDE MOULDING, NO.3

main75394-35030i200908-201108

main75394-35031i202005

75395ACLIP, OUTSIDE MOULDING, NO.1

main75395-35070×10supersedes 75395-35070i200908-201108

75396CLIP, OUTSIDE MOULDING, NO.2

main75396-35020×22supersedes 75396-35020i200908-201108

75396ACLIP, OUTSIDE MOULDING, NO.2

main75396-35030×16i202108

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD

75396BCLIP, OUTSIDE MOULDING, NO.2

main75396-04010×2i201308-201908

LIMITED PACKAGE

75397GCLIP, OUTSIDE MOULDING, NO.3

main75397-35010×4i200908-201308

75495CCLIP, OUTSIDE MOULDING, NO.4

main75495-35010×4i200908-201108

75601AMOULDING SUB-ASSY, FRONT FENDER, RH

main53847-35903supersedes 53847-35906i200908-201212

PAINT REQ.,APPEARANCE PACKAGE(SR5)

main53847-35904supersedes 53847-35906i201212-201308

PAINT REQ.,APPEARANCE PACKAGE(SR5)

sub53847-35906

75602AMOULDING SUB-ASSY, FRONT FENDER, LH

main53848-35903supersedes 53848-35906i200908-201212

NO PAINT REQ.,LIMITED PACKAGE

main53848-35904supersedes 53848-35906i201212-201308

NO PAINT REQ.,LIMITED PACKAGE

sub53848-35906

75653AMOULDING, QUARTER, OUTSIDE REAR RH

main75653-35900supersedes 75653-35901i200908-201304

PAINT REQ.,APPEARANCE PACKAGE(SR5)

sub75653-35901

75654AMOULDING, QUARTER, OUTSIDE REAR LH

main75654-35900supersedes 75654-35901i200908-201304

PAINT REQ.,APPEARANCE PACKAGE(SR5)

sub75654-35901

75659APAD, QUARTER PANEL MOULDING, NO.1

main75659-35120×2i200908-201108

75691APAD, FRONT FENDER OUTSIDE MOULDING, RH

75692APAD, FRONT FENDER OUTSIDE MOULDING, LH

75741MOULDING, REAR DOOR, OUTSIDE RH

main75741-35900supersedes 75741-35901i200908-201305

PAINT REQ.,APPEARANCE PACKAGE(SR5)

main75741-35902supersedes 75741-35901i201305-201308

PAINT REQ.,APPEARANCE PACKAGE(SR5)

75742MOULDING, REAR DOOR, OUTSIDE LH

main75742-35900supersedes 75742-35901i200908-201305

PAINT REQ.,APPEARANCE PACKAGE(SR5)

main75742-35902supersedes 75742-35901i201305-201308

PAINT REQ.,APPEARANCE PACKAGE(SR5)

75767APAD, REAR DOOR MOULDING, NO.1

main75767-35090×2i200908-201108

75797CPAD, REAR DOOR OUTSIDE MOULDING, UPPER

main75797-35060supersedes 75797-35050i202108

TRD SPORT SPECIAL EDITION

75798BPAD, REAR DOOR OUTSIDE MOULDING, REAR

main75798-35030supersedes 75798-35020i200908-201308

LIMITED PACKAGE

75851MOULDING, ROCKER PANEL, RH

main75805-35130i201308-201908

main75805-35140-A1i200908-201110

APPEARANCE PACKAGE(SR5),WHITE PEARL CS.,070

main75805-35140-B0i200908-201110

APPEARANCE PACKAGE(SR5),SILVER ME.,1F7

main75805-35140-B1i200908-201110

APPEARANCE PACKAGE(SR5),GRAY ME.,1G3

main75805-35140-C0i200908-201110

LIMITED PACKAGE,BLACK,202

main75805-35140-D0i200910-201108

APPEARANCE PACKAGE(SR5),DK. RED M.M.,3Q3

main75805-35140-J0i200910-201110

APPEARANCE PACKAGE(SR5),GRAYISH BLUE M.M.,8V5

main75805-35150-A0i201110-201308

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD,WHITE PEARL CS.,070

main75805-35150-A1i202310

LIMITED PACKAGE,PLATINUM WHITE PEARL MC.,089

main75805-35150-B0i201110-201308

APPEARANCE PACKAGE(SR5),SILVER ME.,1F7

main75805-35150-B1i201110-201308

APPEARANCE PACKAGE(SR5)&SIDE STEP-AUTO RUNNING BOARD,GRAY ME.,1G3

main75805-35150-B2i202310

LIMITED PACKAGE,DK.GRAY,1L7

main75805-35150-C0i201110-201308

LIMITED PACKAGE,BLACK,202

main75805-35150-C1i201308-201908

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD,ATTITUDE BLACK MC.,218

main75805-35150-D0i201110-201308

APPEARANCE PACKAGE(SR5)&SIDE STEP-AUTO RUNNING BOARD,DK. RED M.M.,3Q3

main75805-35150-D1i201308-201908

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD,RED M.M.,3R3

main75805-35150-G0i202108-202208

LIMITED PACKAGE,DK.GREEN,6V7

main75805-35150-J0i201110-201308

APPEARANCE PACKAGE(SR5),GRAYISH BLUE M.M.,8V5

main75805-35150-J1i201908

LIMITED PACKAGE,DK.BLUE MC.,8S6

main75805-35170-C0i201908-202108

NIGHTSHADE EDITION,ATTITUDE BLACK MC.,070 ,1G3 ,218

main75805-35180-A0i202108

TRD SPORT SPECIAL EDITION,SUPER WHITE 2,040

main75805-35180-B0i202108

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,SILVER ME.,1F7

main75805-35180-B1i202108-202310

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,GRAY ME.,1G3

main75805-35180-B2i202310

TRD SPORT SPECIAL EDITION,DK.GRAY,1L7

main75805-35180-C0i202108

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,ATTITUDE BLACK MC.,218

main75805-35180-D0i202108

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,RED M.M.,3R3

main75805-35180-E0i202310

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,POP ORANGE CS.,4W5

main75805-35180-F0i202208-202310

TRD SPORT SPECIAL EDITION,YELLOW M.M.,5C3

main75805-35180-G0i202108-202208

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,DK.GREEN,6V7

main75805-35180-G1i202108-202310

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,URBAN KHAKI,6X3

main75805-35180-J0i202108

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,DK.BLUE MC.,8S6

75852MOULDING, ROCKER PANEL, LH

main75806-35100i200908-201308

main75806-35110-A1i200908-201110

APPEARANCE PACKAGE(SR5),WHITE PEARL CS.,070

main75806-35110-B0i200908-201110

APPEARANCE PACKAGE(SR5),SILVER ME.,1F7

main75806-35110-B1i200908-201108

APPEARANCE PACKAGE(SR5),GRAY ME.,1G3

main75806-35110-C0i200908-201110

LIMITED PACKAGE,BLACK,202

main75806-35110-D0i200910-201110

APPEARANCE PACKAGE(SR5),DK. RED M.M.,3Q3

main75806-35110-J0i200910-201110

APPEARANCE PACKAGE(SR5),GRAYISH BLUE M.M.,8V5

main75806-35120-A0i201110-201308

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD,WHITE PEARL CS.,070

main75806-35120-A1i202310

LIMITED PACKAGE,PLATINUM WHITE PEARL MC.,089

main75806-35120-B0i201110-201308

APPEARANCE PACKAGE(SR5),SILVER ME.,1F7

main75806-35120-B1i201110-201308

APPEARANCE PACKAGE(SR5)&SIDE STEP-AUTO RUNNING BOARD,GRAY ME.,1G3

main75806-35120-B2i202310

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD,DK.GRAY,1L7

main75806-35120-C0i201110-201308

LIMITED PACKAGE,BLACK,202

main75806-35120-C1i201308-201908

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD,ATTITUDE BLACK MC.,218

main75806-35120-D0i201110-201308

APPEARANCE PACKAGE(SR5)&SIDE STEP-AUTO RUNNING BOARD,DK. RED M.M.,3Q3

main75806-35120-D1i201908

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD,RED M.M.,3R3

main75806-35120-G0i202108-202208

LIMITED PACKAGE,DK.GREEN,6V7

main75806-35120-J0i201110-201308

APPEARANCE PACKAGE(SR5),GRAYISH BLUE M.M.,8V5

main75806-35120-J1i201308-201908

LIMITED PACKAGE,DK.BLUE MC.,8S6

main75806-35170-C0i201808-201908

LIMITED BLACK EDITION(DISC WHEEL=BLACK),ATTITUDE BLACK MC.,070 ,1G3 ,218

main75806-35180-A0i202108

TRD SPORT SPECIAL EDITION,SUPER WHITE 2,040

main75806-35180-B0i202108

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,SILVER ME.,1F7

main75806-35180-B1i202108-202310

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,GRAY ME.,1G3

main75806-35180-B2i202310

TRD SPORT SPECIAL EDITION,DK.GRAY,1L7

main75806-35180-C0i202108

TRD SPORT SPECIAL EDITION,ATTITUDE BLACK MC.,218

main75806-35180-D0i202108

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,RED M.M.,3R3

main75806-35180-E0i202310

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,POP ORANGE CS.,4W5

main75806-35180-F0i202208-202310

TRD SPORT SPECIAL EDITION,YELLOW M.M.,5C3

main75806-35180-G0i202108-202208

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,DK.GREEN,6V7

main75806-35180-G1i202108-202310

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,URBAN KHAKI,6X3

main75806-35180-J0i202108

TRD SPORT SPECIAL EDITION&SIDE STEP-AUTO RUNNING BOARD,DK.BLUE MC.,8S6

75861APROTECTOR, ROCKER PANEL MOULDING, NO.1

main75861-60040i201308-201908

75861DPROTECTOR, ROCKER PANEL MOULDING, NO.1

main75861-35080i201908-202108

NIGHTSHADE EDITION

75862APROTECTOR, ROCKER PANEL MOULDING, NO.2

main75862-60040i200908-201108

75862CPROTECTOR, ROCKER PANEL MOULDING, NO.2

main75862-35010i200908-201108

APPEARANCE PACKAGE(SR5)

75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3

main51718-35010×2i201908

LIMITED PACKAGE

75865BRETAINER, ROCKER PANEL MOULDING, NO.2

main75865-35010i200908-201108

APPEARANCE PACKAGE(SR5)

75866ARETAINER, ROCKER PANEL MOULDING

main75866-35020i200908-201108

APPEARANCE PACKAGE(SR5)

75867ACLIP, ROCKER PANEL MOULDING

76607DMUDGUARD SUB-ASSY, QUARTER PANEL, RH

main76628-35030i201110-201308

APPEARANCE PACKAGE(SR5)&SIDE STEP-AUTO RUNNING BOARD

76608DMUDGUARD SUB-ASSY, QUARTER PANEL, LH

main76629-35030i201110-201308

APPEARANCE PACKAGE(SR5)&SIDE STEP-AUTO RUNNING BOARD

76647FSUPPORT, QUARTER PANEL FRONT MUDGUARD, RH

main76647-35030i201110-201308

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD

76648DSUPPORT, QUARTER PANEL FRONT MUDGUARD, LH

main76648-35020i201110-201308

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD

5216120010CUSHION, REAR BUMPER GUARD, NO.1

main52161-20010

9015960602

main90159-60602

9015960603

main90159-60603

9016240035

main90162-40035

9018904059

main90189-04059

9018906006

main90189-06006

9018906065

main90189-06065

9018906067

main90189-06067

9026904047

main90269-04047

91641H0820

main91641-H0820

91671A0620

main91671-A0620

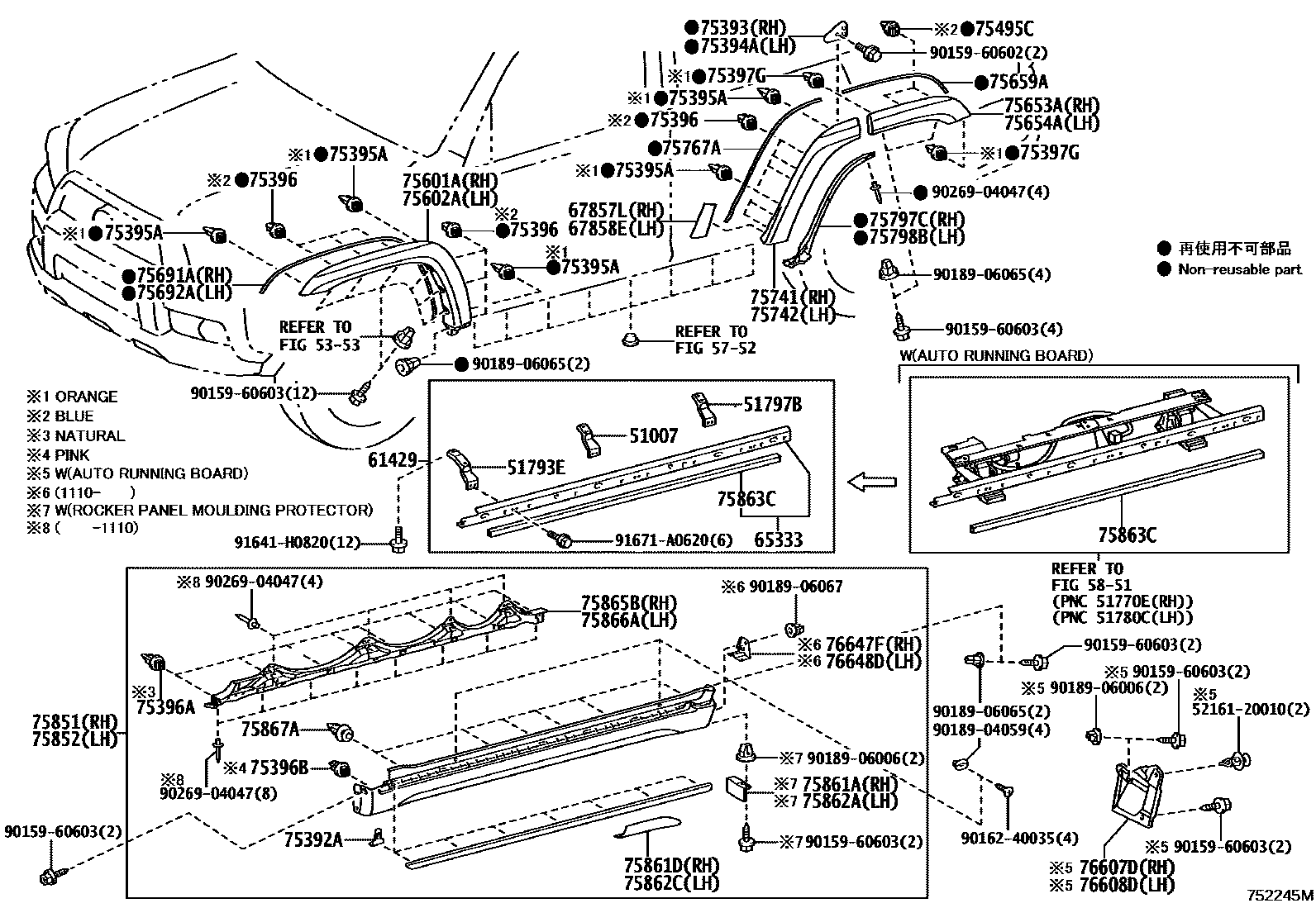

56 parts on this diagram · 4 diagrams in section
