BATTERY CARRIER

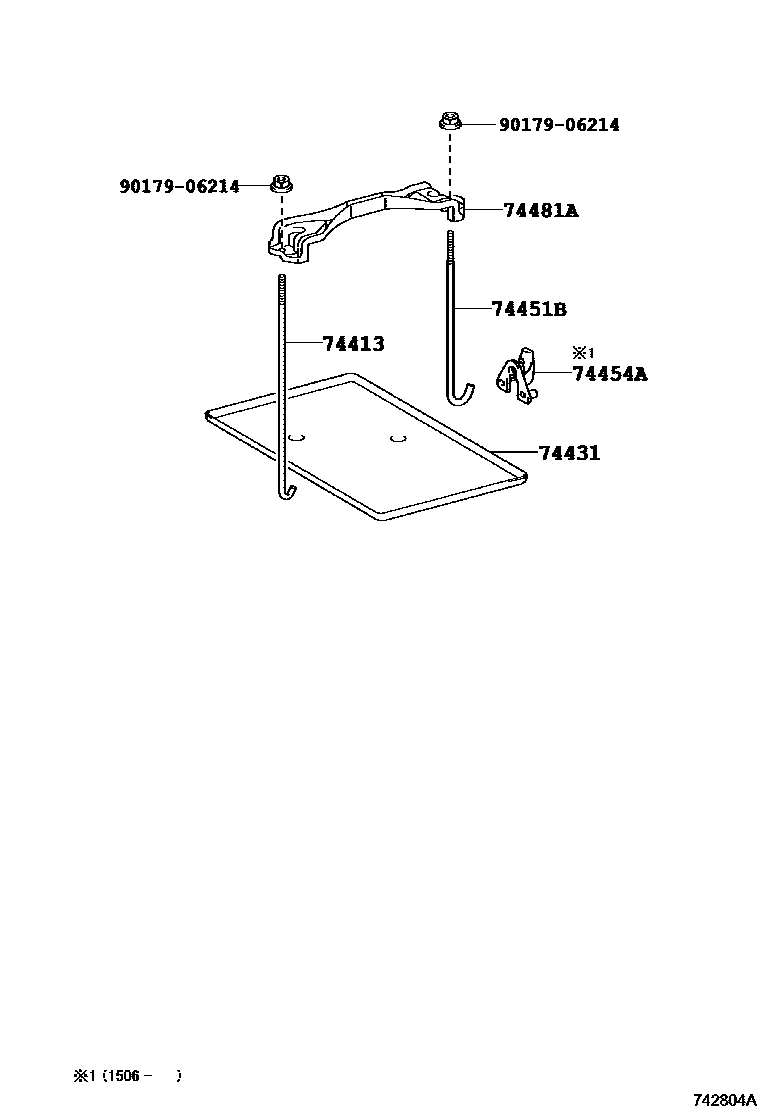

Parts diagram

74413BOLT, BATTERY CLAMP

main74451-52070i200908-201108

main74451-52071i201402-201908

74431TRAY, BATTERY

main74431-52040i200908-201108

74451BBOLT, BATTERY CLAMP

main74451-35090i200908-201108

74454ASUPPORT, BATTERY SET BOLT

main74454-60040i201506-201908

74481ACLAMP, BATTERY

main74481-26020i200908-201108

9017906214

main90179-06214

6 parts on this diagram · 1 diagram in section
