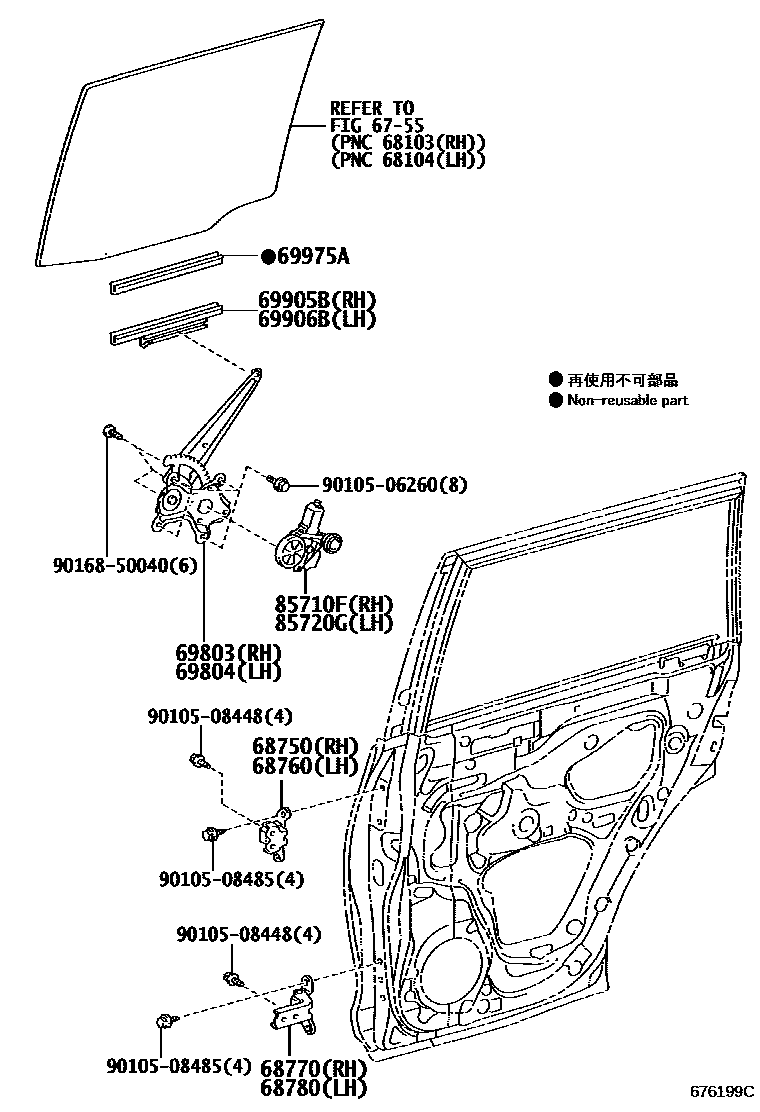

REAR DOOR WINDOW REGULATOR & HINGE

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iTRN28#200908-201108

main68750-20122iGRN28#201206-201308

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iTRN28#200908-201108

main68760-20122iGRN28#201206-201308

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iTRN28#200908-201108

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iTRN28#200908-201108

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-60070iTRN28#200908-201108

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-60070iTRN28#200908-201108

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52050iTRN28#200908-201108

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52050iTRN28#200908-201108

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iTRN28#200908-201108

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-35180iGRN28#,TRN28#200908-201102

main85720-60300iGRN28#201302-201308

main85720-60320iGRN28#201508-201908

main85720-75070iTRN28#201102-201108

85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-35200iGRN28#,TRN28#200908-201102

main85710-60330iGRN28#201302-201308

main85710-60340iGRN28#201908

main85710-75070iTRN28#201102-201108

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
