FRONT DOOR LOCK & HANDLE

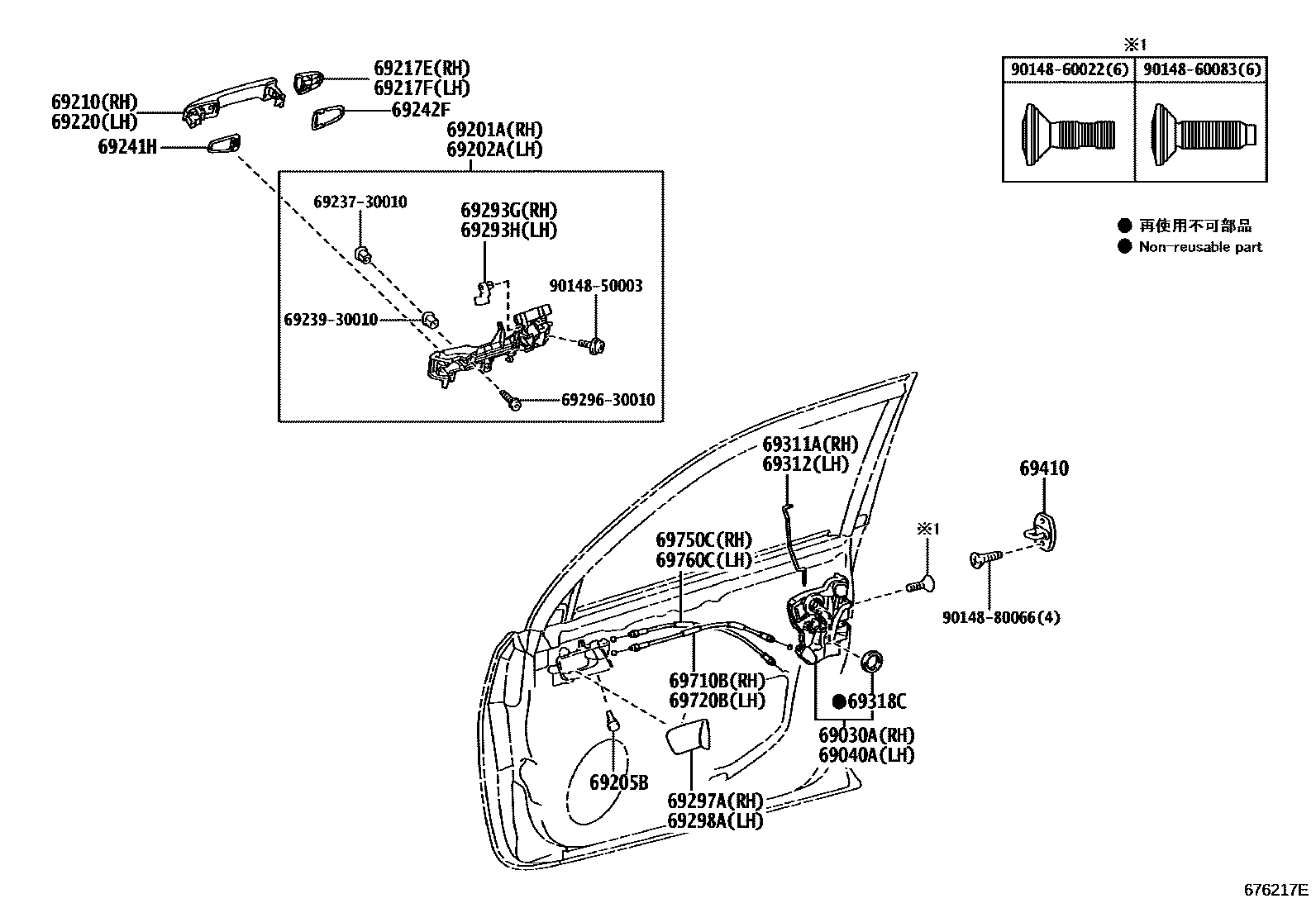

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-42230i200908-201908
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-42250i200908-201908
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-60050i200908-201408
sub69201-60090
main69201-60090i201408-202101
sub69201-60091
main69201-60091i202102
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-60020i200908-201408
sub69202-60030
main69202-60030i201408-202101
sub69202-60031
main69202-60031i202102
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014i201101-201308
main90541-04018i200908-201101
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-60260-A0i202108
SUPER WHITE 2,040
main69210-60260-B0i202108
SILVER ME.,1F7
main69210-60260-B1i202108-202310
GRAY ME.,1G3
main69210-60260-B3i202310
DK.GRAY,1L7
main69210-60260-C1i202108
ATTITUDE BLACK MC.,040 ,070 ,1F7 ,1G3 ,218 ,3R3 ,8S6
main69210-60260-D1i202108
RED M.M.,3R3
main69210-60260-E4i202208
POP ORANGE CS.,4W5
main69210-60260-E5i202310
TERRA,4Z0
main69210-60260-F0i202108-202310
YELLOW M.M.,5C3
main69210-60260-G1i202108-202208
DK.GREEN,6V7
main69210-60260-G2i202108-202310
URBAN KHAKI,6X3
main69210-60260-J1i202108
DK.BLUE MC.,8S6
main69211-60070-A0i201308-202108
SUPER WHITE 2,040
main69211-60070-A1i201808-201908
WHITE PEARL CS.,070
main69211-60070-B0i200908-202108
SILVER ME.,1F7
main69211-60070-B1i200908-202108
GRAY ME.,1G3
main69211-60070-B5i201612-202108
CEMENT GRAY ME.,1H5
main69211-60070-C0i200908-201408
BLACK,202
main69211-60070-C1i201408-201908
ATTITUDE BLACK MC.,070 ,1G3 ,218
main69211-60070-C1i201908-202108
ATTITUDE BLACK MC.,040 ,070 ,1F7 ,1G3 ,218 ,3R3 ,8S6
main69211-60070-D1i200908-201308
DK. RED M.M.,3Q3
main69211-60070-D3i201308-202108
RED M.M.,3R3
main69211-60070-E4i201411-201508
ORANGE M.M.,4X0
main69211-60070-E7i201508-201612
BEIGE,4V6
main69211-60070-G3i202008-202108
DK.GREEN,6V7
main69211-60070-J2i201308-202108
DK.BLUE MC.,8S6
main69211-60070-J4i201708-201808
GRAYISH BLUE,8W2
main69211-60070-J5i201808-201908
BLUE,8T6
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69250-60030-A0i201308-201908
SUPER WHITE 2,040
main69250-60030-A1i201808-201908
WHITE PEARL CS.,070
main69250-60030-B0i200908-201908
SILVER ME.,1F7
main69250-60030-B1i200908-202310
GRAY ME.,1G3
main69250-60030-B3i201612-202108
CEMENT GRAY ME.,1H5
main69250-60030-B4i202310
DK.GRAY,1L7
main69250-60030-C0i200908-201408
BLACK,202
main69250-60030-C2i201408-201908
ATTITUDE BLACK MC.,070 ,1G3 ,218
main69250-60030-C2i201908
ATTITUDE BLACK MC.,040 ,070 ,1F7 ,1G3 ,218 ,3R3 ,8S6
main69250-60030-D1i200908-201308
DK. RED M.M.,3Q3
main69250-60030-D2i201308-201908
RED M.M.,3R3
main69250-60030-E2i201411-201508
ORANGE M.M.,4X0
main69250-60030-E5i201508-201612
BEIGE,4V6
main69250-60030-E8i202208
POP ORANGE CS.,4W5
main69250-60030-E9i202310
TERRA,4Z0
main69250-60030-F0i202108-202310
YELLOW M.M.,5C3
main69250-60030-G3i202008-202208
DK.GREEN,6V7
main69250-60030-G4i202108-202310
URBAN KHAKI,6X3
main69250-60030-J2i201308-201908
DK.BLUE MC.,8S6
main69250-60030-J4i201708-201808
GRAYISH BLUE,8W2
main69250-60030-J5i201808-201908
BLUE,8T6
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69217-60150-A0i201308-201908
SUPER WHITE 2,040
main69217-60150-A1i201808-201908
WHITE PEARL CS.,070
main69217-60150-B0i200908-201908
SILVER ME.,1F7
main69217-60150-B1i200908-202310
GRAY ME.,1G3
main69217-60150-B3i201612-202108
CEMENT GRAY ME.,1H5
main69217-60150-B4i202310
DK.GRAY,1L7
main69217-60150-C0i200908-201408
BLACK,202
main69217-60150-C2i201408-201908
ATTITUDE BLACK MC.,070 ,1G3 ,218
main69217-60150-C2i201908
ATTITUDE BLACK MC.,040 ,070 ,1F7 ,1G3 ,218 ,3R3 ,8S6
main69217-60150-D1i200908-201308
DK. RED M.M.,3Q3
main69217-60150-D2i201308-201908
RED M.M.,3R3
main69217-60150-E2i201411-201508
ORANGE M.M.,4X0
main69217-60150-E5i201508-201612
BEIGE,4V6
main69217-60150-E8i202208
POP ORANGE CS.,4W5
main69217-60150-E9i202310
TERRA,4Z0
main69217-60150-F0i202108-202310
YELLOW M.M.,5C3
main69217-60150-G3i202008-202208
DK.GREEN,6V7
main69217-60150-G4i202108-202310
URBAN KHAKI,6X3
main69217-60150-J2i201308-201908
DK.BLUE MC.,8S6
main69217-60150-J4i201708-201808
GRAYISH BLUE,8W2
main69217-60150-J5i201808-201908
BLUE,8T6
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-60260-A0i202108
SUPER WHITE 2,040
main69210-60260-B0i202108
SILVER ME.,1F7
main69210-60260-B1i202108-202310
GRAY ME.,1G3
main69210-60260-B3i202310
DK.GRAY,1L7
main69210-60260-C1i202108
ATTITUDE BLACK MC.,040 ,070 ,1F7 ,1G3 ,218 ,3R3 ,8S6
main69210-60260-D1i202108
RED M.M.,3R3
main69210-60260-E4i202208
POP ORANGE CS.,4W5
main69210-60260-E5i202310
TERRA,4Z0
main69210-60260-F0i202108-202310
YELLOW M.M.,5C3
main69210-60260-G1i202108-202208
DK.GREEN,6V7
main69210-60260-G2i202108-202310
URBAN KHAKI,6X3
main69210-60260-J1i202108
DK.BLUE MC.,8S6
main69211-60070-A0i201308-202108
SUPER WHITE 2,040
main69211-60070-A1i201808-201908
WHITE PEARL CS.,070
main69211-60070-B0i200908-202108
SILVER ME.,1F7
main69211-60070-B1i200908-202108
GRAY ME.,1G3
main69211-60070-B5i201612-202108
CEMENT GRAY ME.,1H5
main69211-60070-C0i200908-201408
BLACK,202
main69211-60070-C1i201908-202108
ATTITUDE BLACK MC.,040 ,070 ,1F7 ,1G3 ,218 ,3R3 ,8S6
main69211-60070-C1i201408-201908
ATTITUDE BLACK MC.,070 ,1G3 ,218
main69211-60070-D1i200908-201308
DK. RED M.M.,3Q3
main69211-60070-D3i201308-202108
RED M.M.,3R3
main69211-60070-E4i201411-201508
ORANGE M.M.,4X0
main69211-60070-E7i201508-201612
BEIGE,4V6
main69211-60070-G3i202008-202108
DK.GREEN,6V7
main69211-60070-J2i201308-202108
DK.BLUE MC.,8S6
main69211-60070-J4i201708-201808
GRAYISH BLUE,8W2
main69211-60070-J5i201808-201908
BLUE,8T6
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-60060i200908-201908
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-60080i200908-201908
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i200908-201908
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i200908-201908
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
main69297-35010i200908-201908
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
main69298-35010i200908-201908
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-35070i200908-201908
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-35070i200908-201908
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i200908-201908
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-33010i200908-201908
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-60030i200908-201908
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-60030i200908-201908
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-60040i200908-201908
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-60040i200908-201908
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860022
main90148-60022
9014860083
main90148-60083
9014880066
main90148-80066

30 parts on this diagram · 1 diagram in section
