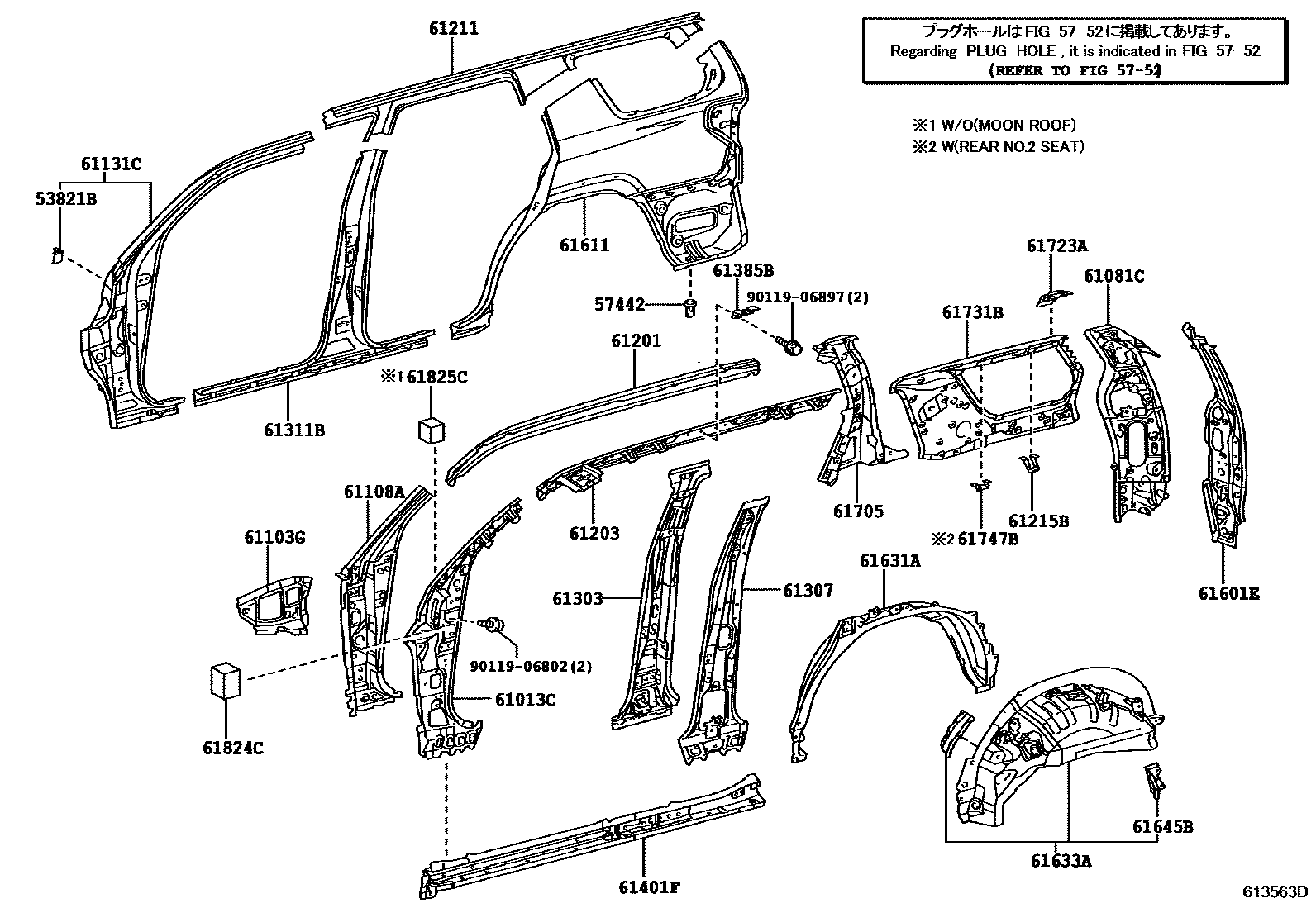

SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
57442PLUG, STEP PANEL HOLE
5752
61013CPANEL SUB-ASSY, SIDE, INNER RH
61081CREINFORCE, ROOF SIDE, INNER RH
REAR NO.2 SEAT-WITH(50:50)&ACCESSORY CONNECTOR-12V 120W & AC120V 400W
SR5 PACKAGE&REAR NO.2 SEAT-WITH(50:50)
61103GGUSSET SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211RAIL, ROOF SIDE, OUTER RH
61215BRAIL, ROOF SIDE, OUTER NO.3 RH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61311BPILLAR, CENTER BODY, OUTER RH
61385BEXTENSION, CENTER BODY PILLAR, INNER RH
61401FREINFORCEMENT SUB-ASSY, ROCKER PANEL, RH
61601EPANEL SUB-ASSY, QUARTER, OUTER RH
61611PANEL, QUARTER, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
REAR NO.2 SEAT-WITH(50:50)
REAR NO.2 SEAT-WITH(50:50)&ACCESSORY CONNECTOR-12V 120W & AC120V 400W
ACCESSORY CONNECTOR-12V 120W & AC120V 400W
sub61633-35912
SR5 PACKAGE&REAR NO.2 SEAT-WITH(50:50)
REAR NO.2 SEAT-WITH(50:50)
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61705PANEL SUB-ASSY, ROOF SIDE, INNER RH
61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61731BPANEL, ROOF SIDE, INNER RH
61747BREINFORCEMENT, ROOF SIDE, INNER REAR, RH
61824CPAD, NOISE SHUTTER, NO.1
61825CPAD, NOISE SHUTTER, NO.2
9011906802
main90119-06802
9011906897
main90119-06897
30 parts on this diagram · 2 diagrams in section
