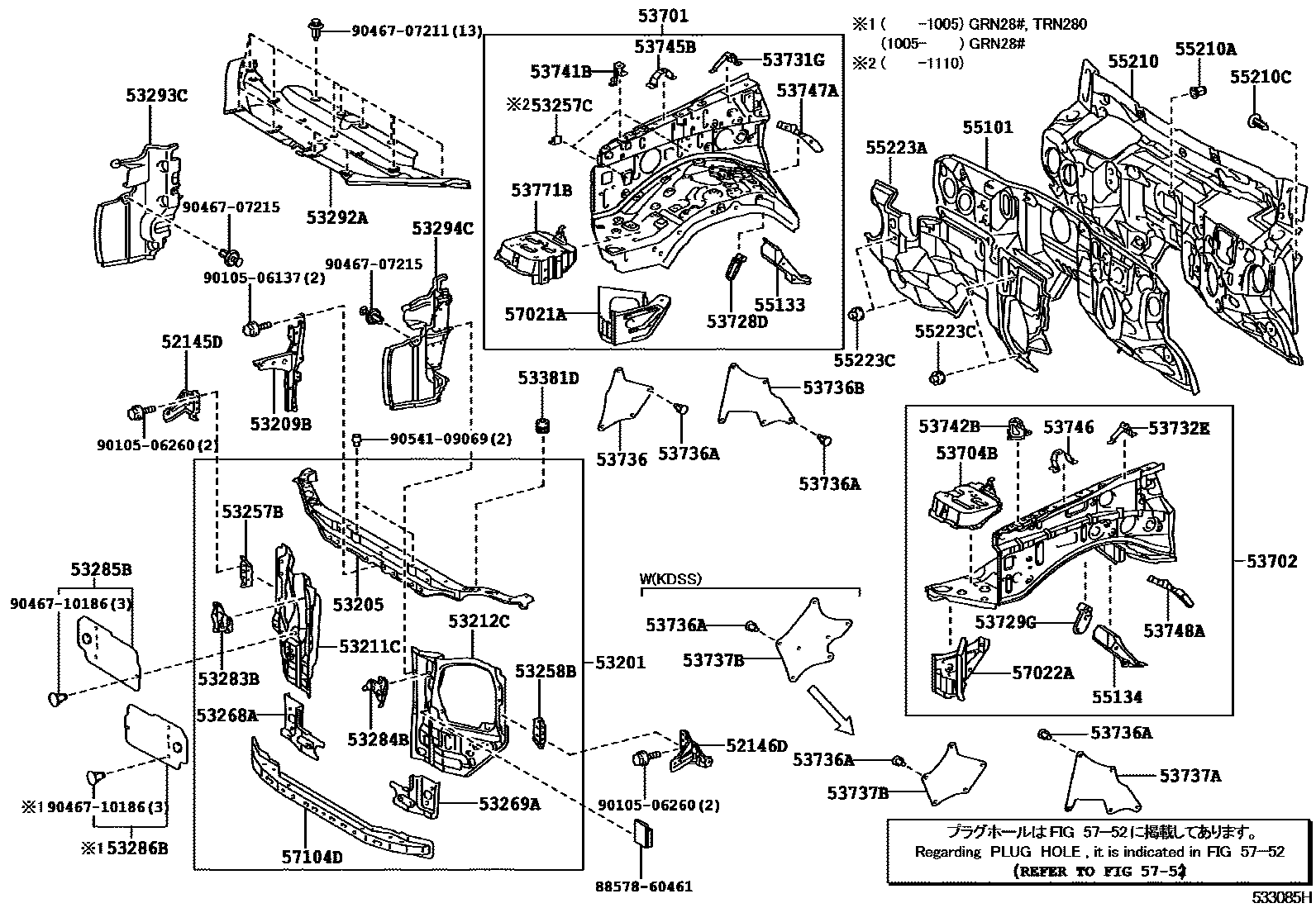

FRONT FENDER APRON & DASH PANEL
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257CBRACKET, RADIATOR SUPPORT TO FRONT FENDER, NO.2
53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53283BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 RH
53284BREINFORCEMENT, FRONT BODY MOUNTING, NO.2 LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53381DBUMPER, HOOD TO FRONT SHROUD
53728DBRACKET, FENDER APRON, RH
53729GBRACKET, FENDER APRON, LH
53731GREINFORCEMENT, FRONT FENDER APRON, RH
53732EREINFORCEMENT, FRONT FENDER APRON, LH
53736ACLIP(FOR FRONT FENDER APRON SEAL)
STABILIZER-KDSS
53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH
53741BPLATE, FENDER APRON REINFORCE, RH
53742BPLATE, FENDER APRON REINFORCE, LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
55101PANEL SUB-ASSY, DASH
55133PLATE, FRONT FENDER APRON SET, LOWER RH
55134PLATE, FRONT FENDER APRON SET, LOWER LH
55210ACLIP
55210CCLIP
55223CCLIP
BLACK
57021ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH
57022ABRACKET SUB-ASSY, BODY MOUNTING, NO.1 LH
57104DMEMBER SUB-ASSY, FRONT CROSS
5752
8857860461PAKING, COOLER AIR DUCT
main88578-60461
9010506137
main90105-06137
9010506260
main90105-06260
9046707211
main90467-07211
9046707215
main90467-07215
9046710186
main90467-10186
9054109069
main90541-09069
58 parts on this diagram · 2 diagrams in section
