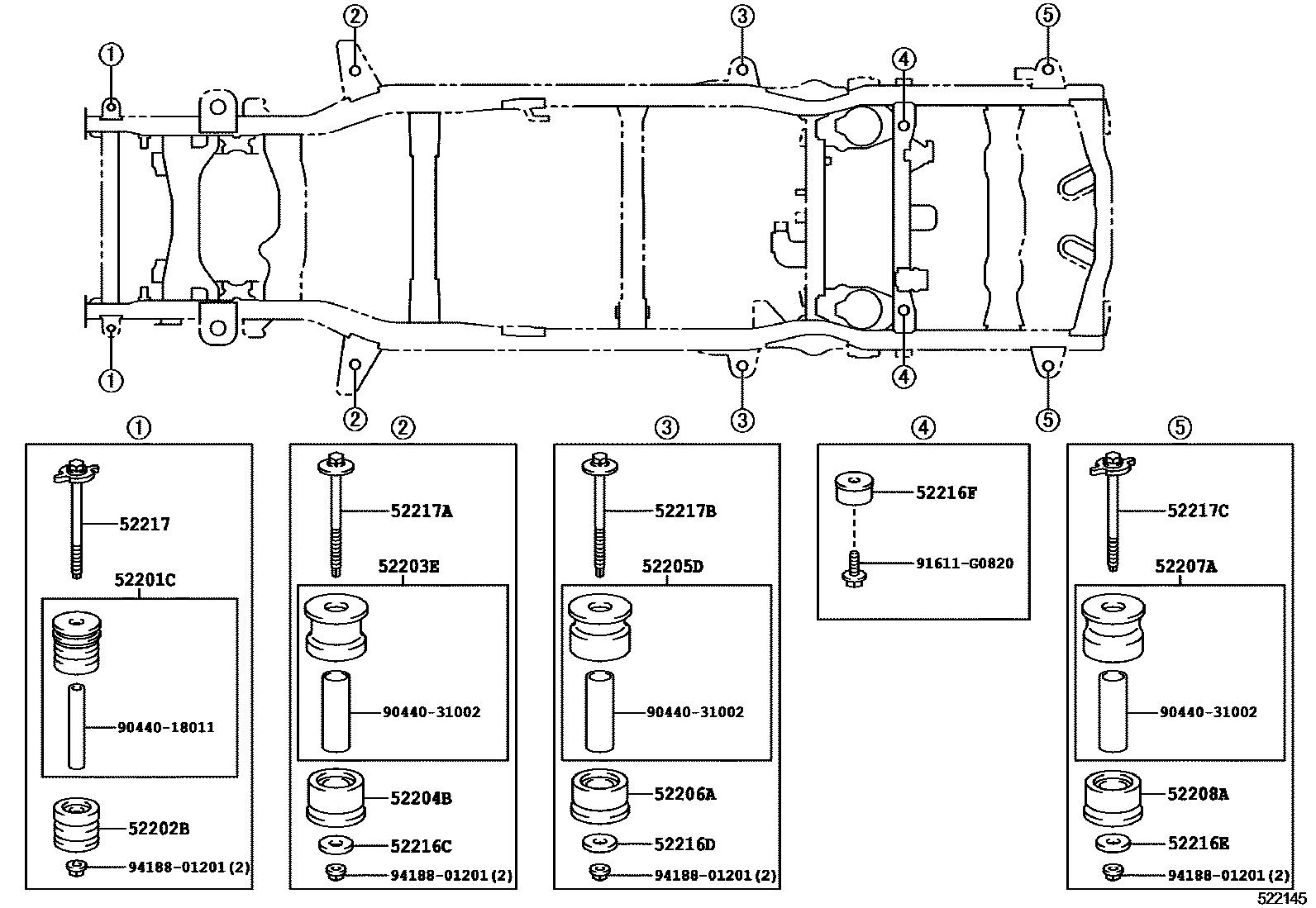

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-60070×2iTRN28#200908-201108

main52201-60090×2iGRN28#201403-201908

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-60060×2iTRN28#200908-201108

main52202-60080×2iGRN28#201403-201908

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-60100×2iTRN28#200908-201108

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-35120×2iTRN28#200908-201108

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-60050×2iTRN28#200908-201108

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-60050×2iTRN28#200908-201108

52207ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-60100×2iTRN28#200908-201108

52208ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52208-35050×2iTRN28#200908-201108

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-60040×2iTRN28#200908-201108

52216DSTOPPER, CAB MOUNTING CUSHION

main52216-60040×2iTRN28#200908-201108

52216ESTOPPER, CAB MOUNTING CUSHION

main52216-60040×2iTRN28#200908-201108

52216FSTOPPER, CAB MOUNTING CUSHION

main52216-60060×2iTRN28#200908-201108

52217BOLT, BODY MOUNTING

main52217-35180×2iTRN28#200908-201108

52217ABOLT, BODY MOUNTING

main52217-35191×2iTRN28#200908-201108

52217BBOLT, BODY MOUNTING

main52217-35191×2iTRN28#200908-201108

52217CBOLT, BODY MOUNTING

main52217-35180×2iTRN28#200908-201108

9044018011

main90440-18011

9044031002

main90440-31002

91611G0820

main91611-G0820

9418801201

main94188-01201

20 parts on this diagram · 1 diagram in section
