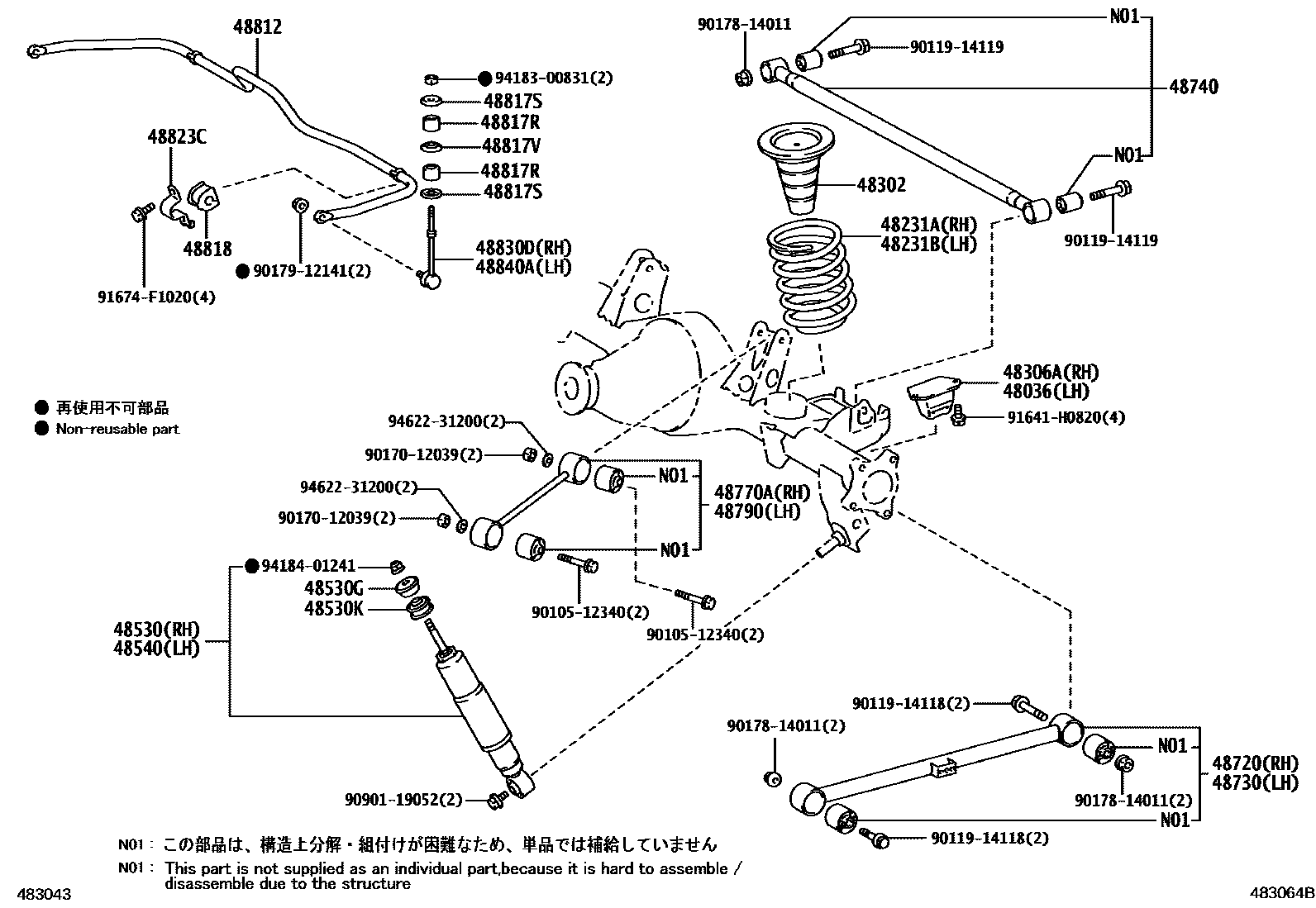

REAR SPRING & SHOCK ABSORBER
48036BUMPER SUB-ASSY, REAR SPRING, LH
48231ASPRING, COIL, REAR RH
LIMITED PACKAGE
MEXICO SPEC
NIGHTSHADE EDITION
48231BSPRING, COIL, REAR LH
NIGHTSHADE EDITION
MEXICO SPEC
NIGHTSHADE EDITION
48302SPRING SUB-ASSY, HOLLOW
48306ABUMPER SUB-ASSY, REAR SPRING, RH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-35240,MEXICO SPEC
MARK 48530-35250,TRAIL PACKAGE&STABILIZER-KDSS
MARK 48530-35170,TRD SPORT SPECIAL EDITION
MARK 48530-35181, LIMITED PACKAGE
MARK 48530-35241,TRAIL PACKAGE
MARK 48530-35251,TRAIL PACKAGE(TRD OFF ROAD)&STABILIZER-KDSS
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
NIGHTSHADE EDITION
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
LIMITED BLACK EDITION(DISC WHEEL=BLACK)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-35240,MEXICO SPEC
MARK 48530-35250,TRAIL PACKAGE&STABILIZER-KDSS
MARK 48530-35241,TRAIL PACKAGE
MARK 48530-35251,TRD PRO PACKAGE&STABILIZER-KDSS
MARK 48540-35040,LIMITED PACKAGE
MARK 48540-35051,TRD SPORT SPECIAL EDITION
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48812BAR, STABILIZER, REAR
STABILIZER-KDSS
STABILIZER-KDSS
MEXICO SPEC
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48818BUSH, STABILIZER, REAR
STABILIZER-KDSS
MEXICO SPEC
STABILIZER-KDSS
48823CCOVER, REAR STABILIZER BRACKET
48830LINK ASSY, REAR STABILIZER
STABILIZER-KDSS
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
9010512340
main90105-12340
9011914118
main90119-14118
9011914119
main90119-14119
9017012039
main90170-12039
9017814011
main90178-14011
9017912141
main90179-12141
9090119052
main90901-19052
91641H0820
main91641-H0820
91674F1020
main91674-F1020
9418300831
main94183-00831
9418401241
main94184-01241
9462231200
main94622-31200
35 parts on this diagram · 5 diagrams in section
