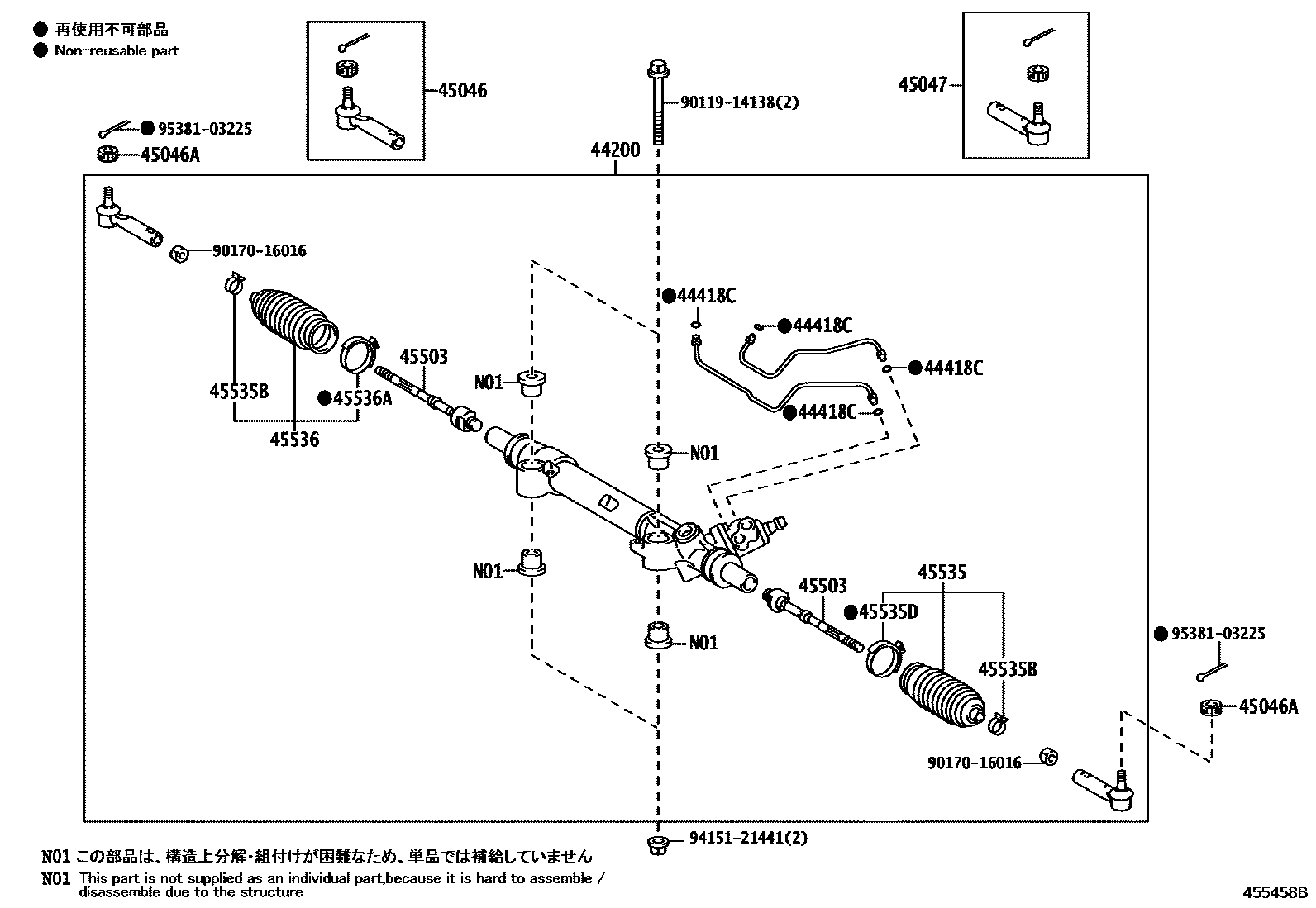

FRONT STEERING GEAR & LINK

44200LINK ASSY, POWER STEERING

main44200-35090iGRN28#,TRN280200908-200912

main44200-35091iGRN28#201001-201111

main44200-35092iGRN28#201112-201308

main44200-35093iGRN28#201403-201505

main44200-35094iGRN28#201506-201908

main44200-60230iGRN28#200908-201110

MEXICO SPEC

44418CRING, O(FOR STEERING TURN PRESSURE TUBE)

main90301-03001×4iGRN28#200908-201308

45046END SUB-ASSY, TIE ROD, RH

main45046-69245iGRN28#200908-201308

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14042×2iGRN28#200908-201308

45047END SUB-ASSY, TIE ROD, LH

main45046-69245iGRN28#200908-201308

45503END SUB-ASSY, STEERING RACK

main45503-35070×2iGRN28#200908-201308

main45503-60040×2iGRN28#200908-201110

MEXICO SPEC

45535BOOT, STEERING RACK, NO.1

main45535-69025iGRN28#200908-201308

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iGRN28#200908-201308

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-60008iGRN28#200908-201308

45536BOOT, STEERING RACK, NO.2

main45535-69015iGRN28#200908-201308

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-60008iGRN28#200908-201308

9011914138

main90119-14138

9017016016

main90170-16016

9415121441

main94151-21441

9538103225

main95381-03225

15 parts on this diagram · 1 diagram in section
