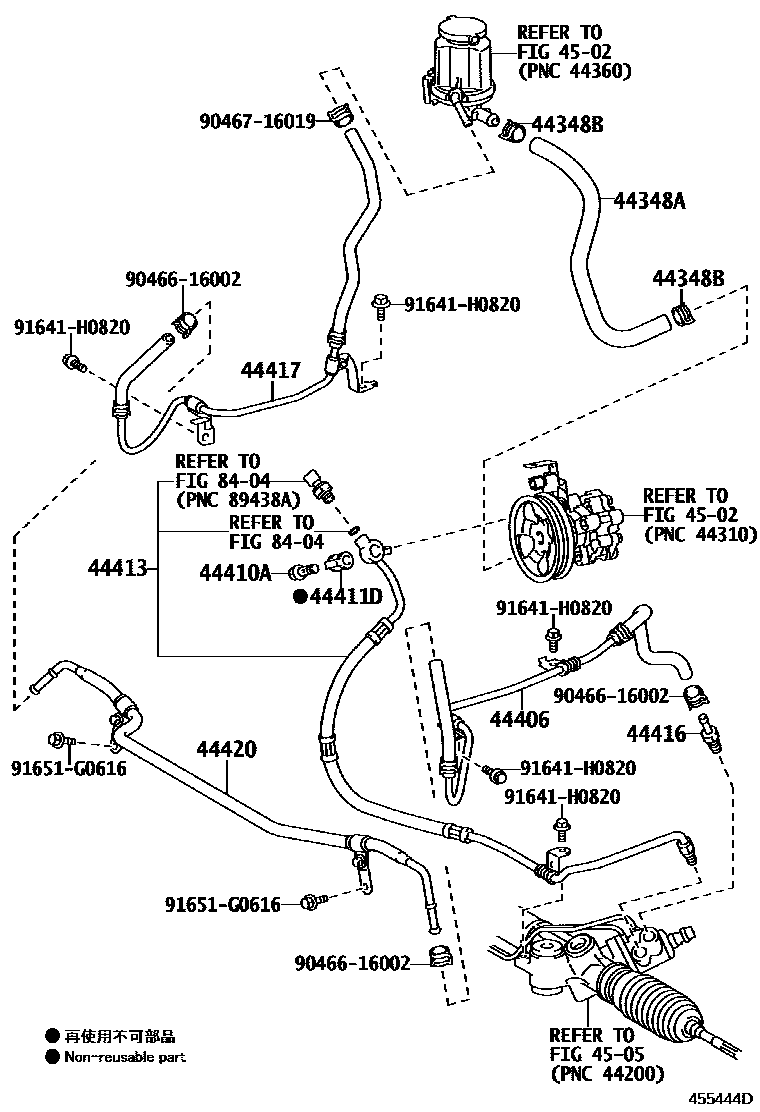

POWER STEERING TUBE

0001 1 0002 1KINETIC DYNAMIC SUSPENSION SY0003 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-60430iGRN28#200908-201908

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90467-21010iGRN28#200908-201908

main96137-42501iGRN28#201908

44406TUBE SUB-ASSY, RETURN

main44406-60020iGRN28#200908-201010

main44406-60021iGRN28#201011-201908

44410TUBE ASSY, PRESSURE FEED

main44410-60790iTRN28#200911-201108

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16034iTRN28#200908-201908

44411DGASKET(FOR PRESSURE FEED HOSE)

main44327-30040iTRN28#200908-201908

44413TUBE, PRESSURE FEED, NO.1

main44413-60110iGRN28#200908-201908

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-60450iTRN28#200908-201908

44417TUBE, RETURN, NO.2

main44417-60010iGRN28#200908-201908

44420COOLER ASSY, OIL

main44420-60501iGRN28#200908-201908

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9046616002

main90466-16002

9046716019

main90467-16019

91641H0820

main91641-H0820

91651G0616

main91651-G0616

17 parts on this diagram · 3 diagrams in section
