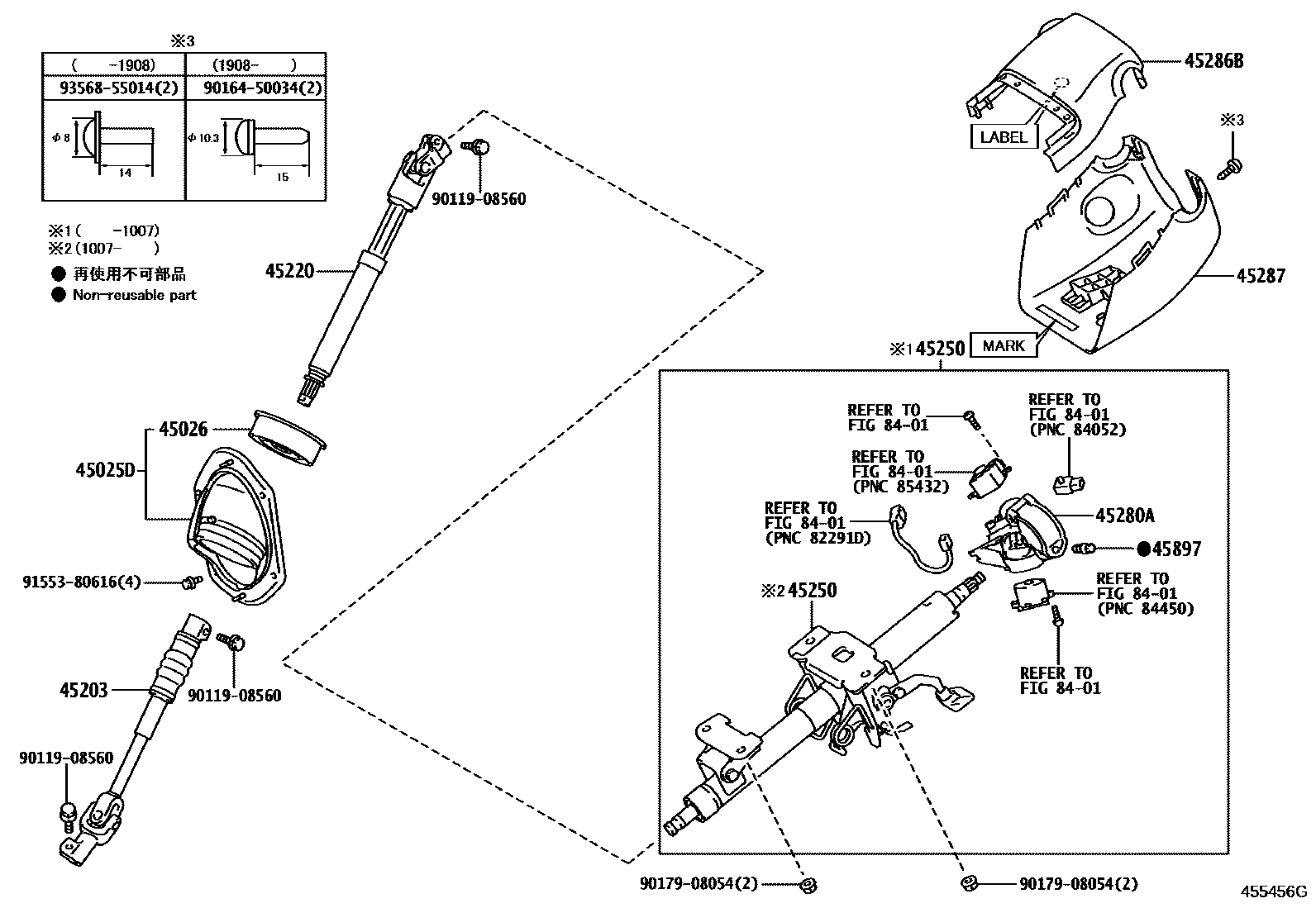

STEERING COLUMN & SHAFT

0001 1W/O(PUSH START SWITCH) 0002 1W(PUSH START SWITCH) 0003 1W(PUSH START SWITCH)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-60210iTRN28#200908-201108

main45025-60211iGRN28#201301-201308

main45025-60212iGRN28#201811-201908

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-60040iTRN28#200908-201108

main45026-60041iGRN28#201301-201308

45203SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2

main45203-60180iTRN28#200908-201108

main45203-60181iGRN28#201312-201908

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-60280iTRN28#200908-201108

45250COLUMN ASSY, STEERING

main45250-35A00iGRN28#,TRN280200908-201006

main45250-35A50iTRN28#201007-201108

main45250-35A30supersedes 45250-35A70iGRN28#200908-201007

LIMITED PACKAGE

main45250-35A51supersedes 45250-35A61iGRN28#202108-202208

WIRELESS DOOR LOCK-WITH

main45250-35A60supersedes 45250-35A70iGRN28#201007-201109

LIMITED PACKAGE

main45250-35A61iGRN28#201808-201908

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-42130iTRN28#200908-201108

45286BCOVER, STEERING COLUMN, UPR

main45286-35500-C0iGRN28#,TRN28#200908-201010

BLACK,TRIM1#,4#,W/O(LABEL)

main45286-60500-C0iTRN28#201010-201108

BLACK,TRIM1#,4#,W(LABEL)

45287COVER, STEERING COLUMN, LWR

main45287-35400-C0iGRN28#,TRN28#200908-201010

BLACK,TRIM1#,4#,MARK 45287-35400

main45287-60520-C0supersedes 45287-60530-C0iGRN28#201010-201308

BLACK,TRIM1#,4#,MARK 45287-60520

main45287-35410-C0iGRN28#200908-201010

LIMITED PACKAGE,BLACK,TRIM2#,MARK 45287-35410

main45287-60530-C0iGRN28#201808-201908

LIMITED BLACK EDITION(DISC WHEEL=BLACK),BLACK,TRIM2#,4#

45897BOLT, STEERING LOCK SET

main45897-12020iTRN28#200908-201108

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9016450034

main90164-50034

9017908054

main90179-08054

9155380616

main91553-80616

9356855014

main93568-55014

15 parts on this diagram · 3 diagrams in section
