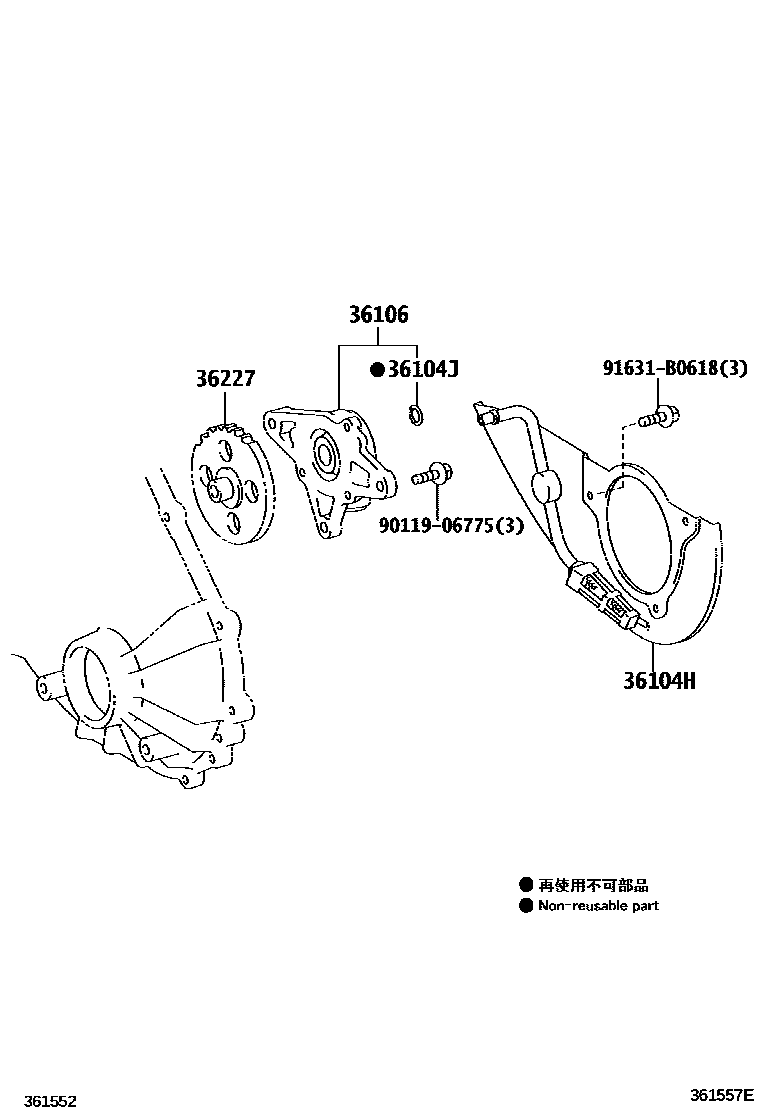

TRANSFER OIL PUMP

36104HSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-35021iTRN285200908-201108

main36104-35050iGRN285201808-201908

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

36104JRING, O (FOR TRANSFER OIL PUMP BODY)

main96721-19009iTRN285200908-201108

36106BODY SUB-ASSY, TRANSFER OIL PUMP

main36106-35031iTRN285200908-201108

main36106-35050supersedes 36106-35070iGRN285200908-201308

LIMITED PACKAGE

main36106-35070iGRN285202303-202408

LIMITED PACKAGE

main36106-60020supersedes 36106-35070iGRN285202303

LIMITED PACKAGE

36227GEAR, TRANSFER OIL PUMP

main36227-35020iTRN285200908-201108

main36227-35021iGRN285202305-202408

LIMITED PACKAGE

main36227-35030supersedes 36227-35021iGRN285201908

LIMITED PACKAGE

9011906775

main90119-06775

91631B0618

main91631-B0618

6 parts on this diagram · 1 diagram in section
