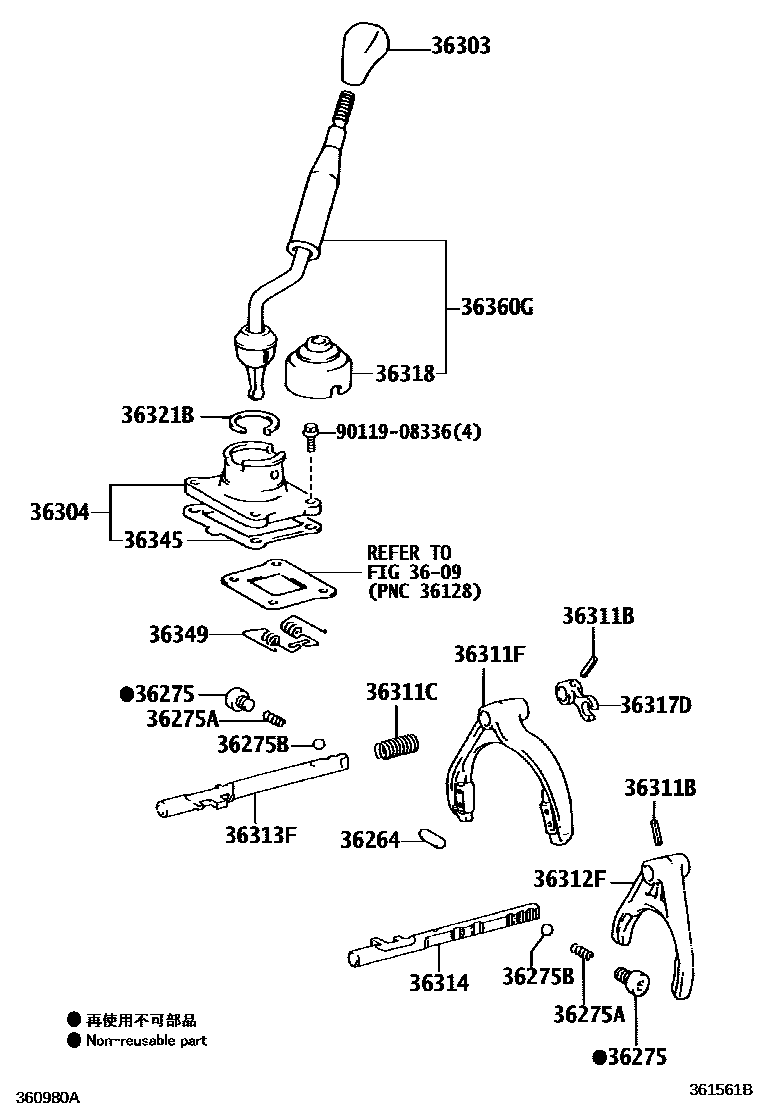

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1 0003 1 0004 1LIMITED PACKAGE 0005 1TRAIL PACKAGE OR TRD-PRO 0006 1LIMITED BLACK EDITION 0007 1TRD OFF ROAD PREMIUM OR SR5 S0008 1

3609

36264PIN OR ROLLER, SHIFT INTER-LOCK

main90250-10020supersedes 90250-06007iGRN285200908-201208

L=25.7,OD=9.53

36275PLUG, SHIFT DETENT BALL SPRING

main90341-12014×2iTRN285200908-201108

36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-16116×2supersedes 90501-18091iGRN285200908-201208

L=23

36275BBALL, SHIFT DETENT

main90360-10003×2supersedes 90360-10003iTRN285200908-201108

OD=9.52,STEEL

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-35210-B0supersedes 36303-35200-B0iTRN285200908-201108

SR5 PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#,4#

main36303-35210-B1iGRN285201908

TRD PRO PACKAGE,DK.GRAY & SILVER ME.,TRIM2#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main36304-35051iTRN285201008-201108

main36304-35061iGRN285200908-201208

LIMITED PACKAGE

36311BPIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)

main90254-05001×4iTRN285201008-201108

L=22

36311CSPRING, COMPRESION (FOR SHIFT FORK)

main90501-20088iTRN285200908-201108

36311FFORK, TRANSFER GEAR SHIFT, NO.1

main36311-35030supersedes 36311-34011iTRN285200908-201108

36312FFORK, TRANSFER GEAR SHIFT, NO.2

main36312-35040supersedes 36312-34011iGRN285200908-201208

LIMITED PACKAGE

main36302-35011supersedes 36312-34011iGRN285201308-201908

LIMITED PACKAGE

36313FSHAFT, TRANSFER FRONT DRIVE SHIFT FORK

main36313-35070supersedes 36313-34011iGRN285200908-201208

LIMITED PACKAGE

main36313-35080iTRN285201008-201108

36314SHAFT, TRANSFER HIGH AND LOW SHIFT FORK

main36314-35110iTRN285201008-201108

main36314-35140iGRN285200908-201208

LIMITED PACKAGE

36317DSTOPPER, NO.2, TRANSFER SHIFT SHAFT

main36317-35030iTRN285200908-201108

36318BOOT, TRANSFER FRONT DRIVE SHIFT

main33555-35190iGRN285200908-201208

LIMITED PACKAGE

36321BRING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER)

main90521-49003iTRN285200908-201108

36345GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER

main36345-35040iTRN285201008-201108

main36345-35050iGRN285200908-201208

LIMITED PACKAGE

36349SPRING, TRANSFER SELECT RETURN

main36349-35010iGRN285200908-201208

LIMITED PACKAGE

main36349-35020iTRN285201008-201108

36360GLEVER ASSY, TRANSFER HIGH & LOW SHIFT

main36360-35610iGRN285200908-201208

main36360-35620iTRN285201008-201108

9011908336

main90119-08336

20 parts on this diagram · 8 diagrams in section
