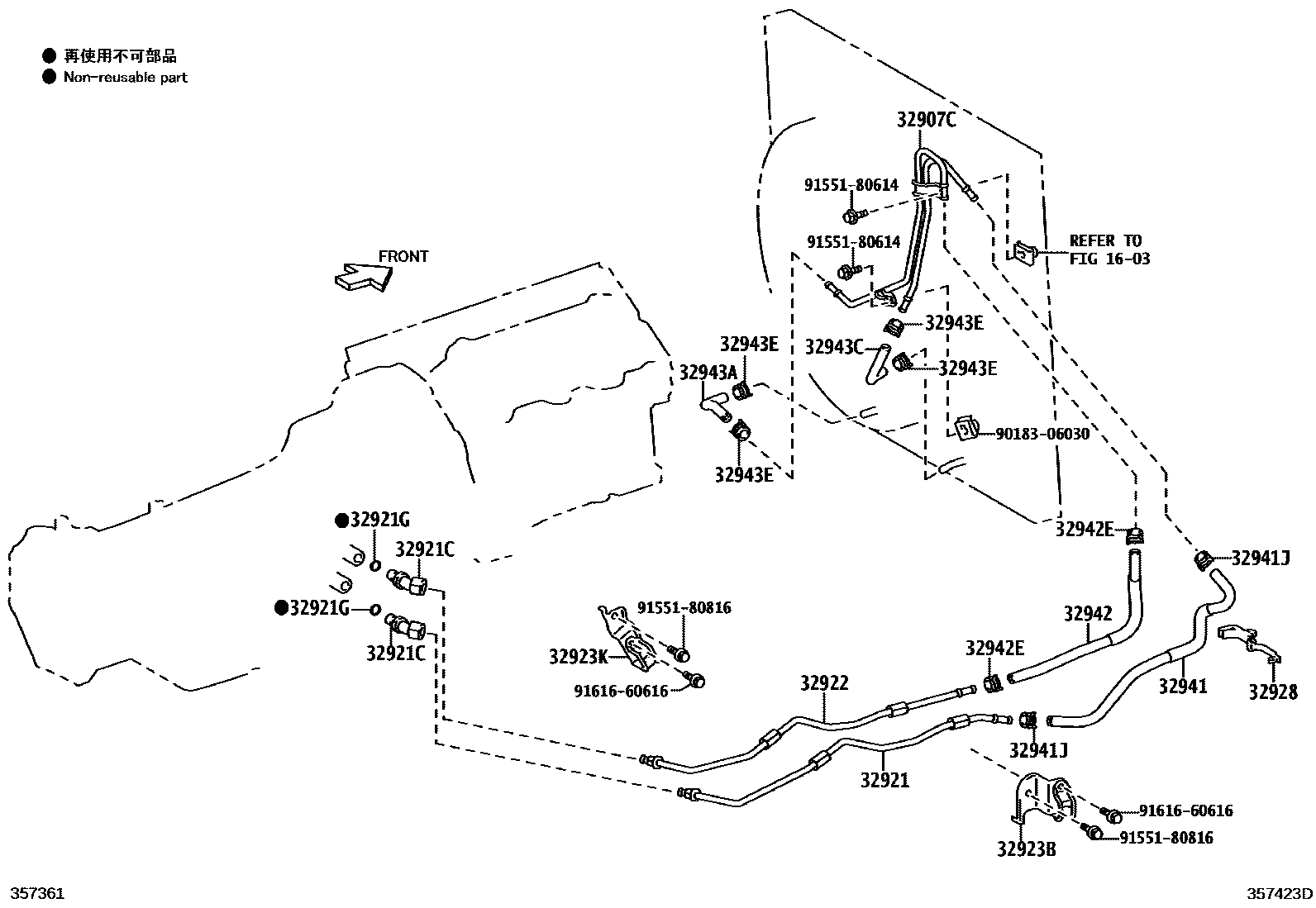

OIL COOLER & TUBE (ATM)

0001 1A750E,A750F 0002 1A343E,A343F

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

main32907-60280iGRN28#200908-201308

main32907-60300iTRN28#200911-201108

32921TUBE, OIL COOLER INLET, NO.1

main32921-60240iTRN28#200911-201108

main32921-60400iGRN28#200908-201308

32921CUNION(FOR OIL COOLER TUBE)

main90407-16009×2iGRN28#200908-201308

main90407-16012iTRN280200911-201108

NO.2

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11030×2iGRN28#200908-201308

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-60260iTRN28#200911-201108

main32922-60430iGRN28#200908-201308

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32909-60130iGRN28#200908-201308

main32909-60180iTRN28#200911-201108

32923KCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2

main32909-60160iGRN28#200908-201308

main32909-60171iTRN28#200911-201108

32928CLAMP, FLEXIBLE HOSE, NO.1

main32928-34030iGRN28#200908-201308

main32928-60100iTRN28#200911-201108

32941HOSE, OIL COOLER INLET, NO.1

main32941-60370iGRN28#200908-201308

main90445-17124iTRN28#200911-201108

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×2iGRN28#200908-201308

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-60510iTRN28#200911-201108

main32942-60530iGRN28#200908-201308

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004×2iGRN28#200908-201308

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-60550iTRN28#200911-201108

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-60560iTRN28#200911-201108

main32943-60600iGRN28#200908-201308

32943CHOSE, TRANSMISSION OIL COOLER, NO.3

main90445-17074iGRN28#200908-201308

32943ECLIP, NO.3(FOR OIL COOLER HOSE)

main90466-16004×4iGRN28#200908-201308

9018306030

main90183-06030

9155180614

main91551-80614

9155180816

main91551-80816

9161660616

main91616-60616

21 parts on this diagram · 2 diagrams in section
