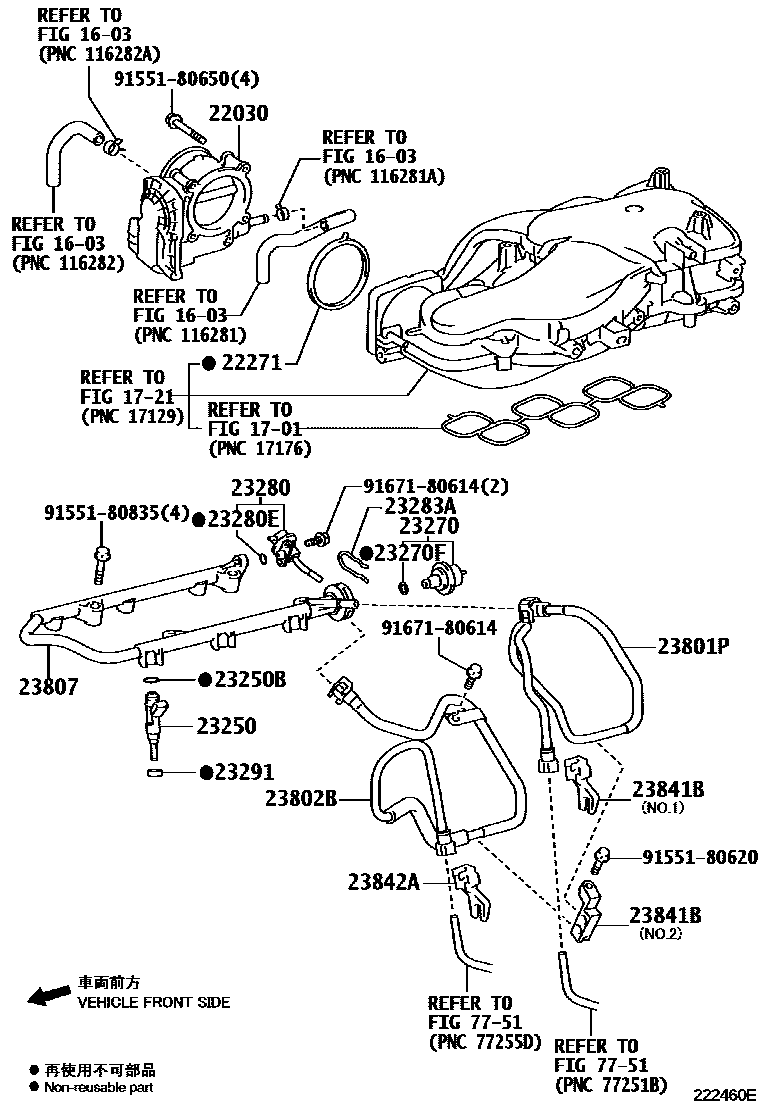

FUEL INJECTION SYSTEM
1603
1701
1721
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
23250BRING, O(FOR FUEL INJECTOR)
23270FRING, O(FOR PULSATION DAMPER)
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23283AHOLDER, FUEL PRESSURE REGULATOR
23291INSULATOR, INJECTOR VIBRATION
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
NO.1
NO.2
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
7751
9155180620
main91551-80620
9155180650
main91551-80650
9155180835
main91551-80835
9167180614
main91671-80614
23 parts on this diagram · 2 diagrams in section
