AIR CLEANER

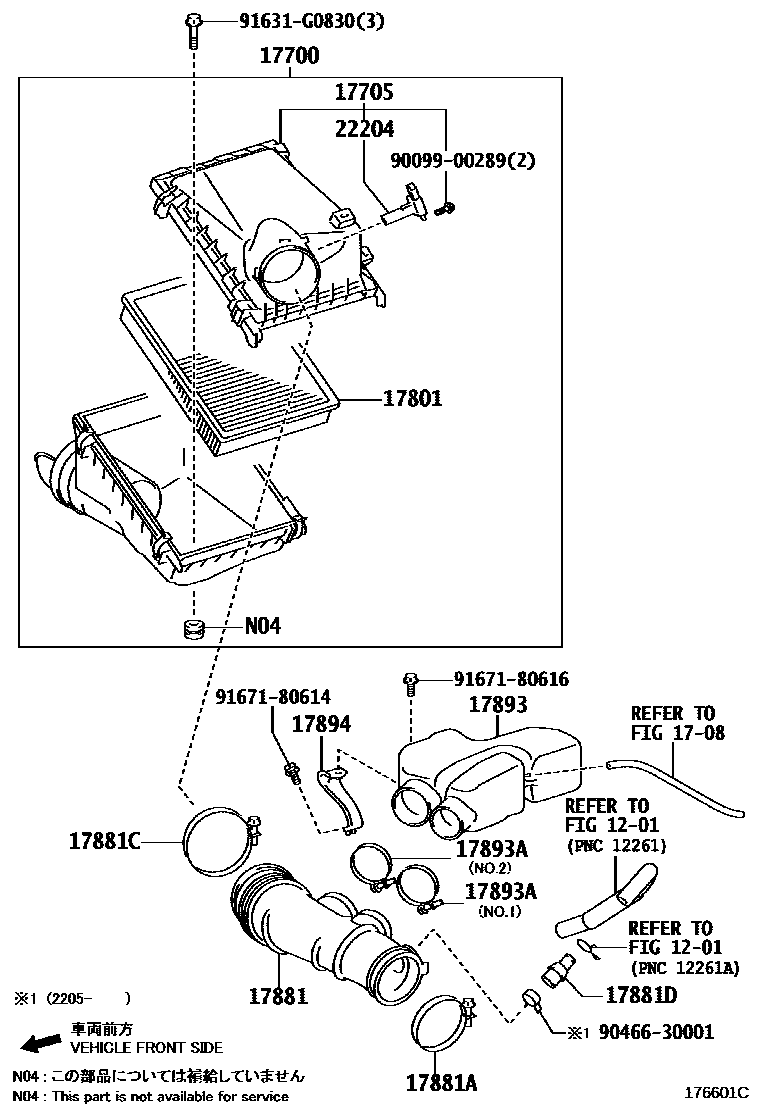

Parts diagram
1201
1708
17700CLEANER ASSY, AIR
main17700-31860i200908-201103
sub17700-31861
main17700-31861i201104-202208
main17700-31862i202208
main17700-75540i200911-201108
17705CAP SUB-ASSY, AIR CLEANER
main17705-31371i202208
main17705-31380i200908-201103
sub17705-31381
main17705-31381i201104-202208
main17705-75340i200911-201108
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
main17801-38050i200908-201106
sub17801-38051
main17801-38051i201107-201908
main17801-50040i200911-201108
17881HOSE, AIR CLEANER, NO.1
main17881-31250i200908-201908
main17881-75211i200911-201108
sub17881-75212
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
main96111-30800i200911-201108
NO.1
main96111-30900i200911-201108
NO.2
main96111-30900i200908-201908
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
main96111-31060i200908-201908
17881DTUBE, UNION(FOG AIR CLEANER HOSE)
main90904-06008i200908-201908
17893RESONATOR, INTAKE AIR
main17893-31130i200908-201908
main17893-75090i200911-201108
17893ACLAMP, HOSE
main96111-10650i200908-201002
NO.1
main96111-10690i201003-201908
NO.1
main96111-10750i200908-201908
NO.2
main96134-52600i200911-201108
17894BRACKET, RESONATOR
main17894-31050i200908-201908
22204METER SUB-ASSY, INTAKE AIR FLOW
main22204-0T040i201104-201908
MARK 22204-0T040
sub22204-28010
main22204-0V010i201104-201908
MARK 22204-0V010
sub22204-0V020
main22204-0V020i201104-201908
MARK 22204-0V020
main22204-28010i201104-201908
MARK 22204-28010
main22204-37010i200908-201104
sub22204-28010
main22204-75030i200911-201108
9009900289
main90099-00289
9046630001
main90466-30001
91631G0830
main91631-G0830
9167180614
main91671-80614
9167180616
main91671-80616

18 parts on this diagram · 2 diagrams in section
