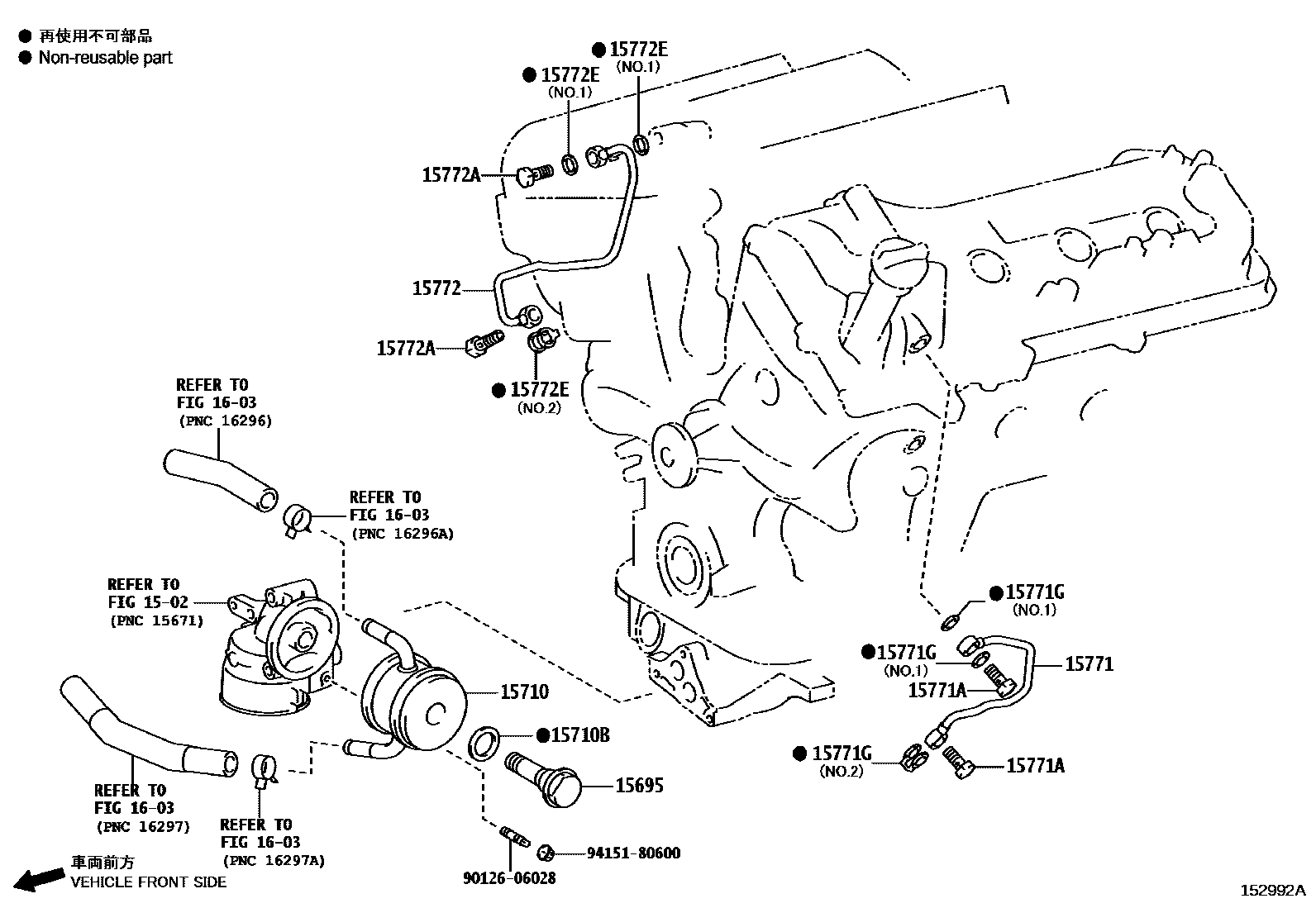

ENGINE OIL COOLER

0001 1 0002 1

1502OIL FILTER

→ Go to FIG 15-02

15695BOLT, OIL COOLER UNION

main15695-62010i1GRFE..GRN28#200908-202011

15710COOLER ASSY, OIL

main15710-31040i1GRFE..GRN28#200908-202011

main15710-31100i1GRFE..GRN28#202011-202109

main15710-31101i1GRFE..GRN28#202109

15710BRING, O(FOR OIL COOLER)

main15785-31050i1GRFE..GRN28#202011

main90210-22001i1GRFE..GRN28#200908-202011

15771PIPE, OIL, NO.1

main15771-31010i1GRFE..GRN28#200908-201908

15771AUNION(FOR OIL PIPE)

main90401-16043i1GRFE..GRN28#200908-201908

15771GGASKET

main90430-16012i1GRFE..GRN28#200908-201908

NO.1

main90430-16016i1GRFE..GRN28#200908-201908

NO.2

15772PIPE, OIL, NO.2

main15772-31010i1GRFE..GRN28#200908-201908

15772AUNION(FOR OIL PIPE)

main90401-16043i1GRFE..GRN28#200908-201908

15772EGASKET(FOR OIL PIPE)

main90430-16012i1GRFE..GRN28#200908-201908

NO.1

main90430-16016i1GRFE..GRN28#200908-201908

NO.2

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9012606028

main90126-06028

9415180600

main94151-80600

13 parts on this diagram · 2 diagrams in section
