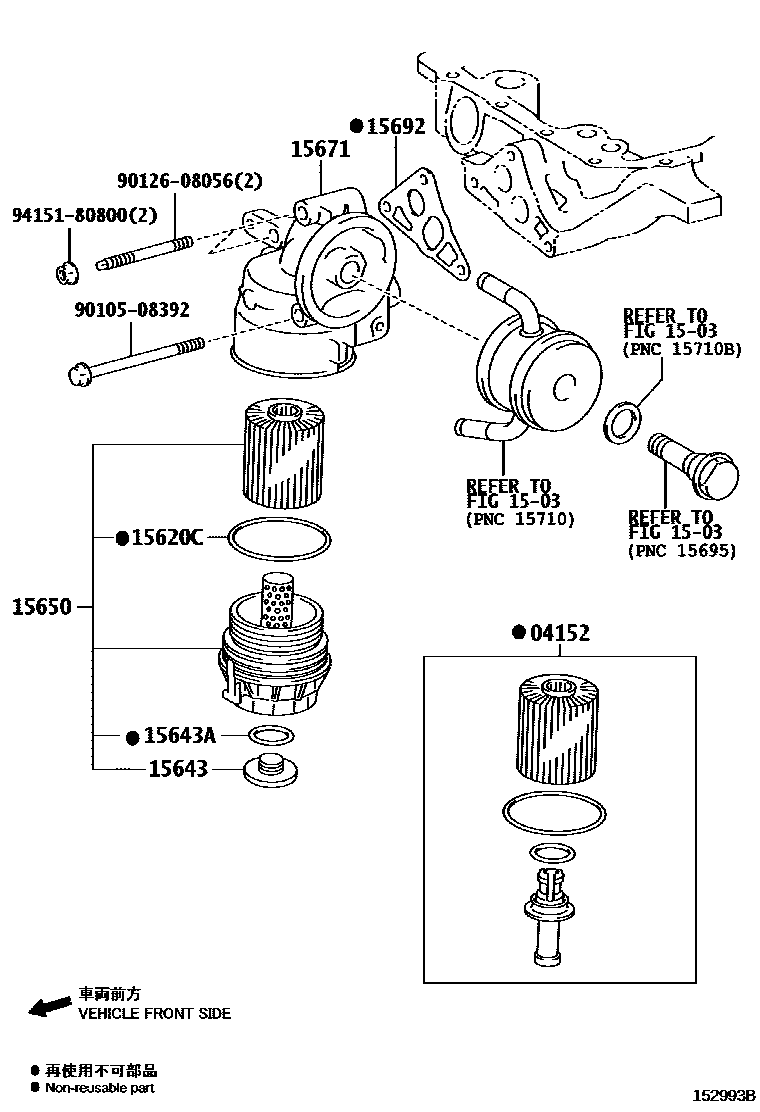

OIL FILTER

0001 1 0002 1 0003 1

04152ELEMENT KIT, OIL FILTER

main04152-38010i1GRFE..GRN28#200908-201908

1503

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i1GRFE..GRN28#200908-201908

15643PLUG, OIL FILTER DRAIN

main15643-31050i1GRFE..GRN28#200908-201908

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i1GRFE..GRN28#200908-201908

15650CAP ASSY, OIL FILTER W/ELEMEMT

main15650-38020i1GRFE..GRN28#200908-201908

15671BRACKET, OIL FILTER

main15671-31040i1GRFE..GRN28#200908-202011

main15671-31130i1GRFE..GRN28#202011

15692GASKET, OIL FILTER BRACKET

main15692-31030i1GRFE..GRN28#200908-201908

main15692-75011i2TRFE..TRN28#200911

9010508392

main90105-08392

9012608056

main90126-08056

9415180800

main94151-80800

11 parts on this diagram · 3 diagrams in section
