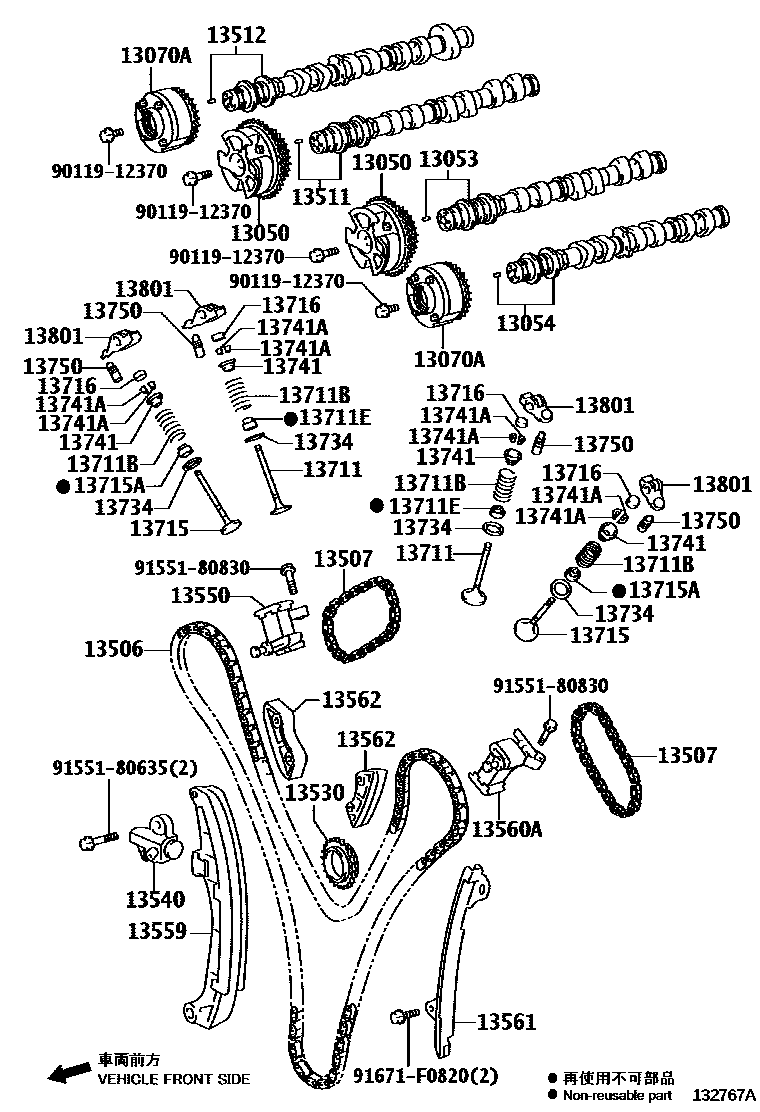

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13507CHAIN SUB-ASSY, NO.2
13511CAMSHAFT
13512CAMSHAFT, NO.2
W/O(MARK)
W(MARK)
13530SPROCKET ASSY, IDLE
13550TENSIONER ASSY, CHAIN, NO.2
13560ATENSIONER ASSY, CHAIN, NO.3
13562DAMPER, CHAIN VIBRATION, NO.2
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13711ESEAL, INTAKE VALVE STEM OIL
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13750ADJUSTER ASSY, VALVE LASH
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
9011912370
main90119-12370
9155180635
main91551-80635
9155180830
main91551-80830
91671F0820
main91671-F0820
30 parts on this diagram · 2 diagrams in section
