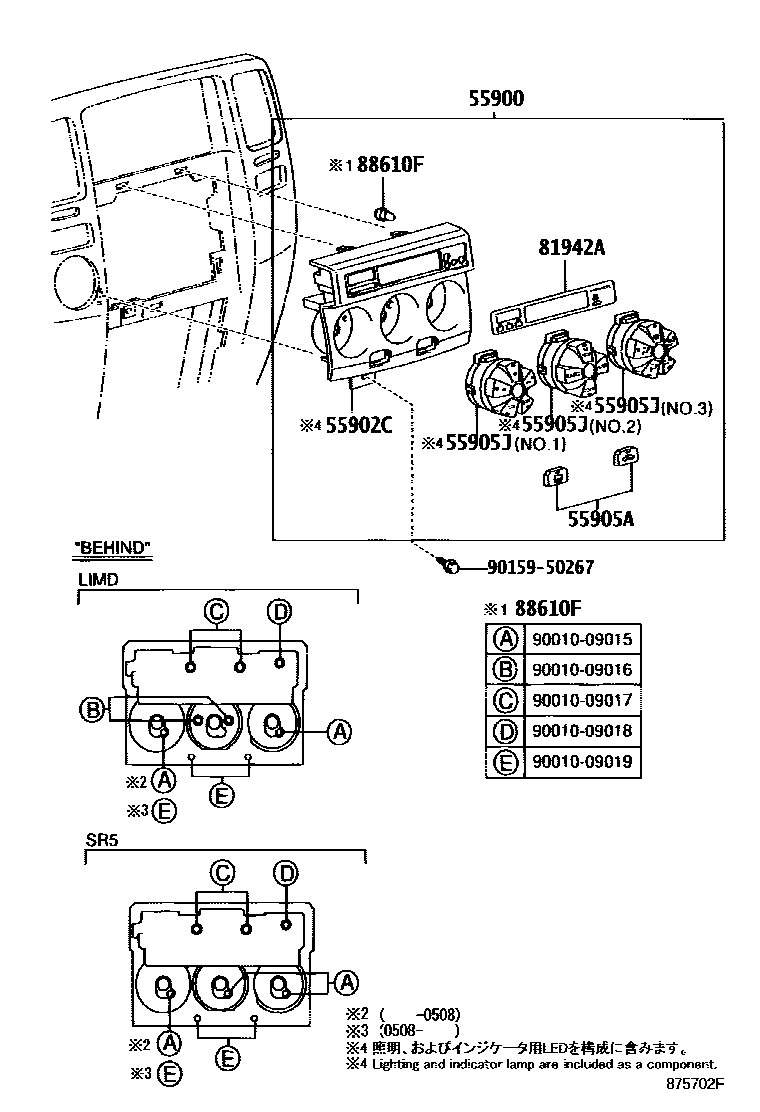

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

55900CONTROL ASSY, AIR CONDITIONER

main55900-35430supersedes 55900-35420iGRN21#,UZN21#..SR5200208-200408

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER)

main55900-35450supersedes 55900-35440iGRN21#,UZN21#..LIMD200208-200408

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER)

main55900-35480supersedes 55900-35470iGRN21#,UZN21#..SR5200408-200508

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER)

main55900-35500supersedes 55900-35490iGRN21#,UZN21#..LIMD200408-200508

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER)

main55900-35530supersedes 55900-35521iGRN21#,UZN21#..LIMD200508-200809

AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH)

main55900-35531supersedes 55900-35521iGRN21#,UZN21#..LIMD200810

AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH)

main55900-35560supersedes 55900-35551iGRN21#,UZN21#..SR5200508-200809

AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH)

main55900-35561supersedes 55900-35551iGRN21#,UZN21#..SR5200810

AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH)

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-35030supersedes 55902-35020iGRN21#,UZN21#..SR5200208-200408

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER)

main55902-35050supersedes 55902-35040iGRN21#,UZN21#..LIMD200208-200408

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER)

main55902-35080supersedes 55902-35070iGRN21#,UZN21#..SR5200408-200508

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER)

main55902-35100supersedes 55902-35090iGRN21#,UZN21#..LIMD200408-200508

AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER)

main55902-35130supersedes 55902-35121iGRN21#,UZN21#..LIMD200508-200810

AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH)

main55902-35131supersedes 55902-35121iGRN21#,UZN21#..LIMD200810

AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH)

main55902-35160supersedes 55902-35151iGRN21#,UZN21#..SR5200508-200810

AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH)

main55902-35161supersedes 55902-35151iGRN21#,UZN21#..SR5200810

AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH)

55905AKNOB, HEATER CONTROL

main55905-35340iGRN21#,UZN21#200508

55905JKNOB SUB-ASSY, CONTROL

main55905-35350iGRN21#,UZN21#..5FC200208-200508

NO.1

main55905-35360iGRN21#,UZN21#..5FC200208-200508

NO.3

main55905-35370iGRN21#..SR5200208-200408

NO.2

main55905-35380iGRN21#..LIMD200208-200408

NO.2

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-35010iGRN21#,UZN21#200208-200408

main81942-35020iGRN21#,UZN21#200408-200508

88610FBULB, COOLER CONTROL SWITCH

main90010-09015×2iUZN21#..LIMD;GRN21#..5FC..SR5;GRN21#..4FC..LIMD; UZN21#..SR5;GRN21#..4FC..SR5200208-200508

TYPE A:REFER ILLUST.

main90010-09016×2iGRN21#,UZN21#..LIMD200508-200810

TYPE B:REFER ILLUST.

main90010-09017×2iGRN21#,UZN21#200508

TYPE C:REFER ILLUST.

main90010-09018iGRN21#,UZN21#200508

TYPE D:REFER ILLUST.

main90010-09019×3iGRN21#200408-200508

TYPE E:REFER ILLUST.

9015950267

main90159-50267

7 parts on this diagram · 3 diagrams in section
