Toyota 671460 — RADIO RECEIVER & AMPLIFIER & CONDENSER

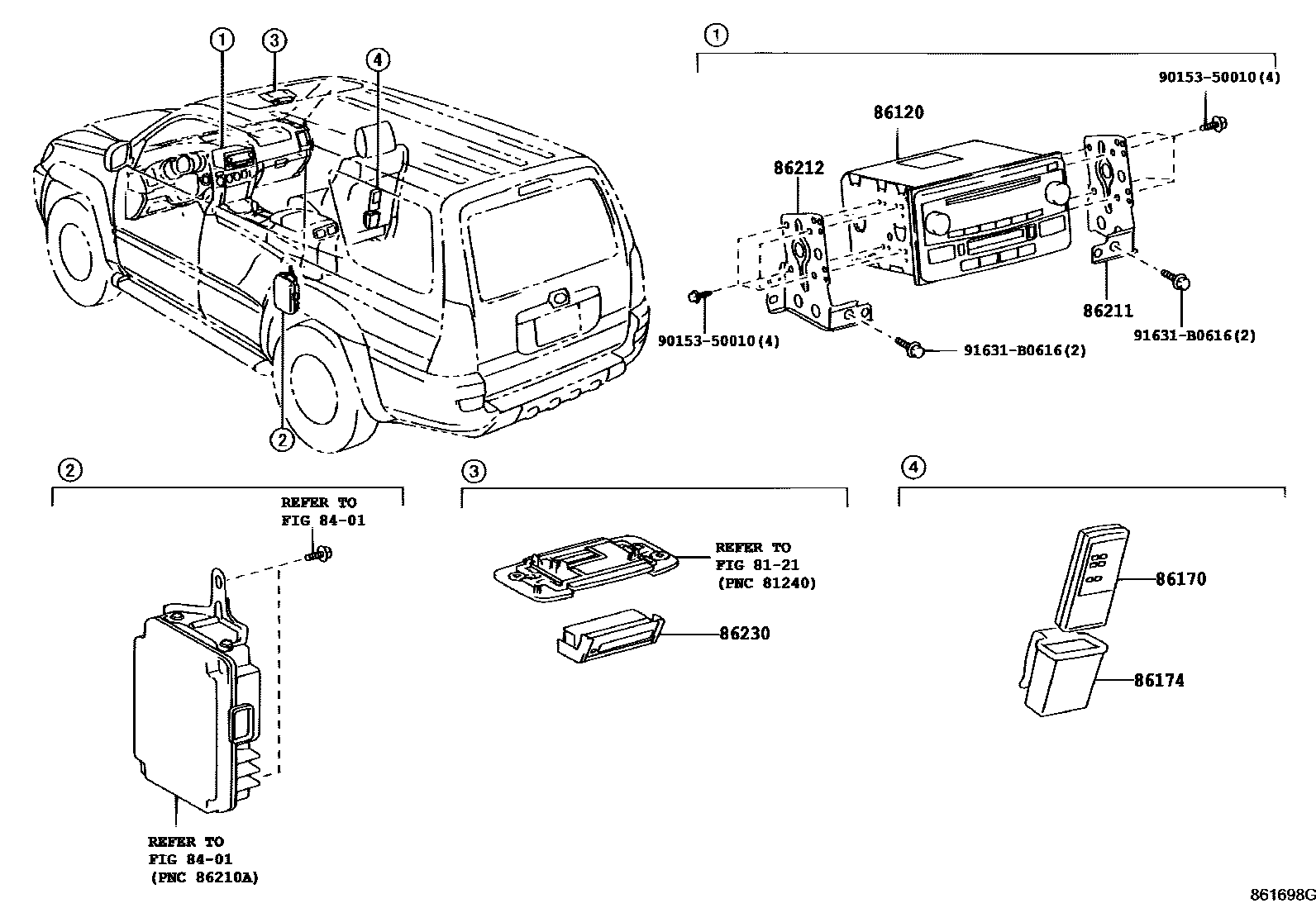

Parts diagram

8121INTERIOR LAMP

→ Go to FIG 81-21

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86120RECEIVER ASSY, RADIO

86170SWITCH AND VOLUME ASSY, RADIO

86174CASE, SWITCH & VOLUME

86211BRACKET, RADIO, NO.1

86212BRACKET, RADIO, NO.2

86230CONTROLLER ASSY, STEREO COMPONENT

9015350010

91631B0616

10 parts on this diagram · 3 diagrams in section

RADIO RECEIVER & AMPLIFIER & CONDENSER for Toyota 671460

This section contains 16 genuine Toyota parts for the RADIO RECEIVER & AMPLIFIER & CONDENSER system of the Toyota 671460. Key components include: INTERIOR LAMP, SWITCH & RELAY & COMPUTER, RECEIVER ASSY, RADIO, SWITCH AND VOLUME ASSY, RADIO, CASE, SWITCH & VOLUME.
