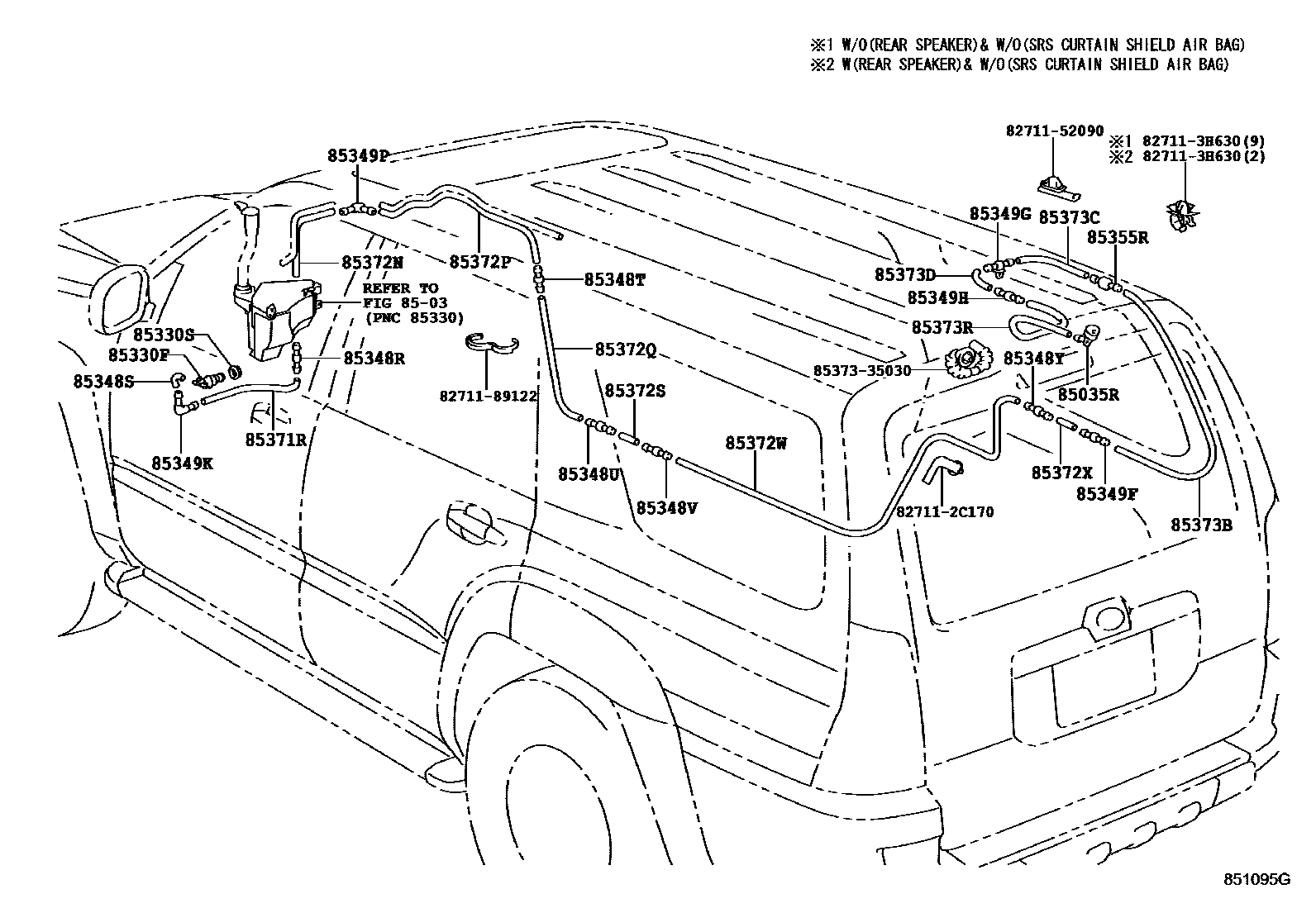

REAR WASHER
8503WINDSHIELD WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85348YJOINT, REAR WASHER HOSE, NO.5
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85355RVALVE, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=250); L=1450(*H,L=250),CANADA SPEC
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=1450(*H,L=210)
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=1450(*H,L=1000)
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=1800(*H,L=500)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=1450(*H,L=50)
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=3300(*H,L=3200)
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=1450(*H,L=50)
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
L=1800(*H,L=720)
85373CTUBE, REAR WASHER RUBBER
L=1800(*H,L=100)
85373DPIPE, REAR WASHER
L=1450(*H,L=50)
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1450(*H,L=310)
827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C170
827113H630WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3H630
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-52090
8271189122WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-89122
8537335030HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main85373-35030
32 parts on this diagram · 1 diagram in section
