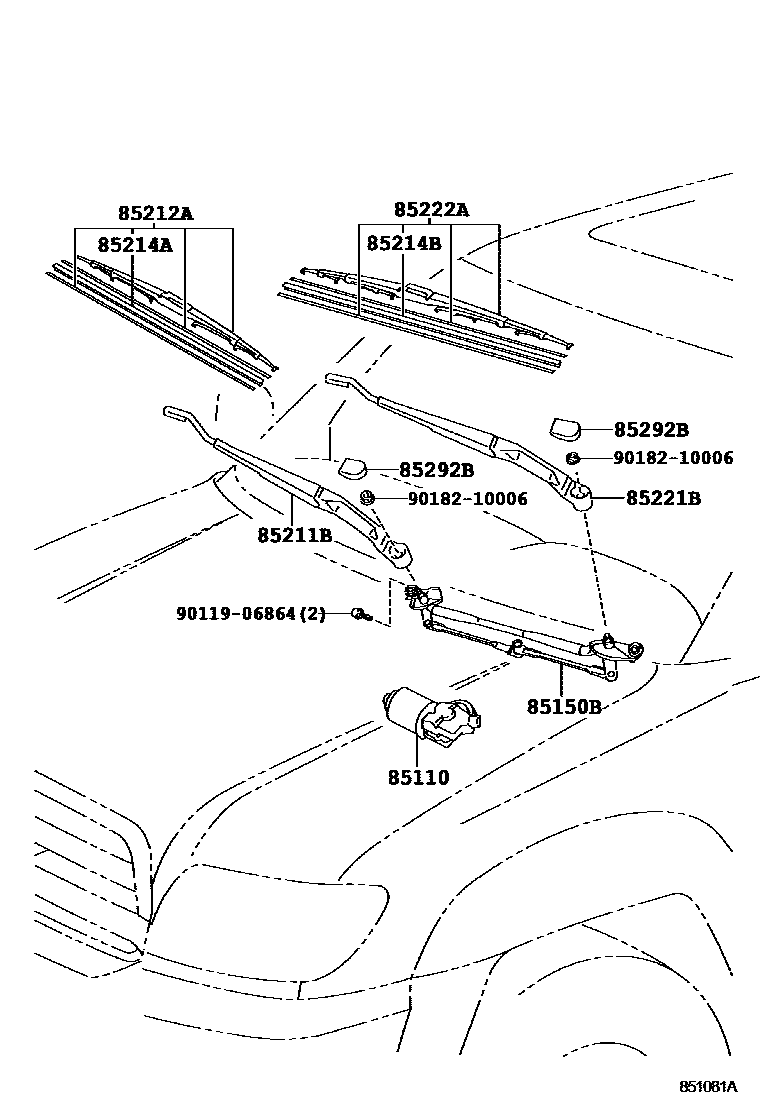

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-35290iGRN21#,UZN21#..5FC200208-200508

sub85110-1A040

85150BLINK ASSY, WIPER

main85150-35120iGRN21#200208-200508

85211BARM, FRONT WIPER, RH

main85211-35090iGRN21#,UZN21#..5FC200208-200508

85212ABLADE, FR WIPER, RH

main85212-53060iGRN21#200308-200605

sub85212-53061

main85212-53061iGRN21#,UZN21#200606

main85212-60110iGRN21#,UZN21#200208-200308

sub85212-53060

85214ARUBBER, WIPER, RH

main85214-24050iGRN21#,UZN21#200308-200606

sub85214-24051

main85214-24051iGRN21#,UZN21#200606

main85214-42020iGRN21#,UZN21#200208-200308

sub85214-24051

85214BRUBBER, WIPER, LH

main85214-48010iGRN21#200208-200508

85221BARM, FRONT WIPER, LH

main85221-35100iGRN21#,UZN21#200208-200508

85222ABLADE, FR WIPER, LH

main85222-35110iGRN21#,UZN21#200208-200308

sub85222-48040

main85222-48040iGRN21#200308-200508

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iGRN21#200208-200508

9011906864

main90119-06864

9018210006

main90182-10006

11 parts on this diagram · 1 diagram in section
