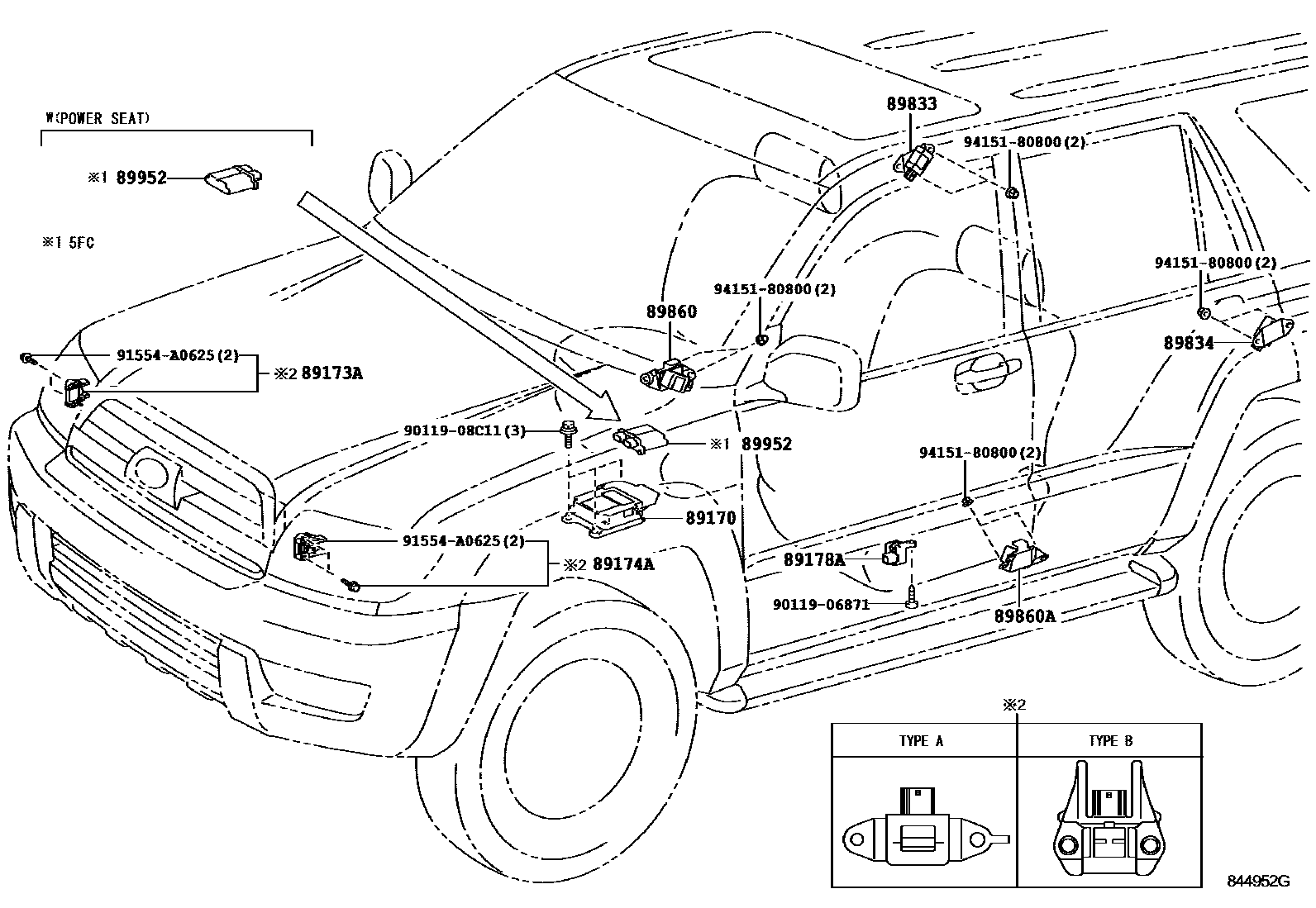

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-35160iGRN21#,UZN21#200208-200408

main89170-35210iGRN21#,UZN21#200408-200707

main89170-35221iGRN21#,UZN21#200707

89173ASENSOR, AIRBAG, FRONT RH

main89173-39335iGRN21#,UZN21#200208-200506

TYPE A:REFER ILLUST.

main89173-49405iGRN21#,UZN21#200506-200508

TYPE B:REFER ILLUST.

main89173-49405iGRN21#,UZN21#200508-200908

89174ASENSOR, AIRBAG, FRONT LH

main89173-39335iGRN21#,UZN21#200208-200506

TYPE A:REFER ILLUST.

main89173-49405iGRN21#,UZN21#200506-200508

TYPE B:REFER ILLUST.

main89173-49405iGRN21#,UZN21#200508-200908

89178ASENSOR, SEAT POSITION AIRBAG

main89178-0W010iGRN21#,UZN21#200208-200908

89833SENSOR, AIRBAG, REAR RH

main89833-35010iGRN21#,UZN21#200707

89834SENSOR, AIRBAG, REAR LH

main89834-35010iGRN21#,UZN21#200707

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-35010iGRN21#,UZN21#200707

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-35010iGRN21#,UZN21#200707

89952COMPUTER, OCCUPANT DETECTION

main89952-35011iGRN21#,UZN21#200408-200908

9011906871

main90119-06871

9011908C11

main90119-08C11

91554A0625

main91554-A0625

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section
