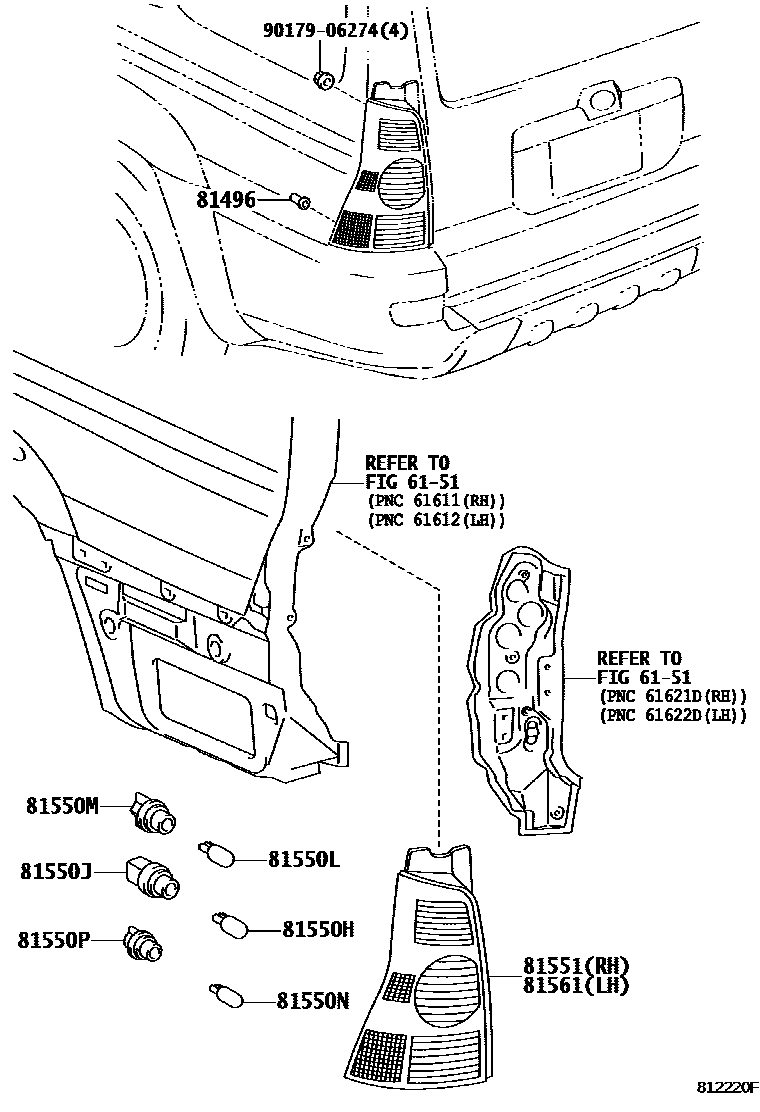

REAR COMBINATION LAMP

0001 1 0002 1

6151SIDE MEMBER

→ Go to FIG 61-51

81496GUIDE, REAR COMBINATION LAMP

main81496-12020×2iGRN21#200208-200408

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iGRN21#,UZN21#200208-200508

12V 21/5W

81550JSOCKET, TAIL & STOP LAMP

main90075-60018×2iGRN21#,UZN21#200208-200508

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iGRN21#,UZN21#200208-200508

12V 21W,AMBER

main90981-15021×2iGRN21#,UZN21#200508-200908

12V 21W,AMBER

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60057×2iGRN21#,UZN21#200208-200508

81550NBULB, BACK UP LAMP

main90981-11059×2iGRN21#,UZN21#200208-200508

12V 16W

81550PSOCKET, BACK UP LAMP

main90075-60035×2iGRN21#,UZN21#200208-200508

81551LENS, REAR COMBINATION LAMP, RH

main81551-35310iGRN21#200208-200408

main81551-35320iGRN21#,UZN21#200508

81561LENS, REAR COMBINATION LAMP, LH

main81561-35270iGRN21#200208-200408

main81561-35280iGRN21#,UZN21#200508

9017906274

main90179-06274

11 parts on this diagram · 2 diagrams in section
