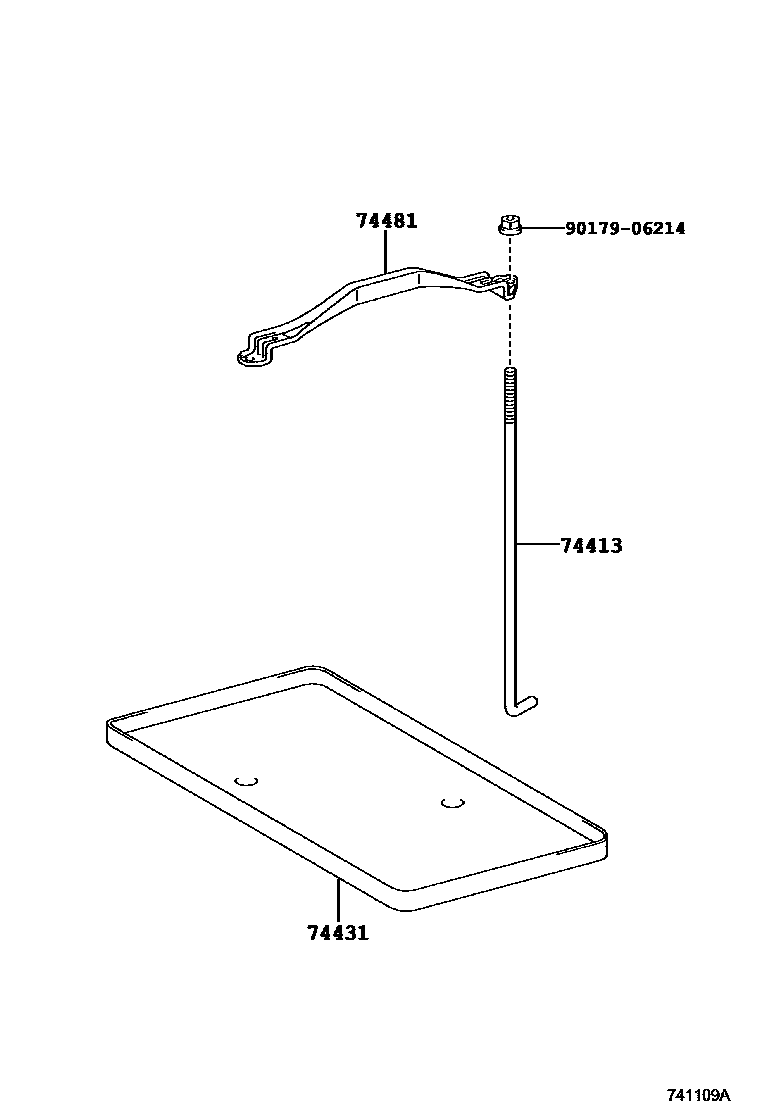

BATTERY CARRIER

74413BOLT, BATTERY CLAMP

main74451-30090iGRN21#200208-200408

L=180

main74451-35080iGRN21#,UZN21#..5FC200208-200508

L=236

main74451-35090iGRN21#,UZN21#200710

L=180

main74451-52070iGRN21#,UZN21#200710

L=236

74431TRAY, BATTERY

main74431-35040supersedes 74431-14030iGRN21#,UZN21#..5FC200208-200508

BATTERY SIZE-105D31L(US CA)

74481CLAMP, BATTERY HOLD DOWN

main74481-26020iGRN21#,UZN21#200508

9017906214

main90179-06214

4 parts on this diagram · 1 diagram in section
