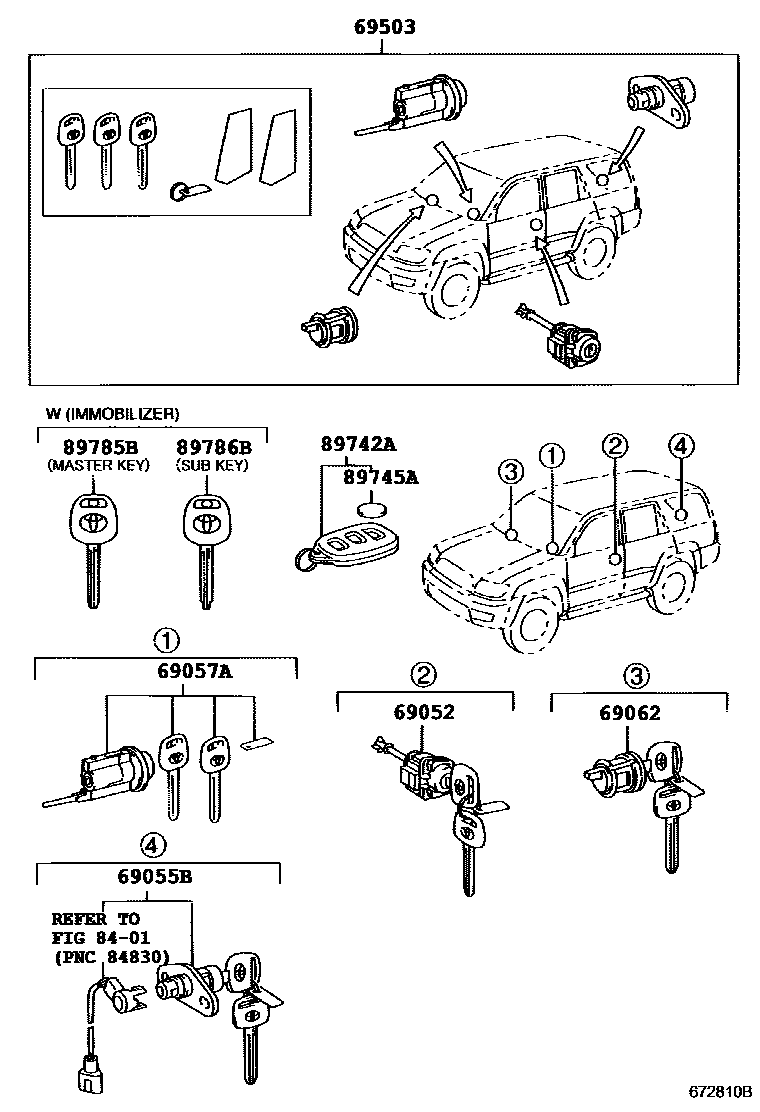

LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-35160iGRN21#200208-200508

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-35100iGRN21#200208-200908

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-35200iGRN21#,UZN21#200208-200508

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-60160iGRN21#200208-200508

69503CYLINDER SET, LOCK

main69005-3D050iGRN21#200208-200508

8401

89742ATRANSMITTER, DOOR CONTROL

main89742-35040iGRN21#,UZN21#200208-200408

sub89742-35050

main89742-35050iGRN21#,UZN21#200408-200508

89745ABATTERY, TRANSMITTER

main89745-50010iGRN21#,UZN21#200208-200908

sub89745-71010

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-60160iGRN21#200208-200508

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-60170iGRN21#200208-200508

BLANK KEY

10 parts on this diagram · 1 diagram in section
